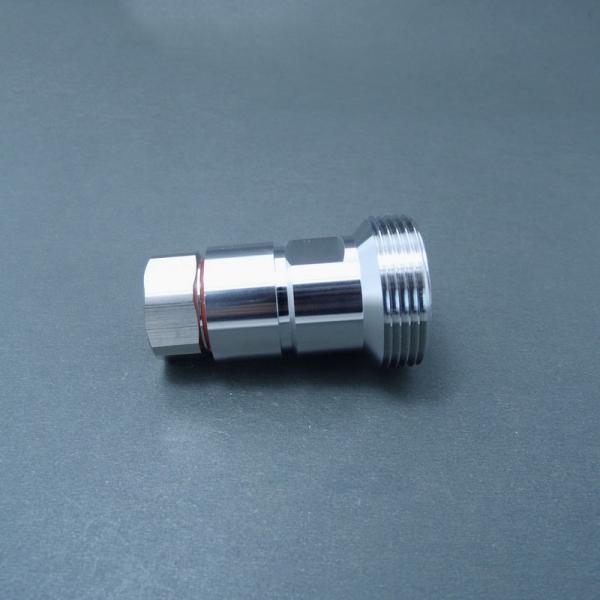

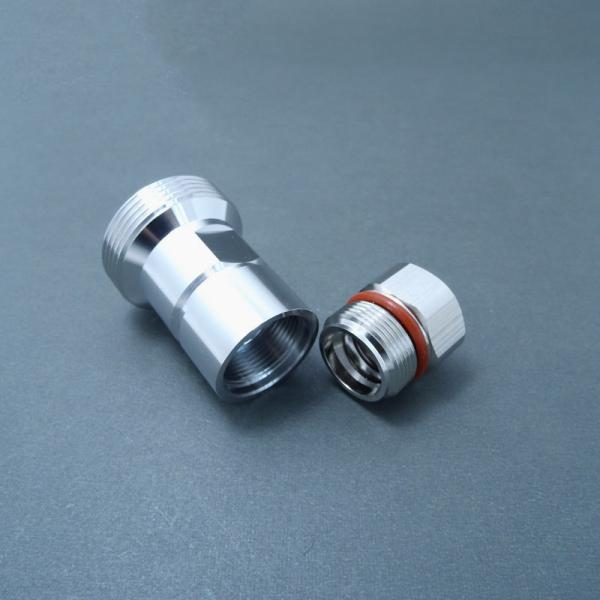

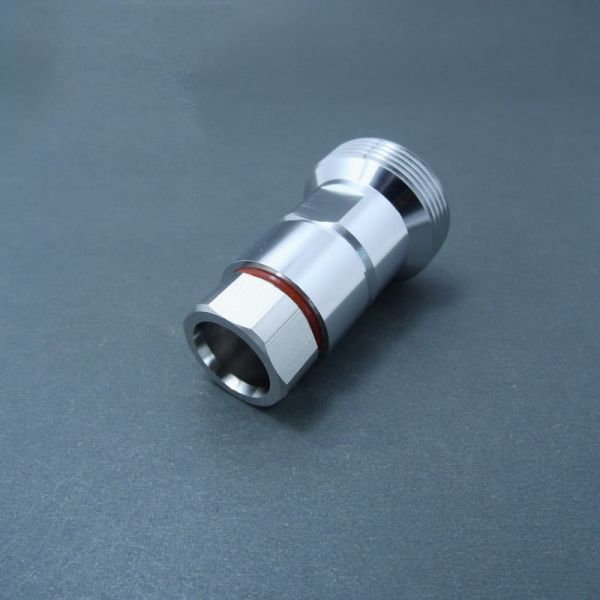

Jack Clamp RF Coaxial Connector 7/16 DIN Female Connector for 1/2'' Superflexible feeder Cable
Jack Clamp RF Coaxial Connector 7/16 DIN Female Connector for 1/2'' Superflexible feeder Cable
Jack Clamp RF Coaxial Connector 7/16 DIN Female Connector for 1/2'' Superflexible feeder Cable
Jack Clamp RF Coaxial Connector 7/16 DIN Female Connector for 1/2'' Superflexible feeder Cable
Jack Clamp RF Coaxial Connector 7/16 DIN Female Connector for 1/2'' Superflexible feeder Cable
Jack Clamp RF Coaxial Connector 7/16 DIN Female Connector for 1/2'' Superflexible feeder Cable
Specifications
Brand Name :
ZD
Model Number :
ZD-CN-DF-CF12S
Certification :
RoHS
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Supply Ability :
10000pcs per month
Frenquency :
DC-3GHz
VSWR :
1.10:1
PIM3 :
-155dBc
Material :
Brass and
Impedance :
50Ohm
Connector type :
Din Female Connector
Description
RF Coaxial Connector 7/16 DIN Female for 1/2'' Superflexible Cable
Model No. ZD-CN-DF-CF12S
Interface IEC 60169-4;DIN-47223;CECC-22190
Electrical
Characteristic Impedance 50ohm
Frequency Range DC-3GHz
VSWR ≤1.20@DC-3000MHz
3rd Order IM (PIM3) ≤ -155dBc@2×20W
Dielectric Withstanding Voltage ≥4000V RMS,50Hz,at sea level
Dielectric Resistance ≥10000MΩ
Contact Resistance Center Contact ≤0.4mΩ Outer Contact ≤1 mΩ
Mating M29*1.5 threaded coupling
Mechanical
Durability Mating cycles ≥500
Material and Plating
Parts Name Material Plating
Body Brass Tri-Alloy(CuZnSn)
Insulator PTFE —
Inner Conductor Phosphor Bronze Ag
Gasket Silicone Rubber —
Cable Clamp Brass Tri-Alloy(CuZnSn)
Ferule — —
Environmental
Operating Temperature -45 ℃-85 ℃
Weatherproof Rate IP67
RoHs (2002/95/EC) Compliant by exemption
Suitable Cable Family Andrew Cable P/N FSJ4-50B and RFS Cable P/N:SCF12-50

Jack Clamp RF Coaxial Connector 7/16 DIN Female Connector for 1/2'' Superflexible feeder Cable

Jack Clamp RF Coaxial Connector 7/16 DIN Female Connector for 1/2'' Superflexible feeder Cable

Jack Clamp RF Coaxial Connector 7/16 DIN Female Connector for 1/2'' Superflexible feeder Cable
