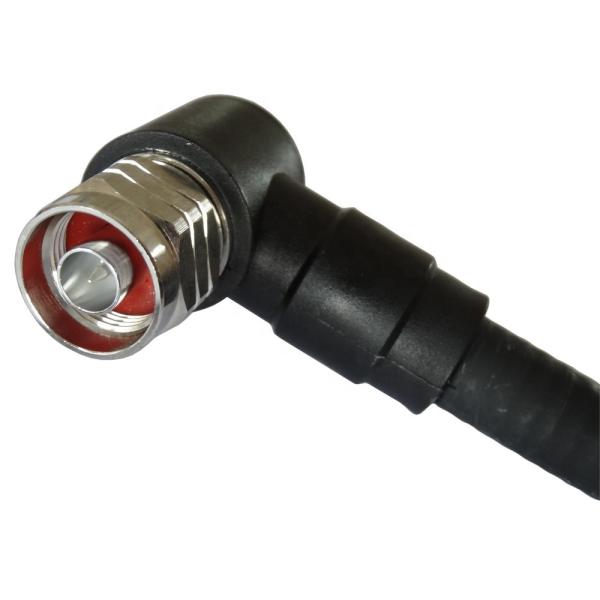

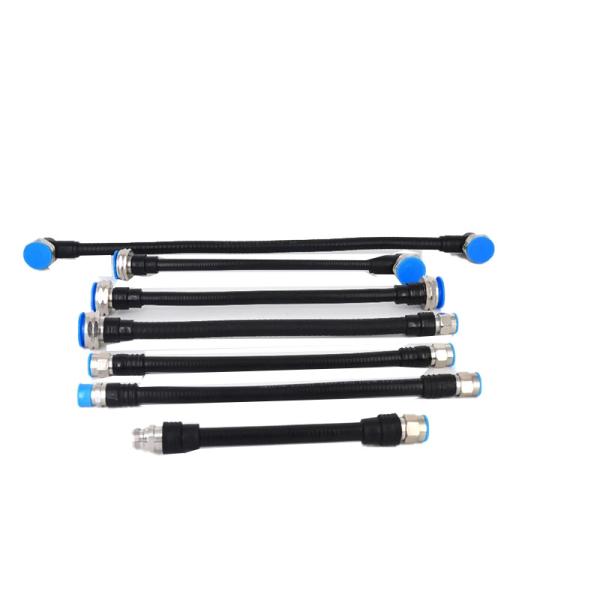

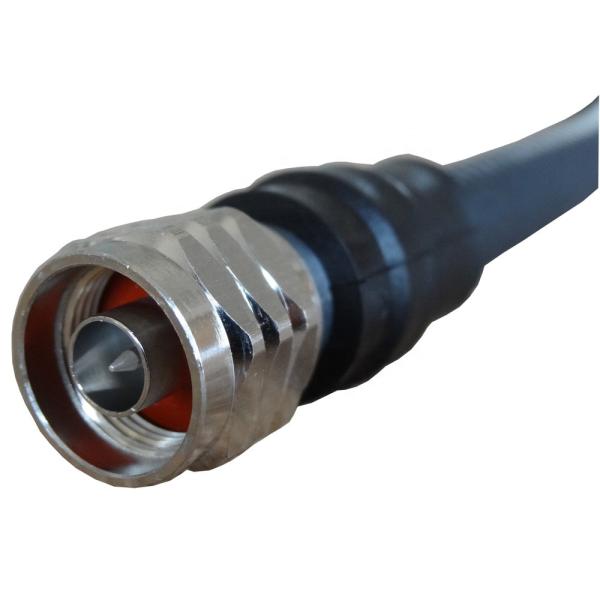

1 m RF jumper cable n male to n male right angle connector with 1/2 flexible cable
1 m RF jumper cable n male to n male right angle connector with 1/2 flexible cable
1 m RF jumper cable n male to n male right angle connector with 1/2 flexible cable
1 m RF jumper cable n male to n male right angle connector with 1/2 flexible cable
1 m RF jumper cable n male to n male right angle connector with 1/2 flexible cable
1 m RF jumper cable n male to n male right angle connector with 1/2 flexible cable
Specifications
Brand Name :
ZD
Model Number :
ZD-JC-1M-NM/NMR
Certification :
Rohs
Place of Origin :
china
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000pcs per week
Delivery Time :
5-8 work days
Packaging Details :
0.5m,1m,2m,3m,6m length per bag
Cable length :
0.5m,1m,2m,3m,6m length,customized
Connector :
N male to N male right angle
Material :
Copper conductor
Inner Conductor Pin :
Brass
Impedance :
50 Ω
Insulation Resistan :
≥5000MΩ
Description

1 m RF jumper cable n male to n male right angle connector with 1/2 flexible cable

It is used for transmitting and receiving as the main feeder or sub-feeder in mobile communication systerm. It can also be used in other elictronic decives to transmitting high-frequency signal as low-loss transmission line.

Electrical
1 Characteristic Impedance 50ohm
2 Frequency Range DC-6GHz
3 VSWR ≤1.15
4 Dielectric withstanding voltage ≥2500RMS,50Hz,at sea level
5 Dielectric Resistance ≥5000MΩ
6 Contact Resistance Outer Contact≤1.0mΩ ;Center Contact≤1.0mΩ
Mechanical
1 Durability Mating cycles ≥500
Material and plating
Description Material Plating
1 Body Brass Tri-alloy
2 Insulator PTFE –
3 Center conductor Phosphor bronze Ag
4 O-ring Silicone rubber –
5 Other Brass Ni
Environmental
1 Temperature Range -40℃~+85℃
2 Watertightness IP67
3 RoHS compliant Pass
4 Salt-fog Test 96 hours
Inspection

1.CNC machines ,advanced test equipment

2.All products are suit for ROHS.

3.ISO14001 certificate,ISO9001 certificate

1 m RF jumper cable n male to n male right angle connector with 1/2 flexible cable1 m RF jumper cable n male to n male right angle connector with 1/2 flexible cable
