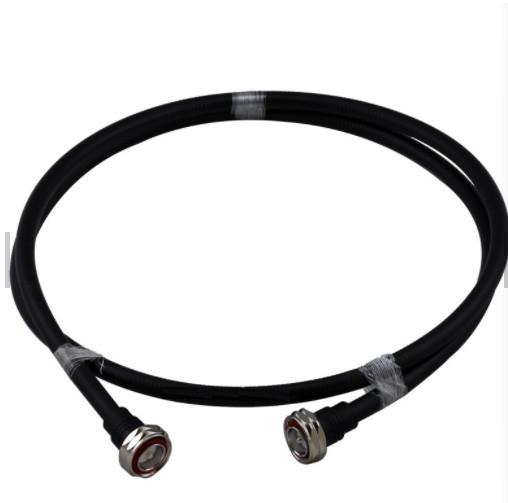

3 meter 1/2" superflex with 7/16 Male DIN Connector Jumper cable

Specification:
1 RF coaxial connector:
1.1 Material and Plating
Inner conductor: brass, plated with silver, Plating thickness: ≥0.003mm
Insulation dielectric: PTFE
Outer conductor: brass, plated with ternary alloy, Plating thickness≥0.002mm
1.2 Electrical & Mechanic Feature
Characteristics impedance: 50Ω
Frequency range: DC-3GHz
Dielectric strength: ≥2500V
Contact resistance: inner conductor≤1.0mΩ, Outer conductor≤0.4mΩ
Insulator resistance: ≥5000MΩ (500V DC)
VSWR: ≤1.15 (DC-3GHz)
PIM: ≤-155dBc@2x43dBm
Connector durability: ≥500 cycles
2 RF coaxial cable: 1/2” Super Flexible RF Cable
2.1 Material
Inner conductor: aluminum wire covered with copper (φ3.60mm)
Insulation dielectric: polyethylene foam (φ8.90mm)
Outer conductor: corrugated copper tube (φ12.20mm)
Cable jacket: PE (φ13.60mm)
2.2 Feature
Characteristics impedance: 50Ω
Standard capacitor: 80pF/m
Transmission rate: 83%
Min. single bending radius: 50mm
Tensile strength: 700N
Insulation resistance: ≥5000MΩ
Shielding attenuation: ≥120dB
VSWR: ≤1.15 (0.01-3GHz)
3 Jumper cable
3.1 Cable Component Size:
Total length of cable assemblies:
1000mm±10
2000mm±20
3000mm±25
5000mm±40
3.2 Electrical feature
Frequency Band: 800-2700MHz
Characteristics Impedance: 50Ω±2
Operating Voltage: 1500V
VSWR: ≤1.11 (0.8-2.2GHz), ≤1.18 (2.2-2.7GHz)
Insulation voltage: ≥2500V
Insulation resistance: ≥5000MΩ (500V DC)
PIM3: ≤-150dBc@2x20W
Insertion Loss:

Mechanical Shock Test Method: MIL-STD-202, Method 213, Test Condition I
Moisture Resistance Test Method: MIL-STD-202F, Method 106F
Thermal Shock Test Method: MIL-STD-202F, Method 107G, Test Condition A-1
3.3. Environment feature
Waterproof: IP68
Operation temperature range: -40°C to +85°C
Storage temperature range: -70°C to +85°C
