9 Dbi Detachable Beem Extream Outdoor Directional Antenna , CDMA Uhf Outdoor Tv Antenna
9 Dbi Detachable Beem Extream Outdoor Directional Antenna , CDMA Uhf Outdoor Tv Antenna
Specifications
Brand Name :
ZD
Model Number :
ZD-YA-0112
Certification :
ISO9001,IEC,UL,CE,RoHS,TLC
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 pcs per month
Delivery Time :
2 weeks
Frequency :
824-960 MHz
F/B ratio :
≥18 dB
Dimension :
0.66 M
Nominal Impedance :
50 Ω
Mounting Kits :
100W
Lightning protection :
U bolts
Description

outdoor directional CDMA high gain uhf 12 dbi Detachable beem extream long range yagi antenna with male or cuotomized

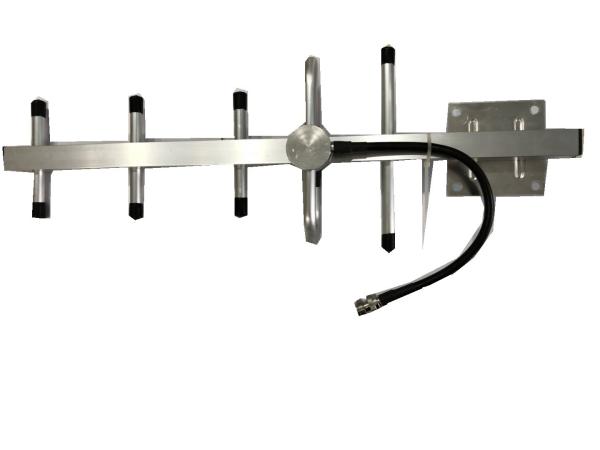

The OBM-9NK-82/96, 824-960MHz Yagi Antenna , is a wide-band multi-frequency directional style antenna designed for indoor and outdoor use that covers from 824 to 960 MHz.This antenna is useful for cellular, PCS and Wi-Fi applications. It is frequently used in cellular repeater or amplifier applications.

ELECTRICAL
Model OBM-9NK-82/96
Frequency Range 824-960 MHz
Bandwidth 136 MHz
Gain 12 dBi
Beamwidth H: 30 °E: 30 °
F/B ratio ≥18 dB
VSWR ≤1.5
Polarization Horizontal or Vertical
Max power 100 W
Nominal Impedance 50 Ω
MECHANICAL
Connector­­­ SMA male or customized
Dimension 0.66 M
Weight 1 KG
Element 8
Material Aluminum Alloy
Rated Wind Velocity 60 m/s
Mounting Kits U bolts

9 Dbi Detachable Beem Extream Outdoor Directional Antenna , CDMA Uhf Outdoor Tv Antenna
