Specifications
Brand Name :
SUNTECHMACH
Model Number :
as per details
Certification :
ISO9001
Place of Origin :
ZHEJIANG, CHINA
MOQ :
1set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10000PCS/MONTH
Delivery Time :
20days
Packaging Details :
Wooden case
Name :
Pipe beveling machine
Range :
80mm-820mm
Driven motor :
Pneumatic and Electric, Servo motor andHydraulic optional
Power :
1.43kw
Description

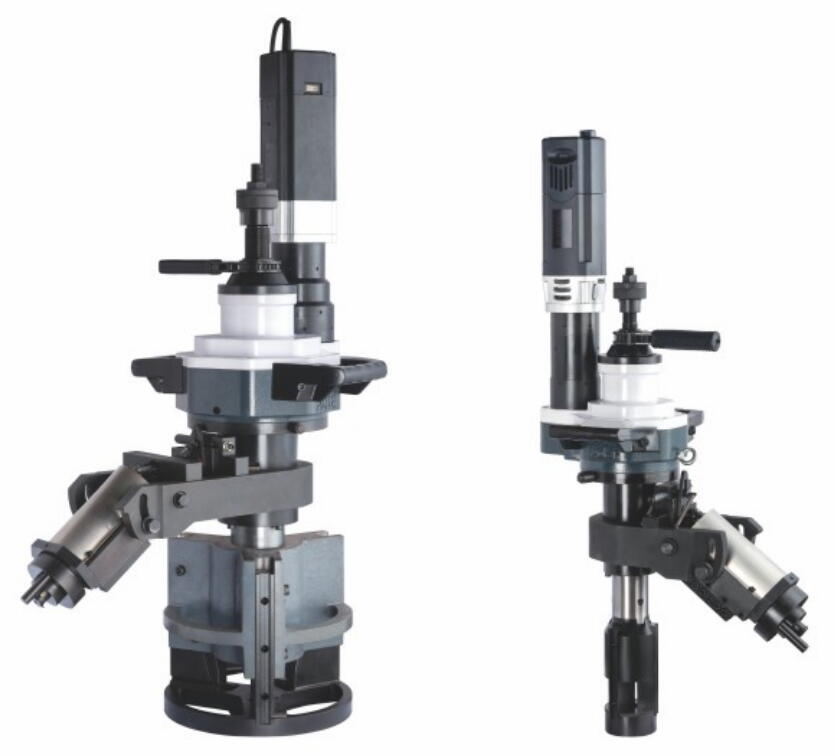

Automatically Feed Mechanism Pipe Beveling Machine Used Forbeveling Thick Pipe And Prepare For Weldingflange Faces

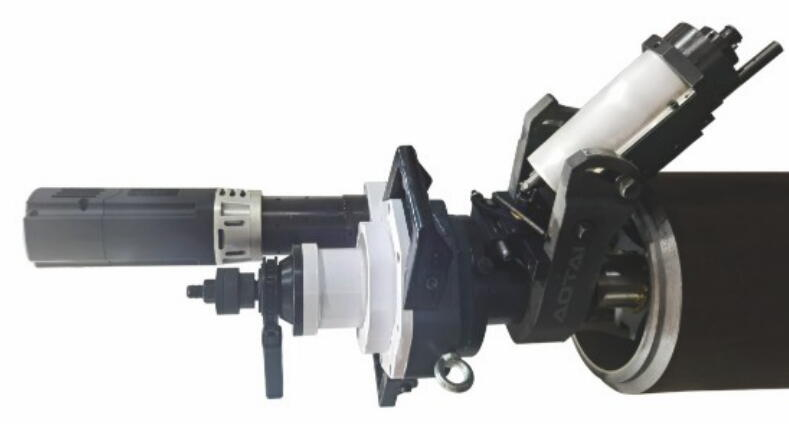

This machine adopts automatically feed mechanism, and the bevel angel can be adjustable. The machine can be used for beveling thick pipe and prepare for welding flange faces. With the special structure designing, the tool stroke can be fine-tuming. Auto-feeding and Manual - feeding can be easily and freely chosen.

FEATURES

Tool stoke can be fine-turing

Beveling angel adjustable 0°-37°

Manual feed and Automatic feed optional

Beveling shape: U, Single-V, double-V,Jbeveling
4 model, range for pipe ID: 80mm-820mm

Pneumatic and Electric, Servo motor andHydraulic optional

Technical Parameter
Model Working Range thickness Power Rotation
Electric Pneumatic ID mm mm kw rpm
ISY-250-II TCM-250-II φ80-240 ≤75 1.43 16
ISY-351-II TCM-351-Ⅱ φ150-330 ≤75 1.43 10
ISY-630-II TCM-630-Ⅱ φ300-600 ≤75 2 8
ISY-850-II TCM-850-II φ600-820 ≤75 2 7

POWER SUPPLIES:

Electric: 1.43kw 2.0kw@220~230V 50~60Hz,1P

Pneumatic: 1500~2000L/ min@0.63~0.8MPa

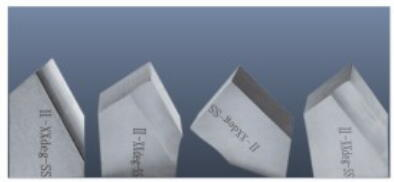

Material: M42

size: 30*45*12mm,

Angle: 30°

Automatically Feed Mechanism Pipe Beveling Machine Used Forbeveling Thick Pipe And Prepare For Weldingflange Faces

Automatically Feed Mechanism Pipe Beveling Machine Used Forbeveling Thick Pipe And Prepare For Weldingflange Faces
