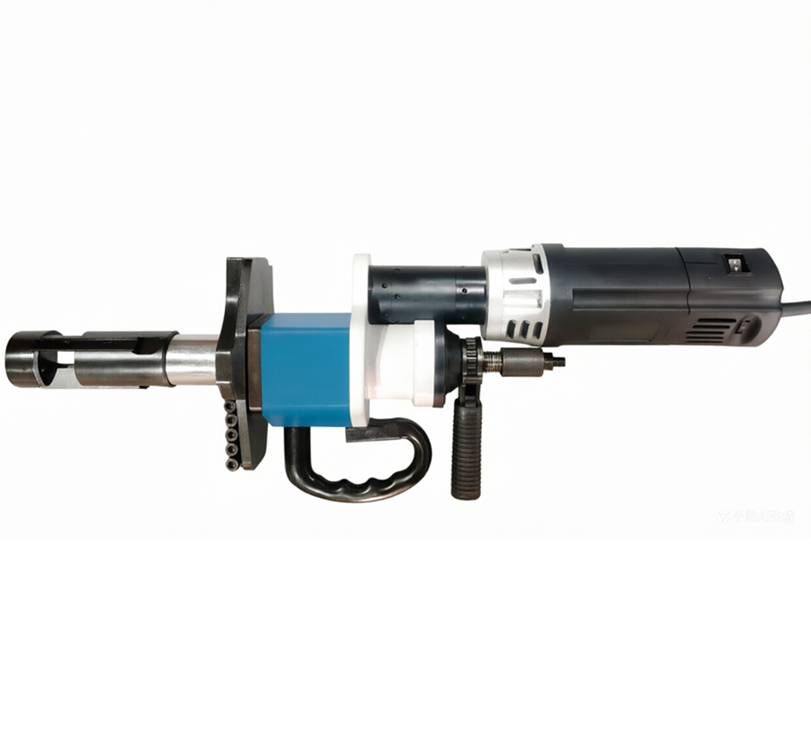

Y-Pipe Beveling Machine For Bevel All Type Of Pipe Ends, Pressure Vessel And Flanges On Site
Y-Pipe Beveling Machine For Bevel All Type Of Pipe Ends, Pressure Vessel And Flanges On Site
Y-Pipe Beveling Machine For Bevel All Type Of Pipe Ends, Pressure Vessel And Flanges On Site
Y-Pipe Beveling Machine For Bevel All Type Of Pipe Ends, Pressure Vessel And Flanges On Site
Y-Pipe Beveling Machine For Bevel All Type Of Pipe Ends, Pressure Vessel And Flanges On Site
Y-Pipe Beveling Machine For Bevel All Type Of Pipe Ends, Pressure Vessel And Flanges On Site
Y-Pipe Beveling Machine For Bevel All Type Of Pipe Ends, Pressure Vessel And Flanges On Site
Y-Pipe Beveling Machine For Bevel All Type Of Pipe Ends, Pressure Vessel And Flanges On Site
Specifications
MOQ :
1set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10000PCS/MONTH
Delivery Time :
20days
Packaging Details :
Wooden case
Brand Name :
SUNTECHMACH
Model Number :
as per details
Certification :
ISO9001
Place of Origin :
ZHEJIANG, CHINA
Name :
Pipe beveling machine
Range :
60mm-820mm
Driven motor :
Pneumatic and Electric
Power :
1.43kw
Description
Y-Pipe Beveling Machine For Bevel All Type Of Pipe Ends, Pressure Vessel And Flanges On Site

This machine can face and bevel all type of pipe ends, pressure vessel and flanges. it adopts“Y” design to realize the minimal radial working space. With the light weight.it is portable and can be used on-site working situation. It is applicable to end face machining of various grades of metal pipes, such as carbon steel, stainless steel and alloy steel. It is widely applied in heavy type pipe lines.

Feature
  • ID mounted, adopt Y structure beveling shape: U, Single-V, double-V, J beveling
  • Processing for repairing inner wall and deep hole.
  • Working range: 60-820mm
  • Driven motor: Pneumatic and Electric
Technical Parameter
Electric Model Pneumatic Model Working Range (ID mm) Thickness (mm) Power (kw) Rotation (rpm)
ISY-150 TCM-150 φ60-170 ≤15 1.43 30
ISY-250 TCM-250 φ80-240 ≤15 1.43 16
ISY-351 TCM-351 φ150-330 ≤15 1.43 10
ISY-457 TCM-457 φ250-430 ≤15 1.43 9
ISY-630 TCM-630 φ300-600 ≤15 1.43 8
ISY-850 TCM-850 φ600-820 ≤15 2 7

Power supplies

Electric: 1.43kw 2.0kw@220~230V 50~60Hz,1P

Pneumatic: 1500~2000L/ min@0.63~0.8MPa

Y-Pipe Beveling Machine For Bevel All Type Of Pipe Ends, Pressure Vessel And Flanges On Site

Material: M42, M35, W6

size: 20*40*8 mm,

Angle: 0°, 30°, 37°,- 15°

Y-Pipe Beveling Machine For Bevel All Type Of Pipe Ends, Pressure Vessel And Flanges On Site

Tool holder: 40Cr

Insert: Carbide

size:20*40*8 mm

Angle: 0°, 30°, 37°

Y-Pipe Beveling Machine For Bevel All Type Of Pipe Ends, Pressure Vessel And Flanges On Site
