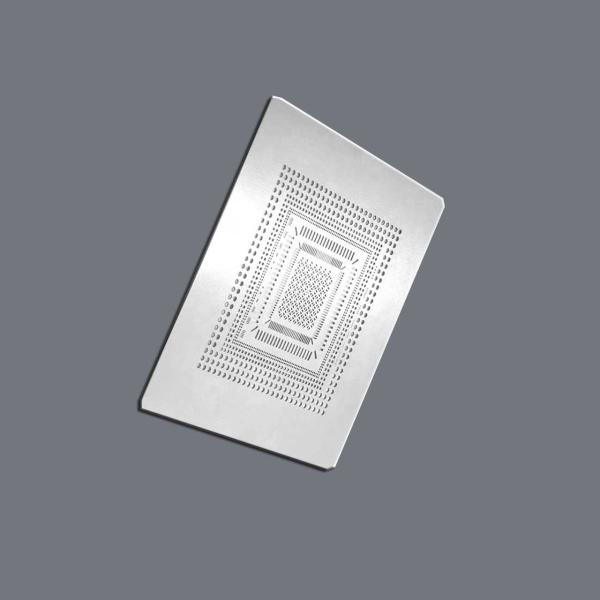

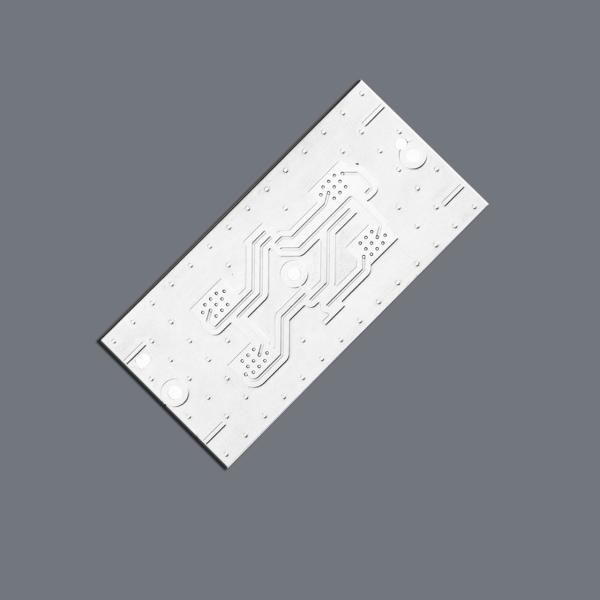

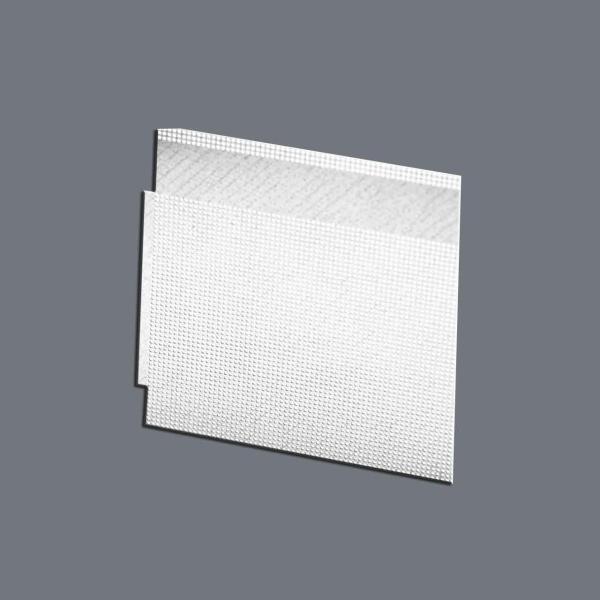

OEM Chemical Etching Printed Circuit Heat Exchanger for Hydrogen Energy
OEM Chemical Etching Printed Circuit Heat Exchanger for Hydrogen Energy
OEM Chemical Etching Printed Circuit Heat Exchanger for Hydrogen Energy
OEM Chemical Etching Printed Circuit Heat Exchanger for Hydrogen Energy
OEM Chemical Etching Printed Circuit Heat Exchanger for Hydrogen Energy
OEM Chemical Etching Printed Circuit Heat Exchanger for Hydrogen Energy
OEM Chemical Etching Printed Circuit Heat Exchanger for Hydrogen Energy
OEM Chemical Etching Printed Circuit Heat Exchanger for Hydrogen Energy
Specifications
Brand Name :
XHS/Customize
Model Number :
Customize
Certification :
ISO 9001, ISO 14001, IATF 16949
Place of Origin :
China
MOQ :
10
Price :
can be negotiated
Payment Terms :
T/T
Supply Ability :
10000-100000PCD / week
Delivery Time :
5-10 work days
Packaging Details :
5-10 work days
Material :
SUS301, SUS304, SUS316
Application :
Hydrogen Energy
Processing Technology :
Photo Chemical Etching
MOQ :
can be negotiated
Size :
Customizable
Description

OEM Chemical Etching Printed Circuit Heat Exchanger for Hydrogen Energy


PCHE Overview

Xinhaisen Technology specializes in manufacturing high-efficiency Printed Circuit Heat Exchangers (PCHE) through advanced chemical etching technology. Our PCHEs deliver superior thermal performance with compact designs, ideal for extreme-pressure and high-temperature applications in energy, aerospace, and chemical processing industries.

PCHE Specification

Parameter

Specification

Material

316L Stainless Steel, Titanium, Nickel Alloys,etc.

Surface Roughness

(Ra) ≤1.6μm (as-etched), ≤0.4μm (polished)

Temperature Range

-200°C to +900°C (material dependent)

Heat Transfer Efficiency

Heat Transfer Efficiency

Plate Thickness

0.5mm - 5.0mm

OEM Chemical Etching Printed Circuit Heat Exchanger for Hydrogen Energy

Quality Assurance

·Non-Destructive Testing :

·100% X-ray inspection (ASTM E2866)

·Dye penetrant testing (ISO 3452)

·Performance Validation :

·Thermal cycling (1000+ cycles)

·Hydrostatic pressure testing (per ASME Section VIII)

PCHE Applications

·Supercritical CO₂ power cycles

·LNG heat exchangers

·Nuclear reactor cooling

·Aerospace thermal management

Why Choose Xinhaisen?

·Micron-Level Precision – Achieve complex micro-channel geometries

·Material Expertise – Process exotic alloys with tight tolerances

·Turnkey Solutions – From CFD optimization to final assembly

·Cost Efficiency – 40% savings vs. machined alternatives

Welcome to contact!
