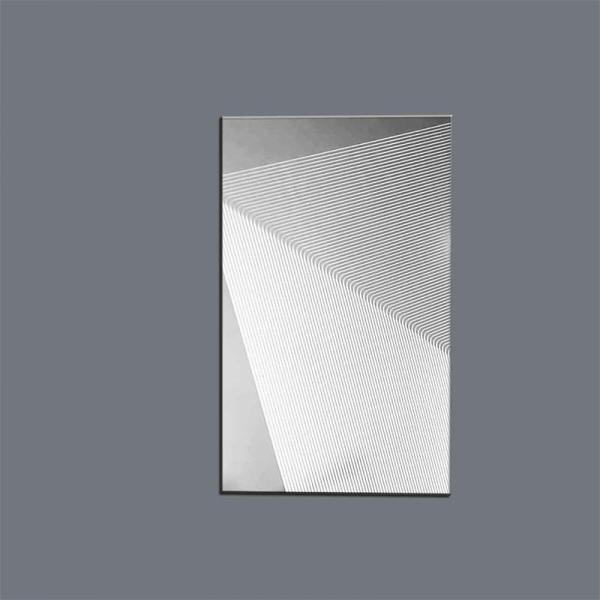

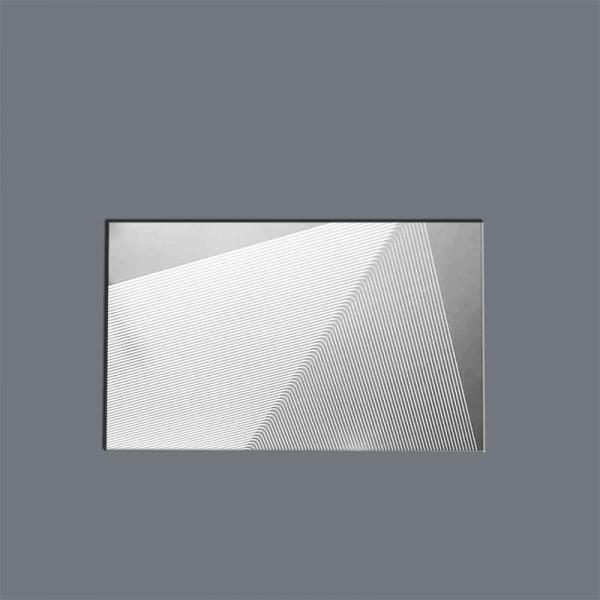

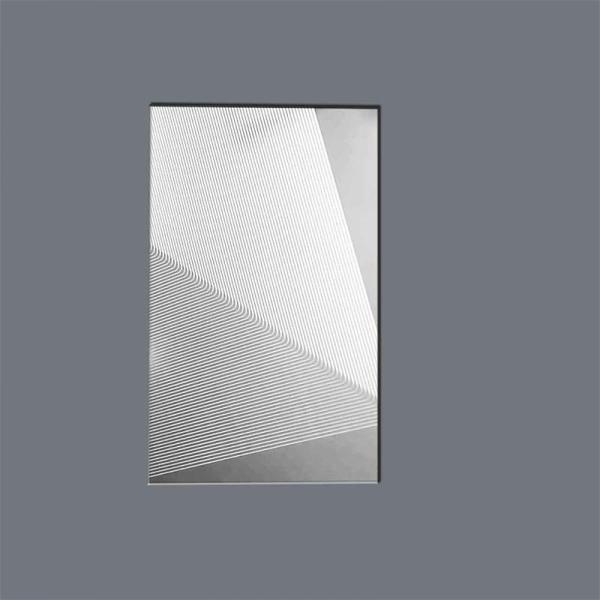

Chemical Etching Printed Circuit Heat Exchanger with High Precision
Chemical Etching Printed Circuit Heat Exchanger with High Precision
Chemical Etching Printed Circuit Heat Exchanger with High Precision
Chemical Etching Printed Circuit Heat Exchanger with High Precision
Chemical Etching Printed Circuit Heat Exchanger with High Precision
Chemical Etching Printed Circuit Heat Exchanger with High Precision
Specifications
Brand Name :
XHS/Customize
Model Number :
Customize
Certification :
ISO 9001, ISO 14001, IATF 16949
Place of Origin :
China
MOQ :
30
Price :
50-100USD
Payment Terms :
T/T
Supply Ability :
10000-100000PCD / week
Delivery Time :
5-10 work days
Packaging Details :
PE bags and Carton
Size :
Customizable
Operating Temperature Range :
-50°C to 200°C
Application :
Heat transfer in various industries
Heat Transfer Area :
Varies depending on design
Corrosion Resistance :
High
Customization Options :
Available
Efficiency :
High
Description

Chemical Etching Printed Circuit Heat Exchanger with High Precision


PCHE Overview

Xinhaisen's chemically etched PCHEs represent the next generation of compact heat exchangers, delivering unmatched thermal performance in critical applications. Utilizing our proprietary photochemical etching technology, we create complex micro-channel patterns that achieve superior heat transfer efficiency while maintaining exceptional pressure resistance.


PCHE Key Features
·Ultra-high efficiency
·Extreme pressure capability
·Compact & lightweight
·Corrosion resistant
·Custom flow designs


PCHE Specification

Parameter Specification
Materials 316L SS, Titanium, etc.
Operating Temperature -200°C to +900°C
Operating Pressure Up to 600 bar
Tolerance +/-0.01mm
Plate Thickness 0.5mm - 5.0mm

Chemical Etching Printed Circuit Heat Exchanger with High Precision


PCHE Applications
·Supercritical CO₂ power cycles
·LNG & cryogenic processing
·Nuclear reactor systems
·Aerospace thermal management
·Hydrogen fuel cell systems
·Industrial waste heat recovery


Quality Assurance

·100% dimensional inspection (optical measurement)

·Material certificates (MTC, EN10204 3.1)

·Pressure testing to 1.5x design pressure

·ASME BPVC Section VIII Division 1 compliant

·ISO 9001 & AS9100 certified production


Why Choose Xinhaisen PCHE?
·True micro-scale features without mechanical stress
·Perfect channel uniformity for balanced flow
·Rapid prototyping - 2-3 weeks for test samples


Welcome to contact!
