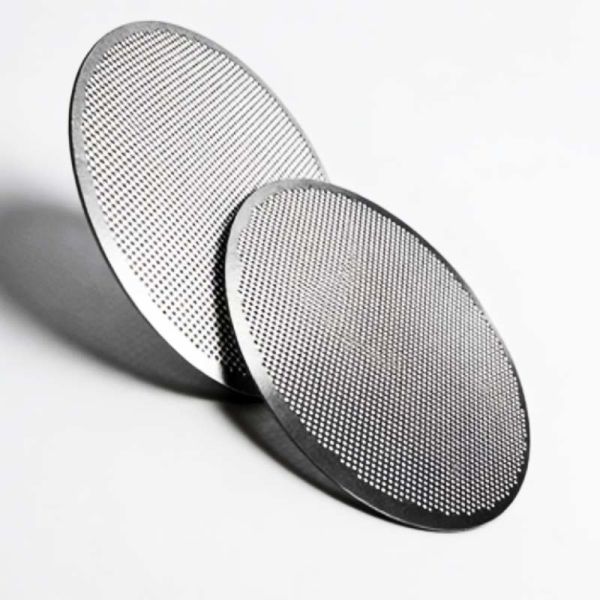

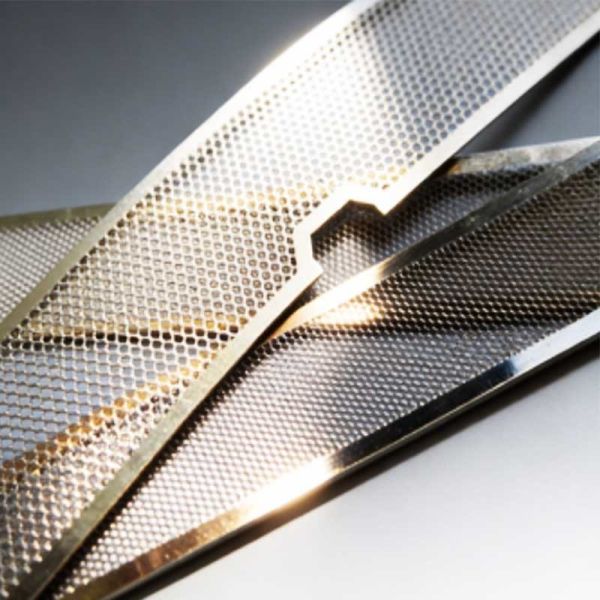

Custom Etched Metal Mesh Panels for Acoustic, Optical, and Automotive Applications

Metal Mesh Overview
Precision Metal Mesh Screens are high‑performance parts manufactured through advanced chemical etching technology. Designed for applications that demand exceptional accuracy, uniformity, and reliability, these meshes are widely used in industries such as telecommunications, acoustics, optics, medical devices, automotive, aerospace, home appliances, and consumer electronics. Available in a variety of metals and custom designs, they offer superior filtration, shielding, ventilation, and structural functionality.

Manufacturing Process

• Material Preparation: Selection of high‑quality metal sheets.

• Cleaning & Coating: The metal is cleaned and coated with a photosensitive resist.

• Exposure & Development: A digital phototool transfers the precise pattern onto the resist.

• Etching: The exposed areas are etched away using controlled chemical solutions.

• Stripping & Finishing: The remaining resist is removed, and the mesh undergoes quality checks and optional post‑treatments (e.g., plating, passivation).

Metal Mesh Features

• High Precision: Micro‑holes as fine as 0.03 mm and line widths down to 0.015 mm.

• Excellent Uniformity: Tolerance within ±0.01 mm across the entire mesh area.

• Burr‑Free & Stress‑Free: No mechanical deformation or thermal distortion.

• Wide Materials: Supports stainless steel, copper, brass, aluminum, nickel, titanium, and other alloys.

• Versatile Designs: Custom patterns, hole shapes, and open‑area ratios available.

• Scalable Production: Suitable for both rapid prototyping and high‑volume orders.

Metal Mesh Specification

Metal Mesh Applications

• Communications & Acoustics: Speaker grilles, receiver meshes, microphone screens.

• Optical & Medical: Filter meshes, sensor covers, fluidic devices, surgical tool parts.

• Automotive & Aerospace: Airflow screens, fuel filtration, EMI shielding, sensor protection.

• Consumer Electronics: Smartphone metal parts, ventilation grids, decorative panels.

• Home Appliances: Coffee machine filters, juicer screens, anti‑insect nets, exhaust covers.

• Industrial: Precision filters, sieves, masking sheets, static‑dissipative belts, wiper blades.

Our Advantages

• Fast Turnaround: Rapid prototyping and flexible bulk production to meet urgent demands.

• High‑Quality Supply Chain: Reliable sourcing of raw materials ensures consistent quality.

• Advanced Etching Capabilities: Handling complex geometries with tight tolerances.

• Wide Material Expertise: Etching various metals up to 1.5 mm thickness.

• Customer‑Centric Service: Dedicated support from design consultation to final delivery.

• Proven Reputation: Recognized by clients for precision, speed, and versatility.

FAQ
Q: What metals can be used for etched mesh screens?
A: We etch a wide range of metals including stainless steel (e.g., 304, 316), copper, brass, aluminum, nickel, titanium, and their alloys.

Q: What is the lead time for samples and bulk orders?
A: Samples are typically delivered within 5–7 days. Bulk order lead times depend on quantity and complexity—contact us for a detailed schedule.

Q: Can you produce custom designs?
A: Yes. We work with your drawings or CAD files to create custom patterns, hole sizes, and open‑area ratios.

Q: How do you ensure consistency in high‑volume production?
A: Our automated etching lines and strict QC procedures (including optical measurement) guarantee uniform quality across large batches.

Q: Are secondary treatments available?
A: Yes. We offer plating, anodizing, passivation, and other surface finishes upon request.

Q: What file formats do you accept for design?
A: We accept DWG, DXF, STEP, IGES, and PDF formats. Our engineering team can also assist with design optimization.

Welcome to contact us at any time!
