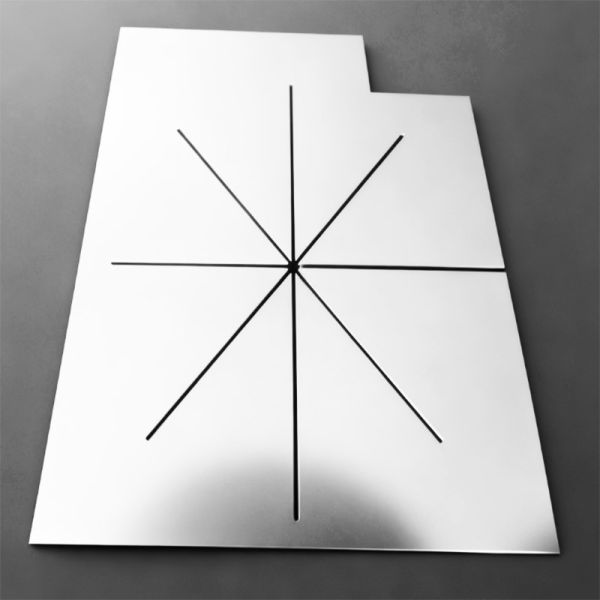

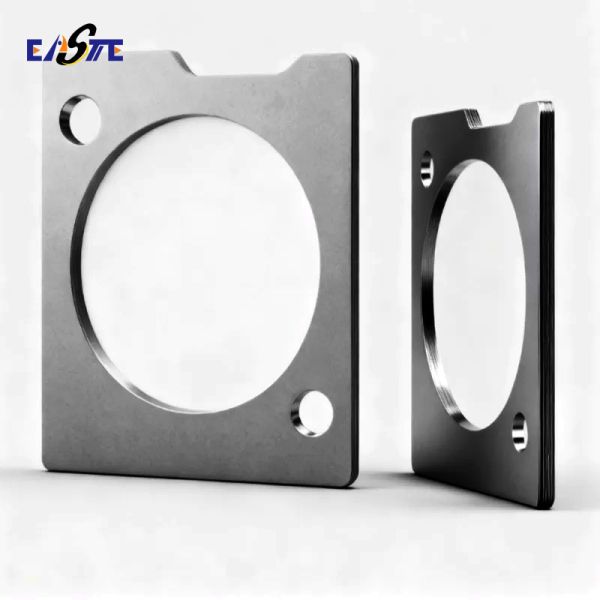

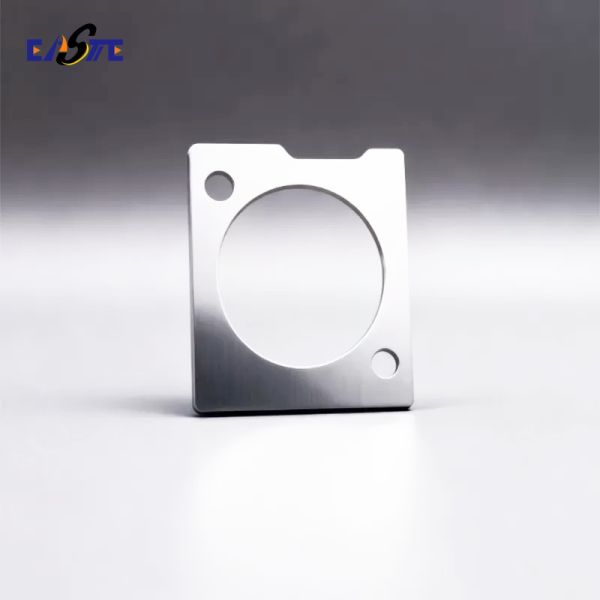

Custom Etched Stainless Steel Shim Washers & Spacers with Tight Tolerance for the Canada Market

Product Overview
Stainless steel shims are ultra-thin, precision-engineered metal spacers manufactured through advanced chemical etching technology. Designed for applications requiring exact thickness control, uniformity, and reliability, these shims are ideal for high-precision industries such as aerospace, automotive, medical devices, optical systems, and electronic equipment. They serve as critical components for alignment, spacing, insulation, and wear reduction in assemblies where dimensional accuracy is paramount.

Manufacturing Process
Our stainless steel shims are produced using state-of-the-art photochemical etching (also known as metal etching or chemical milling). This process involves:

• Cleaning & Preparation: Stainless steel sheets are thoroughly cleaned to ensure optimal adhesion of the photoresist.

• Photoresist Coating: A light-sensitive photoresist is applied uniformly to the metal surface.

• Exposure & Development: The coated sheet is exposed to UV light through a high-precision photomask, transferring the shim pattern onto the resist.

• Etching: The exposed areas are etched away using environmentally controlled chemical solutions, achieving fine features without mechanical stress.

• Stripping & Finishing: The remaining resist is removed, and shims undergo cleaning, deburring, and quality inspection before packaging.

Product Features

• High Precision: Consistent thickness tolerance down to ±0.01mm, with fine micro-features possible.

• Burr-Free & Stress-Free: Etching eliminates mechanical deformation, ensuring smooth edges and no thermal or structural stress.

• Wide Material Range: Compatible with various stainless steel grades and other alloys.

• Customizable Designs: No-tooling-cost flexibility for custom shapes, sizes, perforations, or complex geometries.

• Rapid Turnaround: Quick prototyping and mass production capable of handling urgent and high-volume orders.

Product Specifications

Product Applications

• Aerospace: Shim spacers for engine assemblies, instrumentation, and structural components.

• Automotive: Precision gaskets, sensor shims, and alignment spacers.

• Medical Devices: Surgical tool components, implantable device parts, and diagnostic equipment shims.

• Electronics & Communications: EMI/RFI shielding, connector spacers, and micro-electronics insulation.

• Optics & Acoustics: Mounting shims for lenses, speakers, and acoustic mesh components.

• Industrial Machinery: Calibration shims, wear pads, and vibration dampers.

Our Advantages

• Expertise in Precision Etching: Over years of specialization in micro-etching, ensuring unmatched accuracy and repeatability.

• Rapid Response & Scalability: From prototype to bulk production, we support both urgent small runs and large-volume demands.

• Quality Assurance: Strict control from material sourcing to final inspection, guaranteeing high performance and durability.

• Cost-Effective Solutions: No hard tooling required, reducing lead time and expense for custom designs.

• Wide Industry Experience: Proven track record serving sectors like medical, automotive, telecom, and consumer electronics.

FAQ
Q: What is the lead time for custom stainless steel shims?
A: Prototypes can be delivered within 5–7 days; mass production depends on order volume, typically 1–2 weeks.

Q: Can you achieve tight tolerances on very thin shims (e.g., 0.05mm)?
A: Yes, we specialize in ultra-thin shims with thickness tolerances as tight as ±0.01mm upon request.

Q: Do you provide material certifications?
A: Yes, we supply material test reports (MTRs) and comply with international standards such as ISO 9001, ROHS, and REACH.

Q: Are custom shapes or perforations possible?
A: Absolutely. Photochemical etching allows for complex designs, micro-perforations, and intricate patterns without additional tooling costs.

Q: How do you ensure corrosion resistance?
A: We offer passivation and other surface treatments to enhance corrosion resistance, suitable for harsh environments.

Q: What file formats do you accept for design?
A: We accept CAD files (DXF, DWG), Gerber, PDF, or AI formats. Our engineering team can also assist with design optimization.

Welcome to contact us at any time!
