High-precision Metal Etching Of Stainless Steel Metal Filter Mesh For Effective Filtration

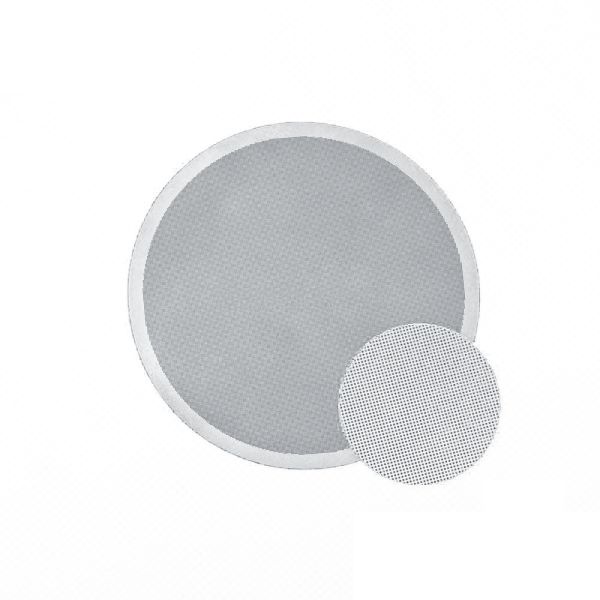

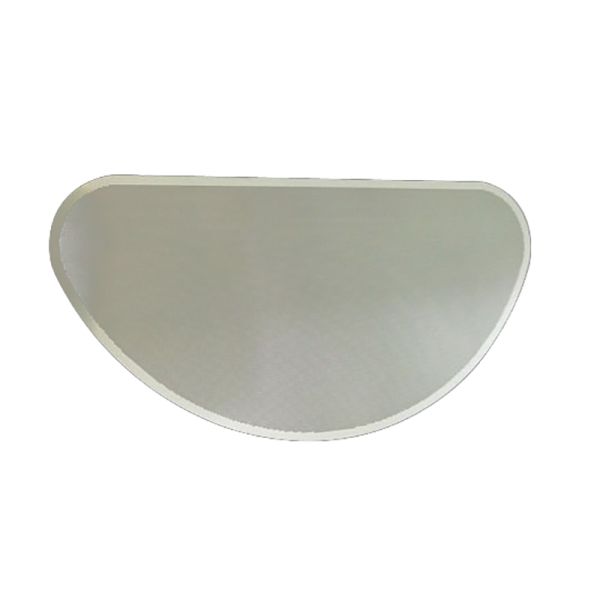

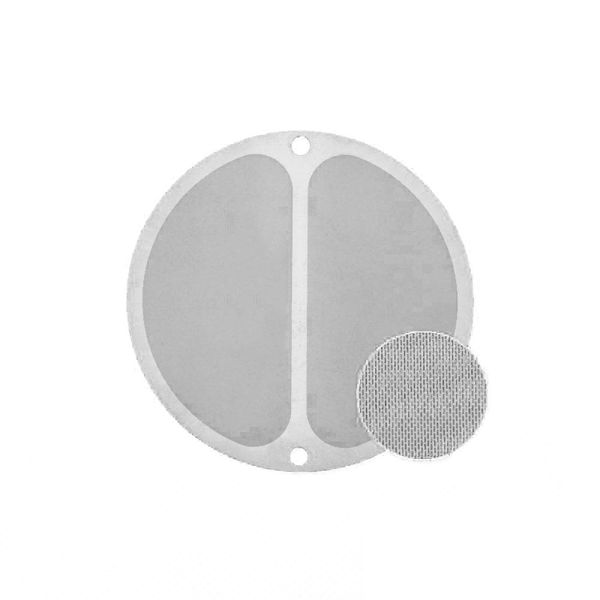

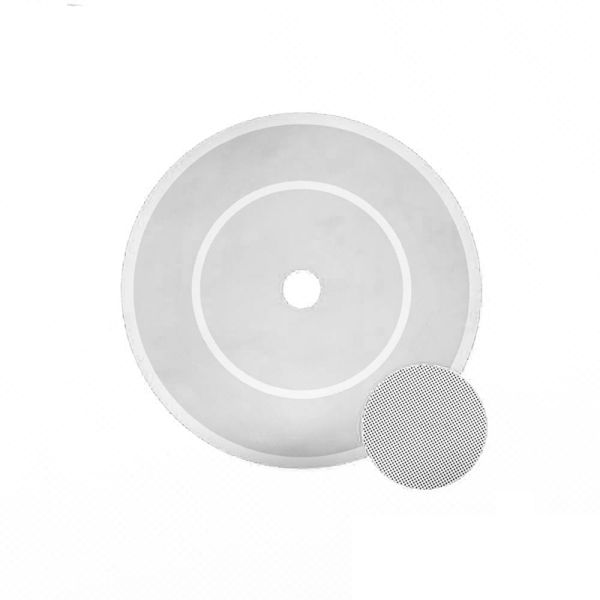

Stainless Steel Metal Filter Mesh Etching Samples

Stainless Steel Etched Filter Mesh	Stainless Steel Etched Filter Mesh	Stainless Steel Etched Filter Mesh
Stainless Steel Etched Filter Mesh	Stainless Steel Etched Filter Mesh	Stainless Steel Etched Filter Mesh

Specifications of Precision Metal Etching Filter Mesh

Advantages of Stainless Steel Etching Filter Mesh

1. High Precision & Consistent Apertures

Photochemical etching enables extremely accurate hole sizes and shapes, achieving tight tolerances and uniform pore distribution. This ensures stable filtration performance and repeatability, which is difficult to achieve with woven or punched mesh.

2. Burr-Free & Smooth Edges

Unlike mechanical punching or laser cutting, chemical etching is a stress-free, non-contact process. The result is no burrs, no heat-affected zones, and smooth edges—critical for applications requiring clean flow paths and reduced particle contamination.

3. Flexible & Complex Pattern Design

Etched filter mesh allows custom hole geometries (round, square, slotted, hexagonal, or irregular patterns) and variable open-area designs. This flexibility helps optimize flow rate, pressure drop, and filtration efficiency for specific applications.

4. Excellent Corrosion & Chemical Resistance

Stainless steel materials such as 304, 316, and 316L offer outstanding resistance to corrosion, oxidation, and aggressive chemicals, making etched meshes suitable for harsh environments including chemical processing, medical, and food-grade filtration.

5. Wide Thickness & Micron Range

Stainless steel etched filter mesh can be produced in a wide thickness range (typically 0.02 mm to 0.5 mm or thicker) with micron-level features, supporting both ultra-fine filtration and high-strength structural requirements.

6. High Strength with Controlled Open Area

Compared with woven mesh, etched mesh provides higher dimensional stability and more predictable open-area ratios, ensuring consistent mechanical strength while maintaining high flow efficiency.

7. Cleanability & Long Service Life

Smooth etched surfaces reduce particle adhesion, making the mesh easier to clean via back-flushing, ultrasonic cleaning, or chemical washing, extending service life and lowering maintenance costs.

8. Custom Surface Treatments Available

Etched stainless steel filter mesh can be enhanced with electropolishing, passivation, or coating to further improve corrosion resistance, surface cleanliness, and filtration performance.

9. Suitable for Mass Production & Prototyping

Photochemical etching supports both rapid prototyping and high-volume production without tooling wear, making it cost-effective for short runs and scalable for large orders.

Typical Applications

• Industrial liquid & gas filtration

• Medical and laboratory filters

• Fuel, oil, and hydraulic systems

• Electronics and semiconductor processing

• Food & beverage filtration

• Environmental and air purification systems
