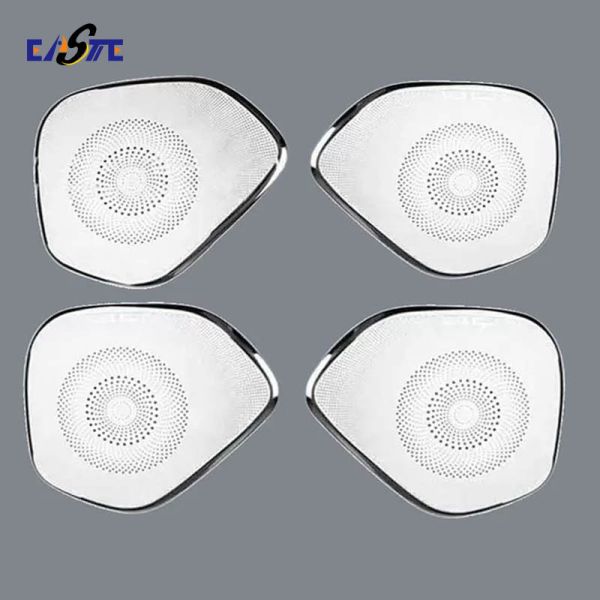

Custom Photo-Etched Car Speaker Grilles with Intricate Patterns & Logos for German Market

Product Overview

Shenzhen Xinhaisen manufactures premium car speaker grilles using advanced photochemical etching technology. Our precision-etched metal grilles provide exceptional speaker protection while maintaining optimal acoustic transparency for superior sound quality. Suitable for various automotive applications including dashboard tweeters, door speakers, and rear deck subwoofers, our grilles combine high-fidelity audio performance with elegant design aesthetics. With our capability to process materials from 0.02mm to 1.5mm thickness at ultra-fine precision, we deliver burr-free, durable grilles that meet the rigorous standards of the automotive industry.

What Is Photochemical Etching?

Photochemical etching, also known as chemical etching or photo etching, is a precision manufacturing process that uses chemical solutions and photoresist technology to selectively dissolve metal and create intricate patterns without mechanical stress or heat damage.

The process involves cleaning the metal surface, applying a light-sensitive photoresist, exposing it to UV light through a digital phototool to harden the desired pattern, spraying chemical solutions to etch away unprotected areas, and finally stripping the remaining resist. This method produces burr-free, stress-free components with exceptional precision and repeatability.

Product Features

• Superior Acoustic Performance: Precisely engineered openings allow sound waves to pass through with minimal attenuation, ensuring clear and undistorted audio output across all frequencies.
• Burr-Free Construction: The chemical etching process eliminates burrs, sharp edges, and heat-affected zones, preventing unwanted vibrations and rattling noises during speaker operation.
• Exceptional Durability: Manufactured from high-quality metals that maintain their structural integrity, our grilles resist corrosion, UV exposure, and physical impact in demanding automotive environments.
• Design Flexibility: Complex patterns, variable hole sizes, and custom brand logos can be incorporated directly into the grille design without expensive tooling modifications.
• Precision Tolerances: Achieve consistent hole sizes and patterns with tolerances as tight as ±0.01mm, ensuring uniform acoustic performance across all production units.
• Lightweight Construction: Thin, high-strength materials reduce overall vehicle weight while providing robust speaker protection.

Product Specifications

Product Applications

• Dashboard and Center Stack Speakers: Premium finish grilles that complement luxury vehicle interiors while delivering clear high-frequency response.
• Door Panel Speakers: Durable grilles resistant to moisture and impact, designed for consistent mid-range and bass performance.
• Rear Deck Speakers: Large-format grilles combining structural rigidity with elegant aesthetic appeal for full-range sound systems.
• Pillar-Mounted Tweeters: Ultra-thin grilles for compact high-frequency drivers requiring minimal visual impact.
• Headliner and Overhead Speakers: Precision components for immersive surround sound systems in premium vehicles.

Our Advantages

• Unmatched Precision Capabilities: We achieve micro-holes as small as 0.03mm with uniformity of ±0.01mm, handling the most intricate design requirements while maintaining rapid production turnaround.
• Comprehensive Material Expertise: Our experience etching diverse metals allows automotive designers to select optimal materials for specific acoustic and environmental requirements.
• Zero Tooling Costs for Modifications: Digital phototooling eliminates expensive hard tooling, making design changes and prototype iterations fast and economical.
• Scalable Production Capacity: From prototype quantities to millions of units for mass production, our facility maintains consistent quality and precision at any volume.
• Automotive Industry Compliance: We understand the stringent quality standards and delivery requirements of automotive manufacturing, ensuring reliable supply chain performance.

Frequently Asked Questions

• Q: What is the difference between etched grilles and woven wire mesh grilles?
  A: Etched grilles are manufactured from solid metal sheets with precision-formed openings, offering superior rigidity and structural integrity compared to woven mesh. This eliminates deformation and vibration issues while providing more consistent acoustic performance and design possibilities.
• Q: Can you incorporate custom logos or branding into the grille design?
  A: Yes. Our digital photochemical etching process easily accommodates custom logos, brand names, and intricate design elements without additional tooling costs or production delays.
• Q: What are the minimum order quantities for custom speaker grilles?
  A: We accommodate both low-volume prototype runs for new vehicle programs and high-volume production for mass manufacturing. Our digital tooling process makes small-batch prototyping economical while maintaining scalability for large orders.
• Q: How do you ensure corrosion resistance for automotive applications?
  A: We offer various post-etching finishing options including PVD coating, anodizing, electroplating, and powder coating to meet specific automotive salt-spray and UV resistance requirements.
• Q: Can you supply fully formed three-dimensional grilles rather than flat sheets?
  A: Absolutely. We provide comprehensive secondary services including forming, bending, and drawing to transform flat etched sheets into complete three-dimensional grille assemblies ready for installation.
• Q: How quickly can you produce prototypes for new designs?
  A: Our digital tooling process enables rapid prototyping. Please contact us with your CAD files or design specifications for specific turnaround times based on your project requirements.

Welcome to contact us at any time!
