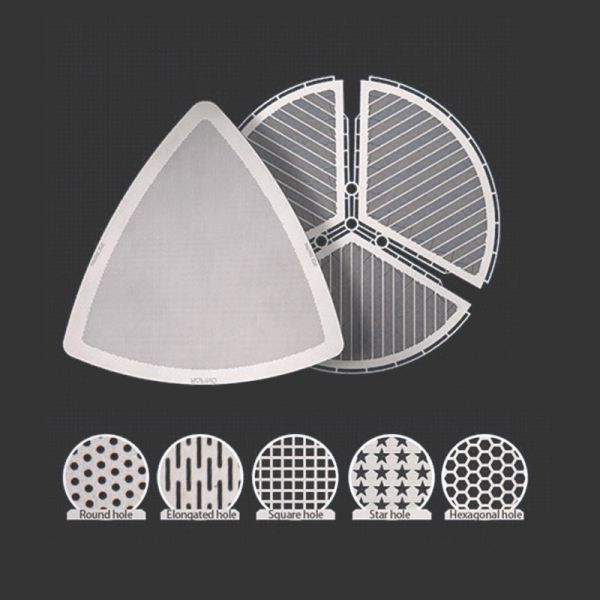

High Precision Stainless Steel Photo-etched Fine Metal Filter Mesh Screen For Filtration

Our high precision stainless steel photo-etched filter mesh screens are manufactured using advanced photo chemical etching technology, enabling the production of ultra-fine, burr-free filtration components with excellent dimensional accuracy and consistency. Compared with woven wire mesh or mechanically punched screens, chemical etching provides superior control over micro hole geometry and open area, ensuring reliable and repeatable filtration performance.

Chemical Etching Technology Advantage

Photo chemical etching is a non-contact, stress-free process that allows:

• Precise and uniform micro apertures without burrs or deformation

• No heat-affected zones, maintaining original material properties

• High repeatability for complex and high-density hole patterns

• Stable performance for thin and ultra-thin metal filters

This makes photo-etched mesh ideal for applications requiring tight filtration accuracy and long-term reliability.

Specifications of Photo Etched Metal Filter Mesh Screen:

Secondary Processing Options

To meet complete application needs, we provide a variety of post-processing services:

• Electropolishing for smoother surfaces and improved cleanliness

• Chemical passivation for enhanced corrosion resistance

• Forming, bending, and deep drawing

• Laser cutting for outer profile accuracy

• Assembly with frames or multi-layer lamination

Typical Filtration Applications

Photo-etched stainless steel filter mesh screens are widely used in:

• Industrial liquid and gas filtration systems

• Automotive fuel, oil, and air filters

• Medical and laboratory filtration devices

• Chemical processing and environmental equipment

• Electronics ventilation and protection filters

With strong chemical etching expertise, strict quality control, and flexible customization capability, we deliver precision metal filter mesh solutions that meet demanding filtration standards.

How to Customize photo etched metal filter mesh screen from us?

1. Send Requirements
   Provide material, thickness, hole size/pattern, dimensions, or drawings.

2. Engineering Review
   We evaluate etching feasibility and optimize the design if needed.

3. Sample Approval
   Photo-etched samples are made for testing and confirmation.

4. Mass Production
   Stable, burr-free production after sample approval.

5. Secondary Processing
   Optional polishing, passivation, forming, or assembly.
