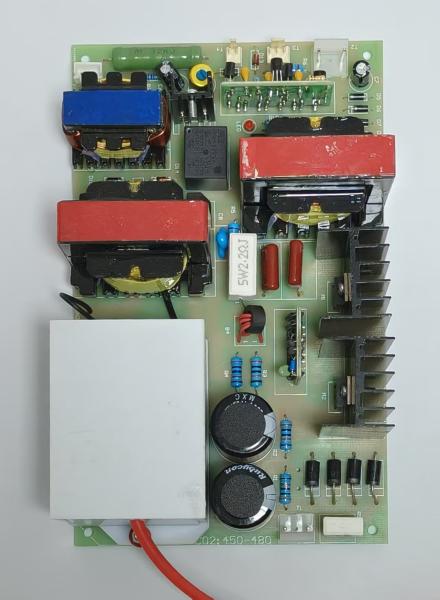

15mW CO2 Laser Power Supply Laser Cutting Engraving Marking 35W 50Hz 60Hz
15mW CO2 Laser Power Supply Laser Cutting Engraving Marking 35W 50Hz 60Hz
Specifications
Brand Name :
Precise
Model Number :
PC015-A
Place of Origin :
China
MOQ :
Negotiable
Payment Terms :
T/T
Delivery Time :
5~10 Working days
Certification :
CE
Price :
350~500 USD
Protectionfeatures :
Overvoltage, Overcurrent, Overtemperature
Warranty :
1 year
Power :
35W
Frequency :
50Hz/60Hz
Productname :
CO2 Laser Power Supply
Laser Type :
CO2
Inputvoltage :
110V/220V AC
Modulationfrequency :
0-20kHz
Voltage :
110V / 220V
Coolingmethod :
Water Cooling
Operatingtemperature :
0°C to 40°C
Dimensions :
300mm x 150mm x 100mm
Application :
Laser cutting, engraving, marking
Outputcurrent :
0-20mA
Weight :
1kg
Description
15mW CO2 Laser Power Supply Laser Cutting Engraving Marking 35W 50Hz 60Hz
Product Overview

This 15mW CO₂ Laser Power Supply is a compact, high-stability driver designed specifically for low-power sealed-tube CO₂ lasers. It is ideal for laboratory experiments, educational demonstrations, optical alignment, and proof-of-concept prototyping. The unit provides precise voltage and current control to maintain a stable 15mW optical output while ensuring safe and reliable operation.

The power supply features short-circuit protection, adjustable current limiting, and forced air cooling, making it suitable for continuous or pulsed operation.

Key Features
  • Precise Power Regulation: Maintains stable 15mW output for consistent beam performance
  • Dual Operation Modes: Supports both CW (Continuous Wave) and pulsed operation (0-5kHz)
  • Compact Design: Lightweight and small footprint for easy integration into benchtop systems
  • Safety Protections: Built-in over-voltage, over-current, and open-circuit protection
  • Adjustable Output: Fine-tune the discharge current to match specific laser tube requirements
  • User-Friendly Interface: Simple TTL control for laser on/off and external modulation
Technical Specifications
Parameter Value Condition / Note
Input
Supply Voltage 110 / 220 VAC ±10% 50/60Hz (selectable)
Max Input Power < 50W
Max Input Current 0.5A (at 110VAC)
Output (to Laser Tube)
Output Voltage Range 10 - 15 kVDC Typical for 15mW CO₂ tubes
Output Current 3 - 8 mA Adjustable
Max Output Power ~100W (Electrical)
Efficiency ≥ 85% At full load
Control & Interface
Modulation Frequency 0 - 5 kHz TTL / PWM input
Response Time (Rise/Fall) < 100 µs
Control Interface DB-9 / TTL Laser on/off, current adjust
Protection & Environment
Protections Over-voltage, Over-current, Open-circuit, Short-circuit Automatic shutdown
Cooling Method Forced Air Cooling Built-in fan
Operating Temperature 0°C to +40°C
Storage Temperature -20°C to +70°C
Relative Humidity ≤ 90% (non-condensing)
Physical
Dimensions (L×W×H) 150 × 100 × 50 mm Approximate
Weight 0.8 kg
High Voltage Cable Length 1.0 meter Included, with connector
Applications
  • Scientific research and laboratory experiments
  • Educational laser demonstrations
  • Optical system alignment
  • Low-power material processing (e.g., thin film marking)
  • Prototyping for OEM systems
Notes
  • This power supply is designed for 15mW CO₂ laser tubes (wavelength 10.6µm). Confirm compatibility with your laser head before operation.
  • For pulsed operation, use an external TTL signal (0-5V, 0-5kHz).
  • Always follow laser safety protocols: CO₂ lasers emit invisible infrared radiation. Use appropriate shielding and laser safety eyewear.
