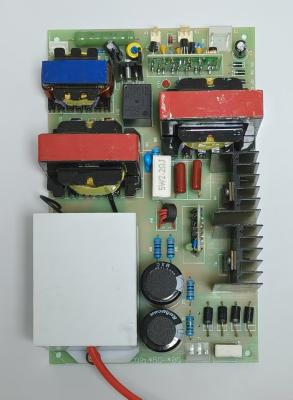

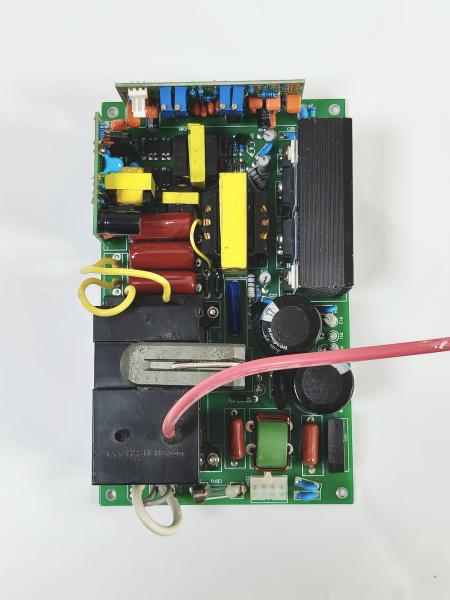

This 15mW CO₂ Laser Power Supply is a precision-engineered, high-stability driver specifically designed to operate B, E, ES, and ESV series low-power sealed CO₂ laser tubes. With an optical output of 15mW at 10.6μm wavelength, this power supply is ideal for laboratory research, optical alignment, educational demonstrations, and proof-of-concept OEM integrations.

The unit features a compact, lightweight design with forced air cooling, short-circuit and over-voltage protection, and supports both Continuous Wave (CW) and pulsed modulation modes. Its specialized output characteristics ensure optimal excitation and stable discharge for B/E/ES/ESV series tubes, delivering reliable performance in benchtop and embedded applications.

• B/E/ES/ESV Series Compatibility: Optimized output parameters for stable ignition and sustained discharge across all four tube series
• Precise 15mW Regulation: Maintains stable optical output power for consistent beam performance
• Dual Operation Modes: Supports both CW (Continuous Wave) and pulsed operation (0-5kHz TTL modulation)
• Comprehensive Protections: Built-in over-voltage, over-current, open-circuit, and short-circuit protection with automatic shutdown
• Compact & Lightweight: Small footprint design for easy integration into laboratory setups and OEM systems
• User-Friendly Control: Simple TTL interface for laser on/off control and external modulation input

• Scientific research and laboratory experiments
• Optical system alignment and calibration
• Educational laser demonstrations
• Thin film marking and engraving (prototyping)
• OEM integration for B/E/ES/ESV tube-based systems

1. CW Mode: Connect the "Laser On/Off" control pin to TTL high (5V) for continuous operation.
2. Pulsed Mode: Apply a TTL square wave signal (0-5V, 0-5kHz) to the modulation input pin. Laser output will follow the input signal.
3. Current Adjustment: Use the onboard potentiometer or external control voltage (0-5V) to fine-tune the discharge current within the specified range.
