Customizable 3680*4000*4000 Drum Type Rubber Rotary Curing Machine
Customizable 3680*4000*4000 Drum Type Rubber Rotary Curing Machine
Customizable 3680*4000*4000 Drum Type Rubber Rotary Curing Machine
Customizable 3680*4000*4000 Drum Type Rubber Rotary Curing Machine
Customizable 3680*4000*4000 Drum Type Rubber Rotary Curing Machine
Customizable 3680*4000*4000 Drum Type Rubber Rotary Curing Machine
Customizable 3680*4000*4000 Drum Type Rubber Rotary Curing Machine
Customizable 3680*4000*4000 Drum Type Rubber Rotary Curing Machine
Customizable 3680*4000*4000 Drum Type Rubber Rotary Curing Machine
Customizable 3680*4000*4000 Drum Type Rubber Rotary Curing Machine
Customizable 3680*4000*4000 Drum Type Rubber Rotary Curing Machine
Customizable 3680*4000*4000 Drum Type Rubber Rotary Curing Machine
Specifications
Place of Origin :
Jiangsu, China
Condition :
New
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Warranty of core components :
5 years
Core Components :
PLC, Engine, Bearing, Motor, Gear
Brand Name :
MIXER
Machine Type :
curing press
Voltage :
220V/380V/415V/440V
Dimension(L*W*H) :
3680*4000*4000
Weight :
25000
Warranty :
1 Year
Key Selling Points :
Famous brand PLC
Showroom Location :
None
Applicable Industries :
Manufacturing Plant
Rubber Vulcanizing :
Continuous Production
Power(W) :
3KW
After-sales Service Provided :
Field installation, commissioning and training
After Warranty Service :
Video technical support
Certification :
CE,ISO
Marketing Type :
New Product 2020
Packaging Details :
wooden case and plastic film packed in container
Port :
Shanghai
Supply Ability :
5 Set/Sets per Month
Price :
$60,000.00/sets >=1 sets
Description

Product Description

Rubberize fabric curing press/Rubber mat rotocure press/Continuous vulcanizing press for rubber sheet

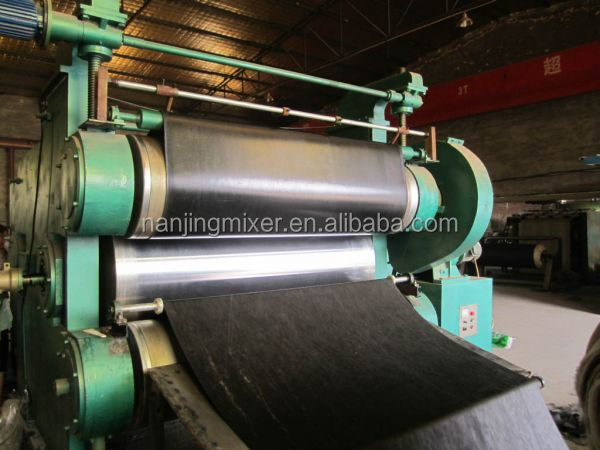

Rotary Curing Press (Drums type Curing Press)

Rotocure Press is used to produce rubber sheet, rubberized fabric,coated fabric,light duty rubber conveyor belt, rubber sheet &film

Lamination with continuous curing production.( Also according to customer’s technical requirement, we can make specially customized curing machine.)

The machine includes main machine,infrared heating device,Oil heating controller,

unwinding&winding up device,electric system and control cabinet.

Specification

Model

DLG-710*1450

DLG-1000*1450

DLG-1250*1600

DLG-1250*1750

DLG-1500*1750

Drum diameter (mm)

710

1000

1250

1250

1500

Working width (mm)

1450

1450

1600

1750

1750

Steel belt force N

38*104

38*104

38*104

38*104

38*104

Liner speed (mm)

0.04~1.12

0.3~2.0

0.3~1.5

0.3~1.5

0.3~1.5

Curing pressure (MPa)

0.5

0.5

0.6

0.6

0.6

Steam pressure used (MPa)

0.6

0.6

1

1

1

Main motor power (kw)

3

3

3

3

3

Welding power (kw)

0.37

0.37

0.37

0.37

0.37

Overall dimension (mm)

3170*2400*2600

3170*2400*2600

3680*4000*4000

3680*4150*4000

3680*5000*5000

Weight (t)

20

25

28

30

32

Finished Product

Customizable 3680*4000*4000 Drum Type Rubber Rotary Curing MachineCustomizable 3680*4000*4000 Drum Type Rubber Rotary Curing MachineCustomizable 3680*4000*4000 Drum Type Rubber Rotary Curing MachineCustomizable 3680*4000*4000 Drum Type Rubber Rotary Curing Machine
