Specifications
Place of Origin :
Jiangsu, China
Brand Name :
Tokchon
Type :
rubber filtration machine
Condition :
New
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Warranty of core components :
2 years
Core Components :
PLC, Gearbox, Motor, Gear, Pump
Voltage :
220V/380V/460V
Dimension(L*W*H) :
4x1.4x1.8m
Warranty :
1 Year
Key Selling Points :
High-accuracy
Power (kW) :
24 kW
Weight (KG) :
3600 KG
Applicable Industries :
Manufacturing Plant
Showroom Location :
Turkey
After-sales Service Provided :
Engineers available to service machinery overseas, Field maintenance and repair service
filter machine :
ram/plunger/piston type rubber strainer
Power :
24KW
Weight :
3600KG
Marketing Type :
Ordinary Product
After Warranty Service :
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location :
Turkey
Certification :
CE,ISO
Packaging Details :
stretch film package loaded in whole container
Port :
Ningbo
Supply Ability :
4 Set/Sets per Month
Price :
$10,000.00 - $99,999.00/sets
Description

Product Description

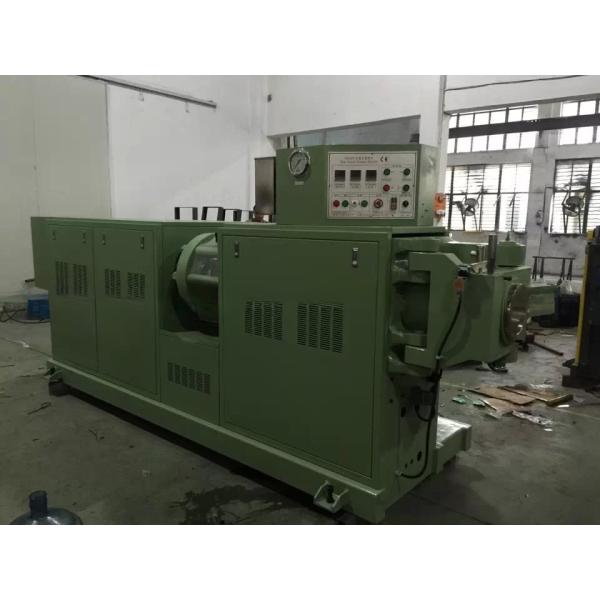

Hydraulic High-Pressure Piston Type Rubber Strainer Machine/Hydraulic Rubber Extruder

Hydraulic High-Pressure Piston Type Rubber Strainer Machine/Hydraulic Rubber Extruder is used to remove the impurity

inside the rubber materials by use of hydraulic piston extrusion, with a screen head for filtration.

The machine is mainly composed of piston, barrel, head and conveying device. The screen head is installed with perforated

plate and screen net. The perforated plate is used for supporting and holding the screen net, also as the discharge port.

It is used to filtrate kinds of rubber materials,especially compared with traditional mechanical screw type strainer,it enjoys

outstanding advantages for filtration of rubber with high hardness, such as fluorine rubber (FKM), nitrile rubber, butyl rubber, etc.

Filtration precision can be up to 300 mesh. Compared with screw type rubber strainer machine, the temperature can be

controlled at very low situation and there is no high temperature rise, ensuring no rubber burn during straining process.

Rubber materials can be added the accelerant first before filtration to improve productivity.

Besides, this piston type rubber strainer machine is hydraulic drive system, the electric power consumption is much lower

than the mechanical screw type strainer,so it can save operation cost.

.

Specification

RSH-250

RSH-250+

RS-150

RS-200

RS-250

Barrel diameter(mm)

200

250

250

150

200

250

Total power (KW)

24

26

30

14

16

22

Max.extrusion pressure (Mpa)

40

25

36

36.8

21.5

18

Max.barrel temperature

(℃)

95

95

95

95

95

95

Batch capacity (Kg)

35

65~70

65~70

10~15

20~25

60-70

Filtration size(mesh)

40~300

40~300

40~300

20~200

20~200

20~200

Dimension(LxWxH:m)

4x1.4x1.8

5x1.5x1.8

6x1.5x1.8

2.7x1.2x1.7

3x1.15x1.7

4x1.15x1.7

Weight(ton)

3.6

4.6

6

2

2.5

3.5
