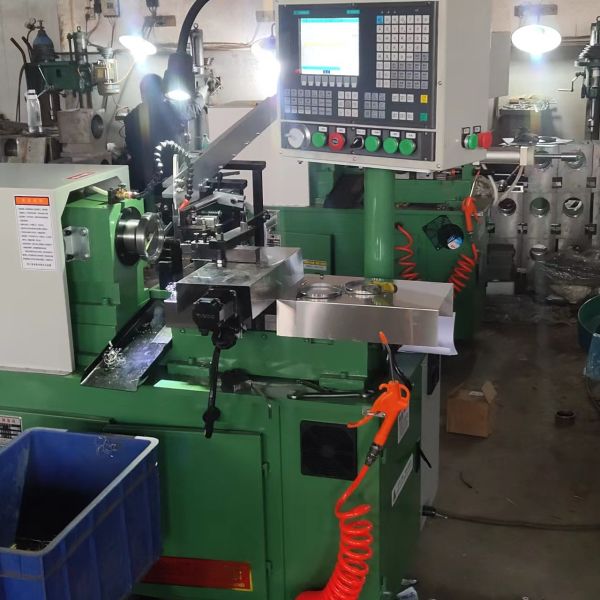

220V/380V/460V Voltage Oil Seal Metal Case Machining and Chamfering Machine with Design
220V/380V/460V Voltage Oil Seal Metal Case Machining and Chamfering Machine with Design
220V/380V/460V Voltage Oil Seal Metal Case Machining and Chamfering Machine with Design
220V/380V/460V Voltage Oil Seal Metal Case Machining and Chamfering Machine with Design
Specifications
Place of Origin :
China
Condition :
New
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Warranty of core components :
2 years
Core Components :
PLC, Engine, Motor
Brand Name :
Mixer
Machine Type :
Oil seal machine
Voltage :
220V/380V/460V
Dimension(L*W*H) :
1400x800x1330mm
Weight :
450
Warranty :
1 year
Power (kW) :
2.2KW
Key Selling Points :
High Productivity
Showroom Location :
Turkey, India
Applicable Industries :
Manufacturing Plant
After Warranty Service :
Video technical support
Marketing Type :
Ordinary Product
Packaging Details :
wooden case package
Port :
Shanghai
Supply Ability :
30sets per months
Price :
$5,000.00 - $10,000.00/sets
Certification :
CE
MOQ :
1set
Delivery Time :
20-30days
Payment Terms :
T/T
Description
Product Description

Auto Oil Seal Metal Case Machining & Chamfering Machine:

It is Suitable for machining & chamfering on metal cases of oil seals.

- Automatic Feeding of Metal Case on a Die for Machinining & Chamfering. High Efficiency & precise processing.

-Loading the Metal Cases manually in line in the conveyor→ Metal Cases are delivered forward by the Conveyor → Robot Grip & Feed Metal Case on a Die → Automatic Machining& Chamfering→Metal Case is ejected out.

Specification

Model: D50-130

Motor 2.2KW

Main shaft speed: 0~1600 RPM, adjustable with inverter for speed control

Power system: Pneumatic

Control system: PLC

Processing range: diameter 50-130mm, height 5-30mm

Scope of application: trimming&chamfering on metal cases of oil seals

Processing speed: 10~20 PCS/ min

Dimension: L1.4*W0.80*H1.33 m

Weight: 450KG
