Metal Sleeve Facing&Chamfering Machine
Metal Sleeve Facing&Chamfering Machine
Metal Sleeve Facing&Chamfering Machine
Metal Sleeve Facing&Chamfering Machine
Metal Sleeve Facing&Chamfering Machine
Metal Sleeve Facing&Chamfering Machine
Specifications
Place of Origin :
China
Brand Name :
Mixer
Condition :
New
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
Ordinary Product
Warranty of core components :
1 Year
Core Components :
Engine, Bearing, Motor, Spindle
Application :
Metal Workpiece
Power (kW) :
2.2
Warranty :
1 Year
Key Selling Points :
Automatic
Weight (KG) :
420 KG
Applicable Industries :
oil seal factory, metal case factory, metal workpiece factory
Showroom Location :
Turkey, India
Packaging Details :
wooden case package
Port :
Shanghai
Supply Ability :
30sets per months
Price :
$7,000.00 - $12,000.00/sets
Certification :
CE
MOQ :
1set
Delivery Time :
20-30days
Payment Terms :
T/T
Description

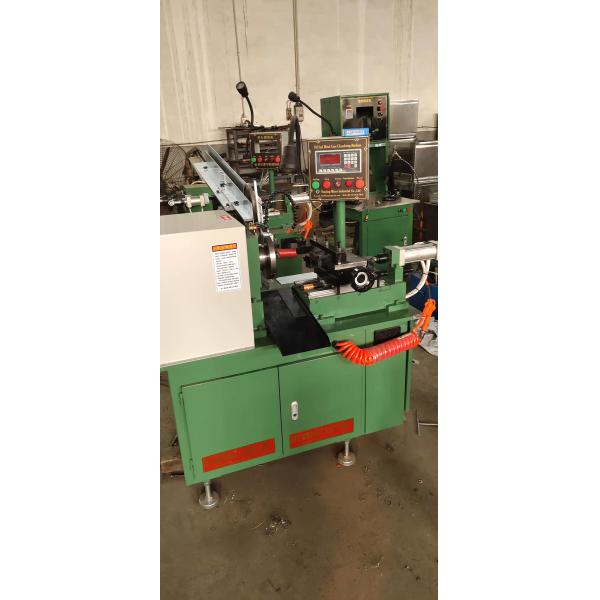

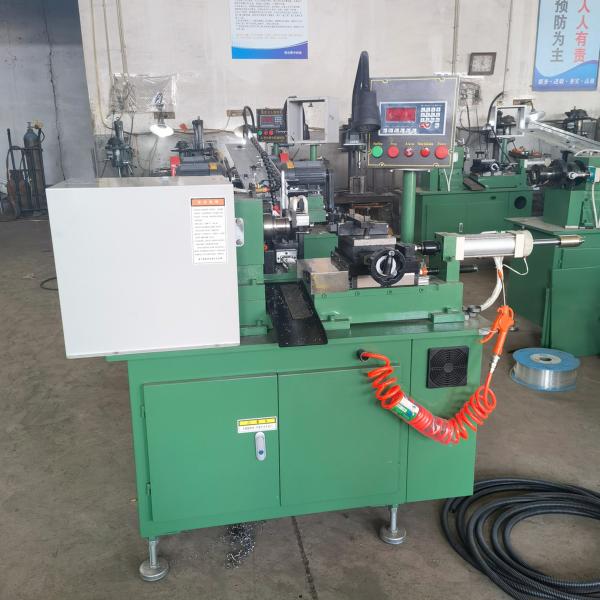

Auto Metal Sleeve Facing & Chamfering Machine:

It is applicable for facing & chamfering of metal parts such as metal case,metal sleeve,metal cup.

1.Automatic Feeding of Metal Cases on a Die for Facing or Chamfering. High Efficiency & precise processing.

2.Loading the Metal Cases manually in line in the feeding conveyor→ Metal Cases are delivered forward by the Conveyor → Robot Grip & Feeds Metal Case on the Collet → Automatic Facing or Chamfering→Finished Metal Cases are ejected out.

Technical specification:

Model:D30-100

Spindle spec: 0640

Motor power: 2.2KW-1450 RPM

Inverter: EM730-2.2KW

Spindle speed: 0-1200 RPM

Power system: pneumatic

Control system: single board computer microcomputer control

Processing range: diameter 30-100mm, height 5-30mm

Scope of application: flat machining&chamfering of round workpieces

Processing speed: 1000 PCS/Hr

Power supply: AC380V/50HZ

Dimension: L1.5xW1xH1.45 m

Weight:420KG
