Heavy Duty Hydraulic Aluminium Extrusion Press Machine For Gear High Rigidity
Heavy Duty Hydraulic Aluminium Extrusion Press Machine For Gear High Rigidity
Specifications
Brand Name :
XINKE
Certification :
CE, ISO9001:2000
Place of Origin :
China
MOQ :
1 Unit
Price :
USD 50000-1000000 Per Unit
Payment Terms :
L/C, T/T
Delivery Time :
90-180 Working Days
Packaging Details :
Wooden case, waterproof cover
Frame :
Straight Sided
Drive :
Oil Hydraulic
Control :
PLC
Application :
Metal Extruding
Description

HY61 500T Hydraulic Gear Extruding Press

Features:

  1. Finite element analyzed straight sided frame, high rigidity and precision
  2. Integrated cartridge valve is adopted to ensure tiny hydraulic impact
  3. Individual electrical & electronic control system with Mitsubishi PLC
  4. Operation mode: Manual, automatic

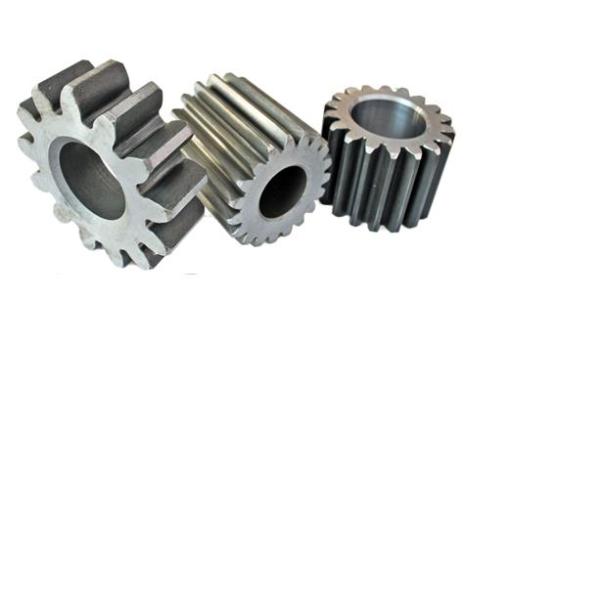

  5. Stroke, working force can be preset. Suitable for precision extruding production of shafts, gears
  6. 8-facet guiding, high resistance to unbalanced loading
  7. High strokes of working speed for high working efficiency

Application:

Suitable for the process of cold extruding and hot extruding (equipped with ingot heating device).

Technical Data:

Item 　 HY61-500
Nominal force kN 5000
Return force kN 570
Ejecting force kN 630
Pressure of medium Mpa 25
Stroke of slider mm 400
Ejecting stroke mm 200
the opening daylight mm 700
Size of worktable
(L.R. x F.B.)		 mm×mm 720x800
Speed of slider Descend mm/s 330
Working mm/s 10-25
Return mm/s 200
Speed of ejecting Ejecting mm/s 200
Return mm/s 260
Motor power kW 44
Machine weight t 16
