Aluminium Die Casting Hydraulic Extrusion Press 500T Straight Sided Frame
Aluminium Die Casting Hydraulic Extrusion Press 500T Straight Sided Frame
Specifications
Brand Name :
XINKE
Certification :
CE, ISO9001:2000
Place of Origin :
China
MOQ :
1 Unit
Price :
USD 10000-200000 Per Unit
Payment Terms :
L/C, T/T
Supply Ability :
10 Units Per Months
Delivery Time :
90-180 Working Days
Packaging Details :
Wooden case, waterproof cover
Frame :
Straight Sided
Drive :
Oil Hydraulic
Control :
PLC
Application :
Rotor of Motors
Description

HY13 500T Aluminium Die Casting Hydraulic Press For Motor Rotor Rotator

Features:

  1. Operation mode: Manual, semi-automatic, automatic
  2. PLC control
  3. High reliability, easy operation, electric power saving

Application:

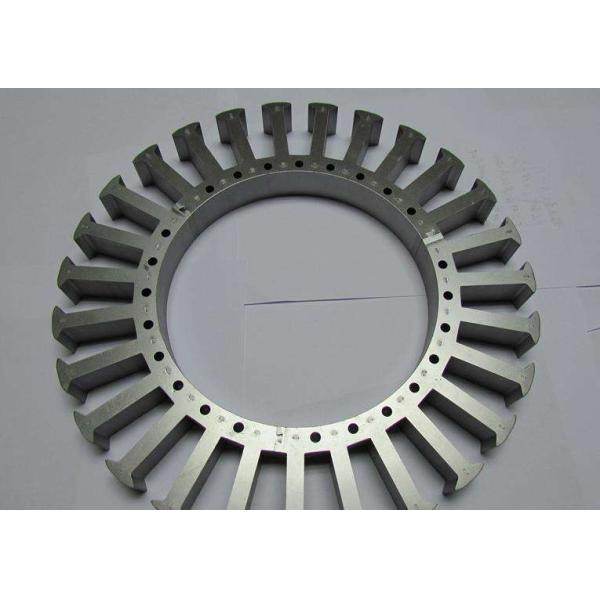

Suitable for the process of rotors of motors

Technical Data:

Item Unit HY13-500
Range of Motor Rotor die casting 　 Y280-Y500-4
Mould Clamping Force KN 5000
Ejecting force KN 2000
Pressurization force KN 3150
Cutting force KN 1000
Working pressure of medium Mpa 25
Stroke of slider mm 900
Injection piston stroke mm 500
Opening daylight kg 1500
Aluminum injection capacity kg 150
Speed of slider Descend mm/s 120
Working mm/s 10
Return mm/s 100
Injection speed Slow working mm/s 45
Quick working mm/s 1000
Return mm/s 100
Size of worktable L.R. mm 1380
F.B. mm 1400
Motor power Kw 74
Overall size of machine L.R. mm 5445
F.B. mm 5518
Height above the floor mm 5018
Machine weight kg 35000
