Auto 200 Ton Hydraulic Extrusion Press For Copper Tee Elbow Plumbing HY33
Auto 200 Ton Hydraulic Extrusion Press For Copper Tee Elbow Plumbing HY33
Specifications
Brand Name :
XINKE
Certification :
CE, ISO9001:2000
Place of Origin :
China
MOQ :
1 Unit
Price :
USD 10000-100000 Per Unit
Payment Terms :
L/C, T/T
Supply Ability :
10 Units Per Months
Delivery Time :
90-180 Working Days
Packaging Details :
Wooden case, waterproof cover
Frame :
Compact Integrated Frame
Drive :
Oil Hydraulic
Control :
PLC
Feature :
High Accuracy
Application :
Pipe Fitting, Tube Fitting
Description

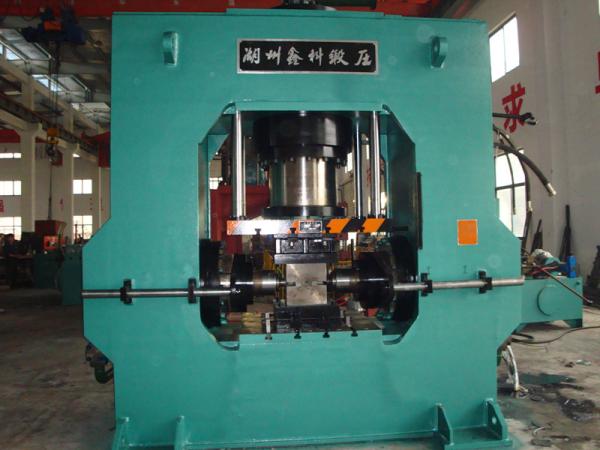

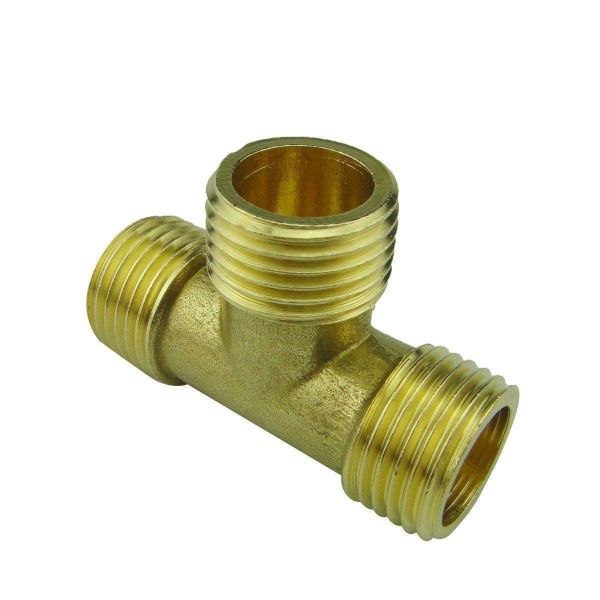

HY33 200T Hydraulic Fitting Press For Copper Tee Elbow Plumbing

It is a hydraulic press with compact integrated frame, the press is used for multi-directional extruding process of small metal parts.

Features:

  1. The frame is finite element analyzed to ensure good rigidity and precision.
  2. Eight-facet guiding, high resistance to unbalance loading
  3. High working speed ensures high production efficiency
  4. Support loop and inter-lock loop ensures high reliability and safety
  5. PLC control
  6. Servo control for saving energy

Application:

  1. Automotive parts, such as shafts, spare parts of engines
  2. Household appliance parts, such as washing machines, refrigerators
  3. Tractors, motorcycles

Accessories for option:

Moveable worktable

Proportional adjustment device for slider

Proportional adjustment device for hydraulic cushion

Buffering device

Light curtain protection device

Touch-screen

Floating guide rail for die exchange

Working position light

Technical Data:

Item Unit HY33-200
Main cylinder Nominal force KN 2000
Stroke mm 710
Descend speed mm/s 60
Working speed mm/s 4-6
Return force KN 470
Return speed mm/s 60
Lateral cylinder Nominal force KN 1000
Stroke mm 200
Approach mm/s 14
Working speed mm/s 10
Return speed mm/s 17
Ejection cylinder Nominal force KN 160
Stroke mm 200
Ejection speed mm/s 100
Return speed mm/s 250
Worktable size L.R. mm 900
F.B. mm 900
Distance between piston rod of ejection cylinder and worktable mm 200
Open daylight mm 1120
Height of center line of lateral cylinder above worktable mm 220
Distance between piston rods of two lateral cylinders mm 450/900
Worktable height above the floor mm 800
Overall dimension L.R. mm 4800
F.B. mm 2000
Height above the floor mm 3520
Central positioning hole of worktable mm φ200
Motor power KW 15.55
