Specifications
Brand Name :
CHENLIFT
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T L/C
Supply Ability :
200 sets per month
Delivery Time :
30day after down payment
Packaging Details :
Wrapped in pallet or in wooden case
Model Number :
MF
Name :
Rough Terrain Forklift
Keyword :
Forklift,Electric Forklift,Portable Forklift
Battery :
48V32AH
Motor Type :
DC
Braking Method :
Electromagnetic Brake
Description

Product Description:

The machine is divided into four models according to the load of 600 kg, 800 kg, 1000 kg and 1500 kg. Suitable for all terrain handling of goods and all types of pallets. Using Tianneng or Chaowei brand lead-acid battery (lithium battery is not fit), working time of about 6 hours, optional four-wheel drive system outdoor working power is stronger, the whole system of products can be matched with electronic counting system and visual system.

Why the MF Series Portable Forklift Is a Game-Changer:
✔ Ultra-Compact Design – Saves space and simplifies operation

✔ Flexible Classification – Defined as a Portable Forklift, not MEWP

✔Multiple Load Options Available – 600kg, 800kg,1000kg and 1500kg versions offered


Features:

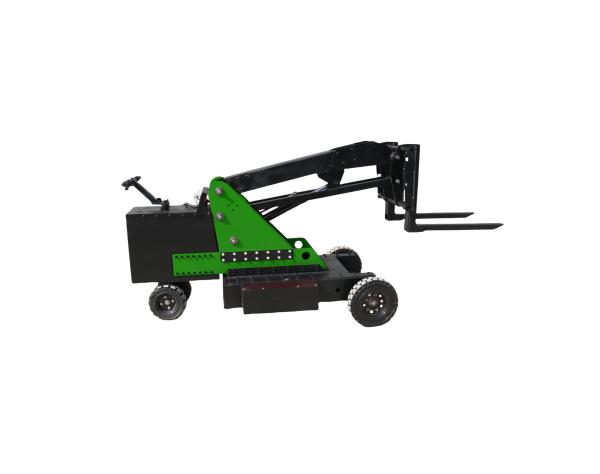

Rough Terrain Handling Machine Portable Fork Lifts 1 Ton Lifting Solution

Basic Model

*The fork can be moved around 5CM on both sides, the accessories can be removed and replaced at will.

*The lifting arm is made of 7074 stainless steel, which is good-looking and has high distributed hard force.

*The whole machine adopts mortise and tenon welding process, the structure is more stable, and avoid problems such as welding joint cracking caused by long-term resonance.

*The whole machine is produced by modularization, any part can be disassembled at will, so reduce the costs of maintenance.

*The tires are solid tires.

*The battery can works for around 8 hours.

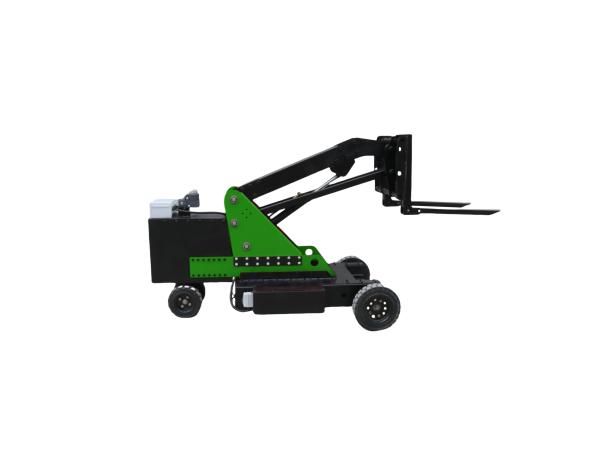

Rough Terrain Handling Machine Portable Fork Lifts 1 Ton Lifting Solution

Remote Control Model

The difference between the remote control model and the standard model is:

*The steering motor is more easy to steer.

*The structure has not changed much, the position of the various parts has not changed, all the control systems are in the white control box behind of the manchine, Please do not open the control box without professional guidance.

*The remote control distance is about 500-1000 meters, the variation depends on the density of obstacles and the strength of signal interference.

*The battery working time will be shorter due to the increased power consumption of the steering motor.

*Other considerations are the same as standard model.


Remote Control Instruction

*Turn on the power switch before using the remote control.

*Open the remote control switch, press the button to unlock the remote control.

*Press the power button, and see the green indicator light on the car body before moving forward.

*Make a drop sound when the power is low.


Specification:

Model MF600-T MF800-T MF1000-TS MF1500-TS
Size of wooden Pack 1800*1000*1000 mm 2350*1400*1400 mm 2350*1400*1700 mm 2380*1400*1700 mm
Supporting Fixture Fork
Barrel jig
Lifting hook
Fork
Barrel jig
Lifting hook
Fork
Barrel jig
Lifting hook
Bucket
Fork
Barrel jig
Lifting hook
Bucket
Size 1600*950*1100 mm 2100*1150*1350 mm 2200*1150*1550 mm 2200*1150*1550 mm
Lifting Height 1450mm 1850mm 1850mm 1850mm
Capacity 600kg 800kg 1000kg 1500kg
Weight 580kg 980kg 1500kg 2100kg
Motor power Driving power 800W
Lifting Power 800W
Driving power 1500W
Lifting Power 1500W
Driving power 2200W
Lifting Power 2200W
Driving power 2200W
Lifting Power 2200W
Battery 48V/32AH 48V/32AH 48V/32AH 48V/32AH
Wheel Diameter: 300mm
Wide: 100mm
Solid tyre
Diameter: 400mm
Wide: 100mm
Solid tyre
Diameter: 590mm
Wide: 190mm
Solid tyre
Diameter: 590mm
Wide: 190mm
Solid tyre
Braking Method Electromagnetic Brake Electromagnetic Brake Electromagnetic Brake Electromagnetic Brake
Motor Type DC DC DC DC
Fork Iron tube
850*100*80mm
Iron tube
850*100*80mm
Iron tube
920*90*30mm
Iron tube
920*90*30mm
Customizable Item *Color,
*Fork,
*Battery,
*Visual system,
*Addition of lamps,
*Increased tyre diameter to 400mm
*Color,
*Fork,
*Battery,
*Visual system,
*Addition of lamps,
*Increase motor power
*Color,
*Fork,
*Battery,

*Visual system,

*Four-wheel drive System

*Addition of lamps,
*Increase motor power
*Pneumatic tyre
*Color,
*Fork,
*Battery,
*Visual system,
*Four-wheel drive system
*Addition of lamps,
*Increase motor power
*Pneumatic tyre


Company Introduction:

Chenlift (Suzhou) Machinery Co Ltd. is a suzhou-based world-wide supplier of lifting equipment with over 20 years of experience in the lifting industry, we have the knowledge to assist you in acquiring your next lifting equipment.
