Product Description:

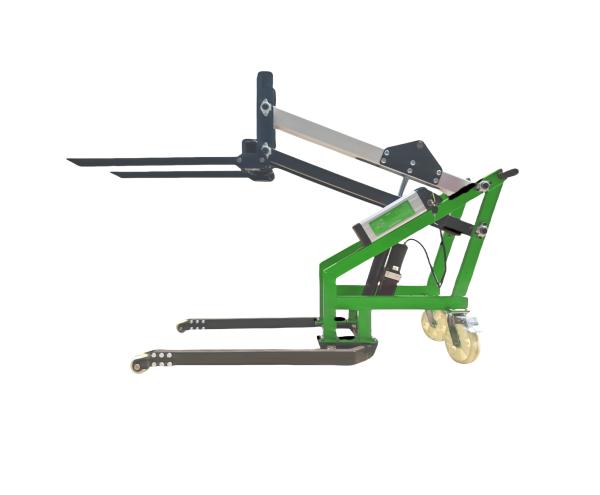

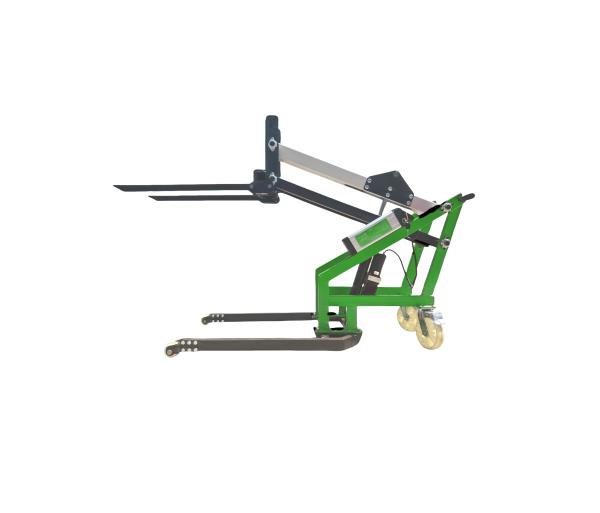

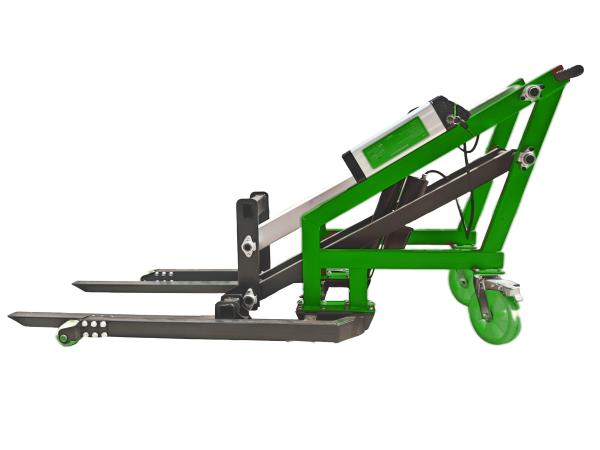

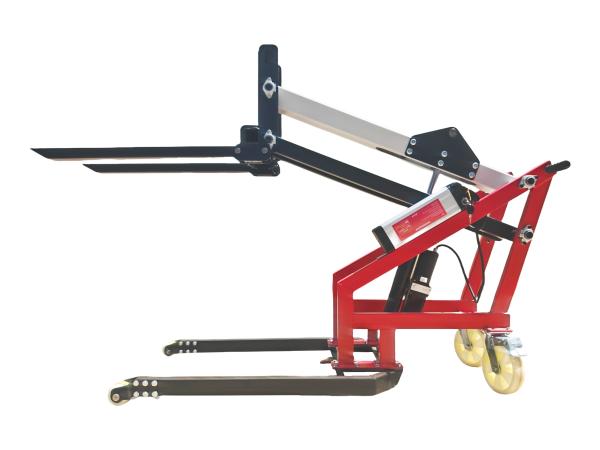

A portable forklift is a compact, lightweight lifting solution designed for easy transport and flexible use in various environments.
This innovative forklift helps businesses cut costs while improving safety and convenience.
Why the MF Series Portable Forklift Is a Game-Changer:
✔ 320kg,500kg Load Capacity – Compact yet robust for daily material handling
✔ Ultra-Compact Design – Saves space and simplifies operation
✔ Flexible Classification – Defined as a Portable Forklift, not MEWP
Features:
*Smaller Turning Radius,Suitable for the Narrow Place
*Lighter Weight and Easier Operation
*With Maintenance-Free Integrated Hydraulic Cylinder
*More Reliable With the Stainless Steel Arm Structure
Specification:
Model | MF320 | MF500 |
Load Capacity | 320KG | 500KG |
Load Center | 400mm | 400mm |
Lifting Height | 1450mm | 1450mm |
Lowered Height | ≤80mm | ≤80mm |
Overall Length | 2050mm | 2050mm |
Overall Width | 768mm | 768mm |
Fork Length | 800mm | 800mm |
Wheelbase | 1150mm | 1450mm |
Fork(Outside Width) | 680mm | 680mm |
Fork(Inside Width) | 305mm | 305mm |
Min Turning Radius | 1270mm | 1500mm |
Lifting Speed(Unload/Full Load) | 140/135mm/s | 140/135mm/s |
Down Speed(Unload/Full Load) | 150/155mm/s | 150/155mm/s |
Max Gradeability(Unload/Full Load) | 6/3% | 6/3% |
Lifting Motor | DC 0.8KW | DC 0.8KW |
Battery | 48V/12AH | 48V/12AH |
Weight | 115KG | 123KG |
Company Introduction:
Chenlift (Suzhou) Machinery Co Ltd. is a suzhou-based world-wide supplier of lifting equipment with over 20 years of experience in the lifting industry, we have the knowledge to assist you in acquiring your next lifting equipment.
