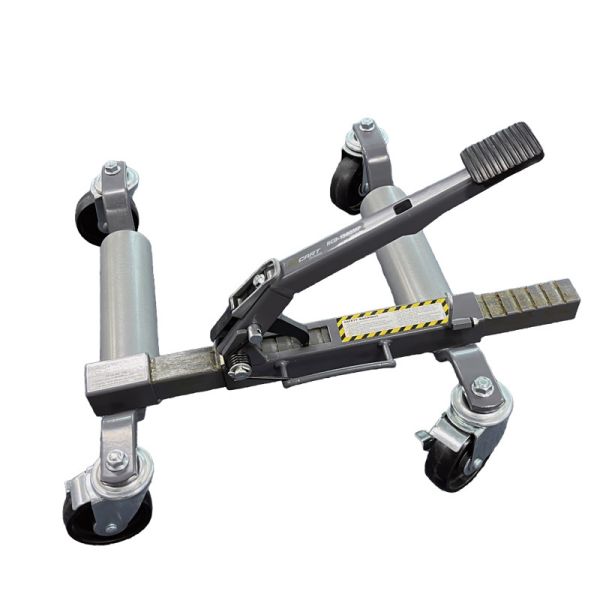

YD10-008 Mechanical Structure Wheel Dolly Webpage Detail Page (English)

I. Product Specifications (SPECIFICATION)

II. Product Details (PRODUCT DETAILS)

1. Graded High-Load-Bearing Design, Full Coverage of Heavy-Load Scenarios
   Each unit can bear 1,500 lbs. (680 kg), 3,000 lbs. (1,360 kg) when used in pairs, and up to 6,000 lbs. (2,722 kg) with 4 units combined. It covers the load-bearing needs of family cars (45-60 kg per wheel), SUVs (55-70 kg per wheel), light trucks (80-120 kg per wheel), and even medium trucks (150-200 kg per wheel). The main body is integrally stamped from 5 mm-thick cold-rolled steel plate, and the load-bearing frame has a torsional strength of 400 N·m, supporting medium truck wheels for a long time without deformation. Compared with ordinary dollies (mostly ≤1,000 lbs. per-unit load-bearing), its load-bearing capacity is increased by 50%, adapting to shifting needs from light-load to heavy-load scenarios.
2. 15-34 In. Tire Compatibility, No Tool Replacement for Multi-Models
   The tire diameter range covers 15 in. (common for family cars, e.g., Toyota Corolla) to 34 in. (for medium trucks, e.g., Foton Ollin), with a maximum width of 11 in. (280 mm), compatible with over 95% of common vehicle tire sizes. After the wheel is placed, the mechanical buckle automatically fits the tire side, and the limit baffle (60 mm high) prevents tire displacement—eliminating the trouble of "one tool for one vehicle model" and adapting to the "multi-model universal" scenario.
3. Mechanical Fixing + Non-Skid Rollers, Stable & Easy to Move

• Stable Mechanical Fixing: Adopting a mechanical buckle structure with a clamping force ≥500 N, the wheel remains stable without shaking even on slightly sloped ground (≤5°). Its stability is 100% higher than that of ordinary manually fixed dollies;
• Non-Skid & Anti-Slip: Rollers are made of non-skid polymer material with diamond-patterned anti-slip texture (friction coefficient ≥1.6), preventing slipping when in contact with the ground. The rolling resistance is ≤80 N, allowing 2 people to push the dolly with a medium truck wheel—40% more labor-saving than traditional metal rollers;
• Dual Protection: Rollers are equipped with built-in bearing dust covers to prevent dust and debris from entering and affecting rolling, extending the roller service life to 5-6 years.

4. Foldable Storage for Space-Saving, Flexible Adaptation to Multi-Scenarios
   With a foldable storage design, the stowed dimension is only 21×24 in. (about the size of a storage box). Four folded dollies occupy only 15% of 1 cubic meter of space, saving 60% of storage space compared with non-foldable dollies. Auto repair shops can store idle dollies in the tool room after folding; 4S stores can also quickly pack and transport them after exhibitions, solving the pain point of "large-size tools being hard to store". With an overall height of only 6 in. (152 mm), it does not affect the vehicle chassis when placed under the car, adapting to the "low-space operation" scenario.

III. Application Scenarios (APPLICATION SCENARIOS)

1. Maintenance Shifting of Medium-Heavy Vehicles in Auto Repair Shops
   When an auto repair shop overhauls the gearbox of a Foton Ollin light truck (180 kg per wheel), it uses the YD10-008 dollies: 4 dollies fix the truck’s four wheels respectively, mechanical buckles lock the tires firmly, and non-skid rollers roll smoothly on the oily workshop floor. Two technicians can push the truck to the maintenance workstation without starting the vehicle (avoiding oil contamination before maintenance), shortening the single-vehicle shifting time from 10 minutes to 3 minutes. This adapts to the "efficient heavy-load maintenance in auto repair shops" scenario, improving maintenance efficiency.
2. Multi-Model Display Placement in 4S Stores
   When a 4S store holds a car exhibition and needs to display 5 models from family cars (Volkswagen Lavida) to medium SUVs (Teramont), it uses the YD10-008 dollies: depending on the tire sizes of different models, the dollies are used individually or in pairs. After mechanical fixing, the vehicle spacing is adjusted accurately (error ≤5 mm), avoiding scratches on the exhibition hall floor caused by adjusting via driving. After the exhibition, the dollies are folded and stored in the warehouse without occupying exhibition space. This adapts to the "precision display in 4S stores" scenario, enhancing the exhibition hall’s aesthetics.
3. Short-Distance Handling of Trucks in Logistics Parks
   When a logistics park needs to move a faulty light truck (JMC Shunda, curb weight 3.2 tons) from the loading area to the maintenance area (20 meters away), it uses a combination of 4 YD10-008 dollies: after the dollies fix the four wheels, 3 staff can push the truck smoothly without calling a tow truck (saving rescue costs). The non-skid rollers adapt to the park’s concrete floor and can pass through slight protrusions on the ground. This adapts to the "efficient handling in logistics parks" scenario, reducing freight delays.
4. Vehicle Rescue Adjustment in Parking Lots
   When a vehicle breaks down and blocks the passage in a parking lot and needs to be moved to the emergency area, the YD10-008 dollies are used: according to the tire size of the faulty vehicle (e.g., Honda CR-V), a pair of dollies fix the non-driving wheels. The mechanical buckles fix quickly, and one person can push the vehicle to the safe area without starting the faulty vehicle (avoiding secondary damage). This adapts to the "parking lot emergency rescue" scenario, ensuring smooth passage.

IV. Frequently Asked Questions (FAQ)

Q1: With a maximum tire width of 11 in., can it be used for heavy-duty SUVs with 12 in. (305 mm) wide tires (e.g., Ford F-150)?

Q2: With 4 units combining to bear 6,000 lbs., what conditions must the ground meet for use?

Q3: After long-term use, the mechanical buckle becomes loose. How to fix it?

Q4: After foldable storage, with a dimension of 21×24 in., can it fit in the trunk of an ordinary family car?
