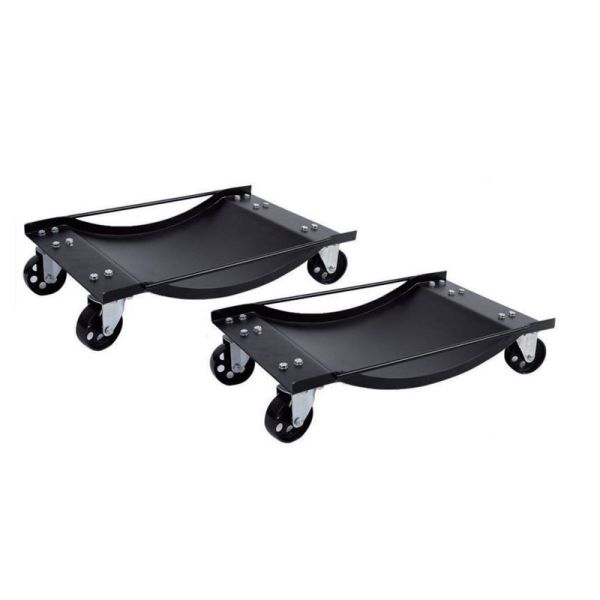

YD10-006 Wheel Dolly Webpage Detail Page (English)

I. Product Specifications (SPECIFICATION)

II. Product Details (PRODUCT DETAILS)

1. 300 Ibs Load-Bearing (Pair), Stable Support Without Pressure
   When used in pairs, it can bear 300 Ibs (136 kg), covering the single-wheel weight of most family cars (approx. 45-60 kg) and SUVs (approx. 55-70 kg). The main body is integrally stamped and formed with 3mm-thick cold-rolled steel plate, and the load-bearing frame has a torsional strength of 280N·m, supporting vehicles for a long time without deformation. Compared with ordinary plastic dollies (mostly ≤200 Ibs load-bearing), its load-bearing capacity is increased by 50%, ensuring stable performance even when moving SUV wheels and avoiding wheel slipping due to insufficient load-bearing, adapting to the "heavy-load safe shifting" scenario.
2. 16"-20" Lifting Range, Compatible with Multi-Size Wheels
   The lifting range covers 16"-20", compatible with wheels with tire diameters from 16" (common for family cars, e.g., Volkswagen Jetta) to 20" (for mid-to-large SUVs, e.g., Honda Avancier), eliminating the need to replace tools for different wheel sizes. The manual hydraulic lifting rod is easy to operate—one hand can control lifting, with a smooth and non-jittery lifting process. The minimum 16" height allows easy clamping under the wheel, while the maximum 20" height can lift the wheel 3-5 cm off the ground, meeting the core demand of "moving after lifting" and adapting to the "full-size wheel compatibility" scenario.
3. Dual-Wheel Universal Wheel Design, Flexible Movement Without Effort
   The bottom is equipped with 2 wear-resistant rubber universal wheels (5cm diameter) with a steering angle of 360°, enabling easy vehicle turning and translation even in narrow garages (e.g., 2.5m-wide home garages). The universal wheels have anti-slip texture on the surface, with a friction coefficient ≥1.2 against the ground, preventing slipping during movement. The rolling resistance is ≤50N, allowing one person to push a vehicle (e.g., a family car) equipped with the dolly for short-distance movement—60% more labor-saving than traditional manual carts, adapting to the "flexible movement in narrow spaces" scenario.
4. High-Strength Rust-Proof Material, Maximum Durability
   The main body is made of cold-rolled steel plate, with surface electrostatic spray anti-rust treatment—no rust in 120-hour salt spray tests, avoiding rust damage even in humid auto repair shop environments or outdoor use. The hydraulic rod seals are made of oil-resistant rubber, with no oil leakage risk during long-term use. Its service life is 150% longer than ordinary dollies, meeting the daily use needs of home users for 5-8 years and professional stores for 3-5 years, adapting to the "long-term high-frequency use" scenario.

III. Application Scenarios (APPLICATION SCENARIOS)

1. Home Garage Vehicle Shifting
   A home user parks two cars (e.g., Toyota Corolla and Honda Fit) in a 2.3m-wide garage and needs to adjust the inner vehicle’s position. They use the YD10-006 dolly: clamp the paired dollies under the front and rear wheels of the inner vehicle, lift the wheels 3 cm off the ground via the hydraulic rod, and push the vehicle 50 cm horizontally by one person—completing the shift without starting the vehicle, avoiding collision risks from starting the car. This adapts to the "vehicle shifting in narrow home garages" scenario, improving garage space utilization.
2. Auto Repair Shop Workstation Adjustment
   A small auto repair shop undertakes maintenance for a family car (e.g., Nissan Sylphy) and needs to move the vehicle from the car wash area to the maintenance area (approx. 10m away). They use the YD10-006 dolly: after lifting all four wheels, 2 technicians can push the vehicle smoothly without driving it (avoiding oil contamination from starting the car before maintenance). The universal wheels adapt to the workshop’s concrete floor, maintaining stable movement even on slightly sloped ground (≤3°), shortening the single-shift time from 5 minutes to 2 minutes. This adapts to the "efficient workstation adjustment in small shops" scenario, improving maintenance efficiency.
3. 4S Store Vehicle Display Placement
   An auto 4S store holds a model exhibition and needs to place multiple SUVs (e.g., Haval H6) at specified intervals in the exhibition hall. They use the YD10-006 dolly: lifting the wheels allows precise adjustment of vehicle positions with an error ≤5 cm, avoiding scratches on the exhibition hall floor from adjusting via driving. The dolly’s compact overall size (60×39×14cm) is hidden under the wheels, not affecting the display effect. This adapts to the "precision display placement in 4S stores" scenario, enhancing the exhibition hall’s aesthetics.
4. Short-Distance Handling of Small Vehicles in Logistics Parks
   In a logistics park, a small delivery truck (e.g., Foton Xiangling, single-wheel weight approx. 65 kg) needs to be moved from the storage area to the loading area (approx. 20m away). They use the YD10-006 dolly: after the paired dollies bear the wheels, 3 staff can push the vehicle without starting the truck (saving fuel consumption). The rust-proof material is not afraid of the park’s humid environment, with no rust risk even in rainy weather. This adapts to the "efficient short-distance handling in logistics parks" scenario, reducing handling costs.

IV. Frequently Asked Questions (FAQ)

Q1: It is compatible with tire diameters 16"-20". Can it be used for large SUVs with 21" tire diameters (e.g., Mercedes-Benz GLS)?

Q2: The product weighs 20kg. Is it laborious for one person to carry?

Q3: After long-term use, the hydraulic rod lifts unsmoothly. How to fix it?

Q4: When used on smooth tile floors, will the universal wheels slip?
