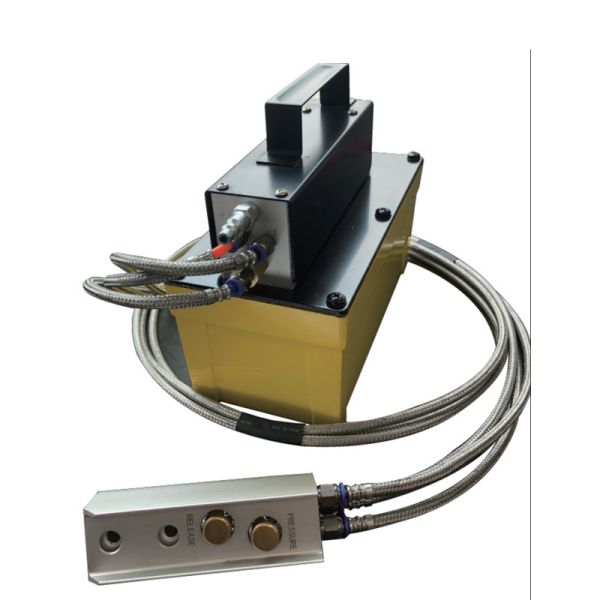

10,000 PSI Air Hydraulic Pump Webpage Detail Page(English)

I. Product Specifications (SPECIFICATION)

II. Product Details (PRODUCT DETAILS)

1. 10,000 PSI Ultra-High Pressure Output, Strong Adaptability to High-Demand Scenarios:The maximum output pressure reaches 10,000 PSI (approx. 68.95 MPa), far exceeding that of ordinary hydraulic pumps (20-50 MPa). It can drive ultra-high pressure hydraulic wrenches to disassemble and assemble heavy bolts above M50, or provide strong power for high-pressure breaking tools — in oil pipeline maintenance, it can easily tighten high-pressure flange bolts to ensure leak-free pipeline sealing; compared with similar high-pressure pumps, the pressure stability is increased by 30%, and the pressure fluctuation is ≤2%, adapting to "ultra-high pressure and high-precision" operation needs.
2. Dual Flow + High Air Flow, Dual Efficiency in Start-Up and Operation:The hydraulic pump has a no-load flow of 0.8 L/min, which can quickly fill ultra-high pressure tools with oil. For example, when driving a 30-ton ultra-high pressure jack, it can complete the lifting preparation within 40 seconds, saving 40% of start-up time compared with ordinary high-pressure pumps; the loaded flow is 0.16 L/min, ensuring the balance between pressure and flow during ultra-high pressure operations and avoiding tool jamming; combined with a 340 L/min large air flow, the air-driven system has a fast response speed, and it only takes 15 seconds to reach the working pressure from start-up, adapting to high-frequency ultra-high pressure operation scenarios.
3. 2.3 L Large-Capacity Oil Tank, Long Endurance with Less Refueling:The available capacity of the oil tank is 2.3 L, more than 1.5 times that of ordinary high-pressure pumps (0.8-1.5 L), which can meet the oil supply demand for 8 hours of continuous ultra-high pressure operations — in aerospace component assembly, one oil injection can complete the pressing of multiple sets of precision components without frequent shutdowns for refueling; the oil tank adopts a high-strength sealed design, with no leakage under 10,000 PSI pressure, and the inner wall is treated with rust prevention, adapting to long-term ultra-high pressure working conditions and extending the service life of the oil tank.
4. Pressure Relief Protection + Lightweight Design, Balancing Safety and Portability:Equipped with an exclusive pressure relief device (RELEASE PRESSURE), which can quickly release the internal pressure of the pump body after operation, avoiding safety hazards caused by residual high pressure. The pressure relief time is ≤10 seconds, and the operation is convenient; the net weight of the equipment is only 8.5 kg, 30% lighter than cast iron pumps of the same pressure level, and the product size is 315×172×200 mm, equivalent to a small microwave oven, which can be easily carried by one person, adapting to scenarios of "flexible scheduling of multiple workstations and outdoor emergency ultra-high pressure maintenance".

III. Application Scenarios (APPLICATION SCENARIOS)

1. Petrochemical High-Pressure Equipment Maintenance:During the maintenance of oil drilling platforms and chemical pipelines, use this pump to drive ultra-high pressure hydraulic wrenches. The 10,000 PSI high pressure can quickly disassemble and assemble heavy bolts of pipeline flanges, valves and other components; the 2.3 L oil tank supports 6 hours of continuous operation without frequent refueling; the pressure relief device ensures safe operation after maintenance, adapting to the petrochemical scenario of "high pressure and high risk" and solving the problem of laborious bolt disassembly and assembly with traditional tools.
2. Aerospace Precision Component Assembly:During the assembly of aircraft engines and aerospace high-pressure pipelines, ultra-high pressure tools are required to complete the pressing of precision components. The 0.8/0.16 L/min dual flow of this pump can accurately control the pressing speed, and the 10,000 PSI high pressure ensures tight component fitting; the lightweight design of the equipment is convenient for moving in the narrow space of the aerospace assembly workshop, adapting to the aerospace assembly needs of "high precision and ultra-high pressure" and improving the qualification rate of component assembly.
3. Heavy Equipment Emergency Repair:During the maintenance of large excavators, crushers and other heavy equipment at mining and infrastructure sites, ultra-high pressure hydraulic tools need strong power support. The 10,000 PSI high pressure of this pump can drive the tools to quickly repair equipment faults; the 340 L/min air flow is compatible with on-site air compressors without external power supply; the 8.5 kg lightweight design is convenient for carrying with the vehicle, adapting to the scenario of "no electricity outdoors and emergency ultra-high pressure repair" and shortening the fault repair time.
4. Power Industry High-Pressure Equipment Maintenance:During the maintenance of high-voltage transmission line towers and substation transformers, ultra-high pressure tools are required to disassemble and assemble large fasteners. The 110-145 PSI input air pressure of this pump is compatible with on-site mobile air compressors, and the 0.8 L/min no-load flow quickly starts the tools; the pressure relief device avoids residual high pressure in the tools after maintenance, ensuring the safety of operators, adapting to the power maintenance scenario of "high voltage and high pressure" and ensuring stable operation of the equipment.

IV. Frequently Asked Questions (FAQ)

Q1:What safety precautions should be taken when using the 10,000 PSI ultra-high pressure output?

Q2:How to confirm whether the on-site air compressor is compatible with the pump's input air pressure requirements?
