1500kg CE EV Battery Lifting Table 2100mm Max Height For Auto Repair Shops EV Battery Maintenance
1500kg CE EV Battery Lifting Table 2100mm Max Height For Auto Repair Shops EV Battery Maintenance
Specifications
Brand Name :
YEEDA
Model Number :
YD88-001
Certification :
CE
Place of Origin :
Zhejiang，China
MOQ :
50pcs
Payment Terms :
T/T
Supply Ability :
500PCS/MONTH
Delivery Time :
30-45DAYS
Packaging Details :
Carton Box or Crate
Description

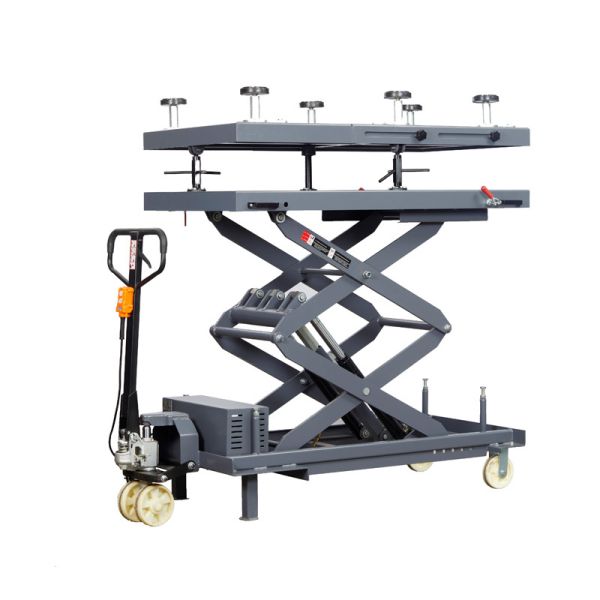

EV Battery Pack Scissor Mobile Lifting Table

Product Specifications

  • Model No.: YD88 - 001
  • Lifting Capacity: 1500kg
  • Max. Lifting Height: 2100mm
  • Min. Height: 800mm
  • Platform Length: 1500 - 1800mm
  • Platform Width: 800mm
  • Voltage: 220V
  • Lifting Time: ≤55S
  • Frequency: 50HZ
  • Net Weight: 500KG

Product Details

This EV Battery Pack Scissor Mobile Lifting Table is a specialized tool designed for the disassembly and fixing of electric vehicle (EV) battery packs. It is also suitable for handling engine, gearbox, drive axle, fuel tank, suspension, and chassis components of traditional vehicles.
The working table can be tilted by adjusting two independent screws with T - shape handles, allowing for flexible positioning. It can be extended to a length of 1800mm, expanding its range of applications. A larger base frame ensures better stability and reliability during operation. Control is convenient with a hand - held button that features a stop function, and there is an electrically released mechanical locking system for safety.

Application Scenarios

It is ideal for use in automotive repair shops and garages. For EV maintenance, it facilitates the safe handling and repair of battery packs. In traditional vehicle repair, it assists with the installation and removal of heavy components like engines and gearboxes, making these tasks more efficient and less labor - intensive.

Frequently Asked Questions

  1. Q: What is the maximum weight this lifting table can handle?
    A: The lifting capacity of this table is 1500kg, which is suitable for most EV battery packs and heavy vehicle components.
  2. Q: How long does it take to lift to the maximum height?
    A: The lifting time to the maximum height (2100mm) is ≤55 seconds, ensuring quick and efficient operation.
  3. Q: Can the working table be adjusted for different angles?
    A: Yes, the working table can be tilted by adjusting two independent screws with T - shape handles to achieve different angles.
  4. Q: Is the lifting table easy to move?
    A: As a mobile lifting table, it is designed for mobility, making it convenient to move around in workshops and garages.
