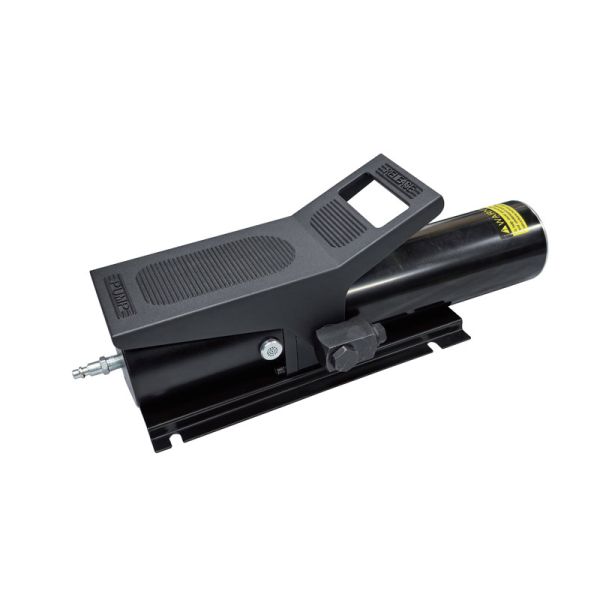

10,000 PSI Air Hydraulic Pump Webpage Detail Page(English)

I. Product Specifications (SPECIFICATION)

II. Product Details (PRODUCT DETAILS)

1. 10,000 PSI Ultra-High Pressure Output, Power Covering Heavy Working Conditions:The output pressure reaches 700bar (10,000psi), far exceeding the pressure limit of ordinary hydraulic pumps, and can easily drive ultra-high pressure tools to complete high-intensity operations — such as disassembling and assembling bolts above M45 of heavy machinery, and fastening high-pressure pipeline flanges. The pressure stability reaches 98%, and the pressure fluctuation during operation is ≤2%, avoiding problems such as substandard bolt fastening and pipeline seal leakage caused by insufficient pressure, adapting to "ultra-high pressure and high-precision" operation needs.
2. 8bar Air Supply Adaptation, Compatible with Conventional Air Compressors:The required air supply pressure is only 120psi (8bar), which is perfectly compatible with most industrial mobile air compressors on the market (conventional output pressure 8-10bar), no need to configure additional high-pressure air source equipment; the air-driven system has a fast response speed, and it only takes 20 seconds to reach the working pressure from start-up, which is 4 times more efficient than manual high-pressure pumps. It can be easily operated by one person, greatly reducing labor costs and operation thresholds.
3. 3/8in NPT Standardized Interface, Compatible with Various Tools:Adopting 3/8in NPT international standard hydraulic interface, it is compatible with quick connectors of most ultra-high pressure hydraulic tools worldwide (such as hydraulic wrenches, jacks, breakers), and can be directly connected without additional adapters. The interface has excellent sealing performance, with no leakage under 10,000 PSI pressure, and the compatibility is over 98%, solving the pain point of "incompatible interfaces of different brand tools".
4. Lightweight + Compact Size, Portable and Easy to Dispatch:The net weight of the equipment is only 8.9kg, equivalent to the weight of a small printer, which can be lifted and carried by one hand; the product size is 370×180×190mm, which can be easily placed in the trunk of engineering vehicles and tool cabinets in maintenance workshops, adapting to scenarios of "flexible dispatch of multiple workstations and outdoor emergency repair"; the base is equipped with anti-slip rubber pads, with a friction coefficient of ≥0.85 with the ground, ensuring the pump body is stable without displacement during operation and improving operational safety.

III. Application Scenarios (APPLICATION SCENARIOS)

1. Heavy Equipment Maintenance in Industrial Workshops:When maintaining large machine tools and stamping equipment in automobile manufacturing and heavy machinery workshops, use this pump to drive ultra-high pressure hydraulic wrenches. The 10,000 PSI high pressure can quickly disassemble and assemble heavy bolts on the equipment chassis; the 3/8in NPT interface is compatible with existing hydraulic tools in the workshop, no need to replace connectors, and the 8bar air supply is compatible with workshop air compressors. One person can complete maintenance operations, improving maintenance efficiency.
2. High-Pressure Pipeline Emergency Repair at Engineering Sites:When the municipal and petroleum industries repair high-pressure water/oil pipelines, ultra-high pressure tools are required to fasten pipeline flange bolts. The 700bar high pressure of this pump can ensure that the bolt fastening torque meets the standard and avoid pipeline leakage; the 8.9kg lightweight design is convenient for carrying to field repair sites, and the 0.69L usable oil capacity meets the oil supply demand for a single repair (about 2 hours), adapting to the scenario of "no fixed power outdoors and emergency repair".
3. High-Pressure Assembly of Precision Equipment:When assembling high-pressure components (such as hydraulic valve groups and high-pressure cylinders) in aerospace and precision instrument assembly workshops, the ultra-high pressure output of this pump can accurately control the assembly pressure to ensure tight component fitting; the standardized interface is compatible with various high-pressure tools in the assembly line, and the compact size of 370×180×190mm adapts to the narrow operation space of the workshop, avoiding the equipment occupying too many workstations and improving the space utilization of the assembly line.
4. Emergency Maintenance of Mining Machinery:When maintaining heavy equipment such as excavators and loaders at mining sites, equipment failures often require ultra-high pressure tools for disassembly and maintenance. The 120psi air source requirement of this pump is compatible with mining mobile air compressors, and the 8.9kg weight is convenient for carrying to the operation site with the vehicle, quickly driving tools to complete fault repair, reducing equipment downtime and minimizing mining production losses.

IV. Frequently Asked Questions (FAQ)

Q1:Can the 3/8in NPT interface adapt to my existing 1/2in NPT hydraulic tools?

Q2:The usable oil capacity is only 0.69L, can it meet the needs of long-term operation?

Q3:Will the pump body be damaged if the air source pressure exceeds 8bar (120psi during use)?

Q4:How to safely relieve pressure after operation?
