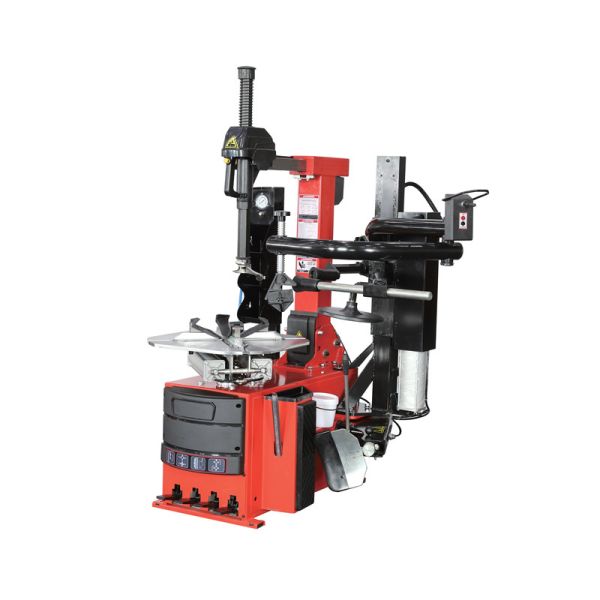

YD82-004 Tire Changer:Efficient,Durable,for Auto Shops/Truck Stations/Fleets
YD82-004 Tire Changer:Efficient,Durable,for Auto Shops/Truck Stations/Fleets
Specifications
Brand Name :
YEEDA
Model Number :
YD82-004
Certification :
CE
Place of Origin :
Zhejiang，China
MOQ :
50pcs
Payment Terms :
T/T
Supply Ability :
500PCS/MONTH
Delivery Time :
30-45DAYS
Packaging Details :
Carton Box or Crate
Voltage :
110/220/380V
Power :
0.75/1.1Kw
Turntable Rotation :
7rpm
Max. Wheel Diameter :
1100mm
Tire Width :
3-14"
Rim Clamp (Outside) :
9-21"
Description

I. Product Specifications

1. Core Parameter Summary Table

Specification Category Details
Model No. YD82-004
Voltage 110/220/380V
Power 0.75/1.1Kw
Turntable Rotation 7rpm
Max. Wheel Diameter 1100mm
Tire Width 3-14"
Rim Clamp (Outside) 9-21"
Rim Clamp (Inside) 13-25"
Working Pressure 8-10bar
Net Weight/Gross Weight 285Kg/315kg
Packing Size 1120860960mm
Helper Arm Packing Size 1100450300mm

2. Structural & Material Specifications

Specification Category Details
Mounting Bar Enhanced S41 (high strength, resistant to deformation during operation)
Clamping Jaw Precision steel cast (firm, durable); equipped with protective sleeve (protects tires and rims)
Helper Arm Auto - operated (speeds up tire mounting/demounting)
Bead Breaker Universal (suitable for various tire types)
Pedal Iron stamping (durable for life; optional aluminum pedal available)
Body Material Thick sheet material (strong rigidity, dignified design)
Inflation - Tool Box Vertical (elegant appearance)

II. Product Details

The YD82-004 Tire Changer is engineered to address key challenges in tire service: "low efficiency in tire mounting/demounting, potential damage to tires/rims, and limited compatibility with different tire sizes". With "enhanced structural components + precision steel casting + auto helper arm" as core strengths, it delivers efficient and safe tire service:

1. Enhanced Mounting Bar & Precision Clamping Jaw

  • Enhanced S41 Mounting Bar: Boasts superior strength, ensuring it won't deform during operation. This reliability is crucial for handling heavy - duty tire - changing tasks, such as those with large truck tires.
  • Precision Steel - Cast Clamping Jaw: The jaw, made from precision steel cast, is firm and durable. Plus, the protective sleeve provides comprehensive protection for tires and rims, preventing scratches or other damages during the changing process.

2. Auto Helper Arm for Efficiency

The auto helper arm simplifies tire mounting and demounting, making these processes quicker and easier. It reduces the physical effort required by technicians, allowing them to service more tires in less time, which is a big advantage for busy auto repair shops.

3. Universal Compatibility & Robust Build

  • Universal Bead Breaker: Is more suitable for operation on various tire types, from passenger car tires to larger truck tires.
  • Thick Sheet Body & Durable Pedal: The body, constructed from thick sheet material, has strong rigidity and a dignified design. The iron stamping pedal is durable for life, and an optional aluminum pedal is also offered for those seeking alternative durability options.

III. Application Scenarios

1. Auto Repair Shop

Scenario: An auto repair shop services a variety of vehicles, from small passenger cars to medium - sized trucks, with tire sizes ranging from 9” to 25”. They need a tire changer that can handle different tire sizes efficiently and without damaging tires or rims. Operation: Use the YD82-004 to change tires. Adjust the rim clamp position (outside for 9-21” rims, inside for 13-25” rims) via the slider. The auto helper arm assists in mounting/demounting, and the protective sleeve on the clamping jaw ensures tire/rim safety. Effect: Efficiently handles diverse tire sizes; protects tires/rims; boosts shop productivity.

2. Truck Service Station

Scenario: A truck service station focuses on servicing large trucks with tires up to 1100mm in diameter and 14” in width. They require a robust tire changer that can withstand heavy - duty use. Operation: Utilize the YD82-004’s max wheel diameter capacity (1100mm) and tire width range (3-14”). The enhanced S41 mounting bar handles the stress of large truck tires, and the 8-10bar working pressure ensures proper bead breaking. Effect: Robust build handles heavy truck tires; reliable for frequent heavy - duty use.

3. Fleet Maintenance Center

Scenario: A fleet maintenance center manages a fleet of vehicles with various tire sizes. They need a tire changer that offers consistent performance and easy operation for their technicians. Operation: Technicians use the YD82-004, taking advantage of the auto helper arm for quick tire changes. The universal bead breaker works on all fleet tire types, and the durable iron pedal withstands constant use. Effect: Consistent performance for fleet maintenance; easy operation reduces technician fatigue.

IV. Frequently Asked Questions

Q1: How to adjust the clamping range for different rim sizes?

A1: To adjust the clamping range, simply change the position of the slider. This allows the rim clamp to fit different rim sizes, both from the outside (9-21”) and inside (13-25”). Ensure the slider is securely locked in place after adjustment to prevent movement during operation.

Q2: Can the helper arm be operated manually if there's a power issue?

A2: The helper arm is designed for auto operation. In case of a power issue, manual operation is not feasible. It's recommended to ensure a stable power supply or have a backup power source for uninterrupted use.

Q3: What maintenance is required for the clamping jaw's protective sleeve?

A3: Regularly inspect the protective sleeve for wear and tear. If any damage is found, replace it promptly to continue protecting tires and rims. Also, keep the sleeve clean from debris to maintain its effectiveness.

Q4: Is the tire changer compatible with low - profile tires?

A4: Yes, the YD82-004 is compatible with low - profile tires. The precision clamping jaw and protective sleeve, along with the auto helper arm, ensure safe and efficient changing of low - profile tires without causing damage.
