200LB Lift Capacity Lithium Battery Wheel Lift with Locking Caster Base for Garage Wheel Handling
200LB Lift Capacity Lithium Battery Wheel Lift with Locking Caster Base for Garage Wheel Handling
200LB Lift Capacity Lithium Battery Wheel Lift with Locking Caster Base for Garage Wheel Handling
200LB Lift Capacity Lithium Battery Wheel Lift with Locking Caster Base for Garage Wheel Handling
Specifications
Model Number :
YD10-016A
Model :
YD10-016A
Supply Ability :
2000pair/Month
Roller Distance Center to Center :
12.5" / 318.75mm
Delivery Time :
35 DAYS
N.W. / G.W. :
123LB(59KG) / 153LB(69.5KG)
MOQ :
50 pcs
Packaging Details :
Plywood Crate
Overall Height :
85.25" / 2165mm
Payment Terms :
T/T,L/C
Min. Lowered Height at Wheel Roller :
2.5" / 65mm
Certification :
CE
Power Source :
Lithium Battery
Place of Origin :
Zhejiang , China
Max Lift Capacity :
200LB / 90.7KG
Brand Name :
YEEDA
Product Name :
Lithium Battery Wheel Lift YD10-016A
Description
200LB Lithium Battery Wheel Lift with Casters YD10-016A
200LB Lift Capacity Lithium Battery Wheel Lift with Locking Caster Base for Garage Wheel Handling
This lithium battery wheel lift is built for garage and workshop tire, wheel, and hub handling. Model YD10-016A uses a lithium battery power system with lift controls on the unit and includes a charger as shown. It is designed to raise and position wheels with a max lift capacity of 200LB / 90.7KG. The minimum lowered height at the wheel roller is 2.5" / 65mm, and the roller distance center to center is 12.5" / 318.75mm.

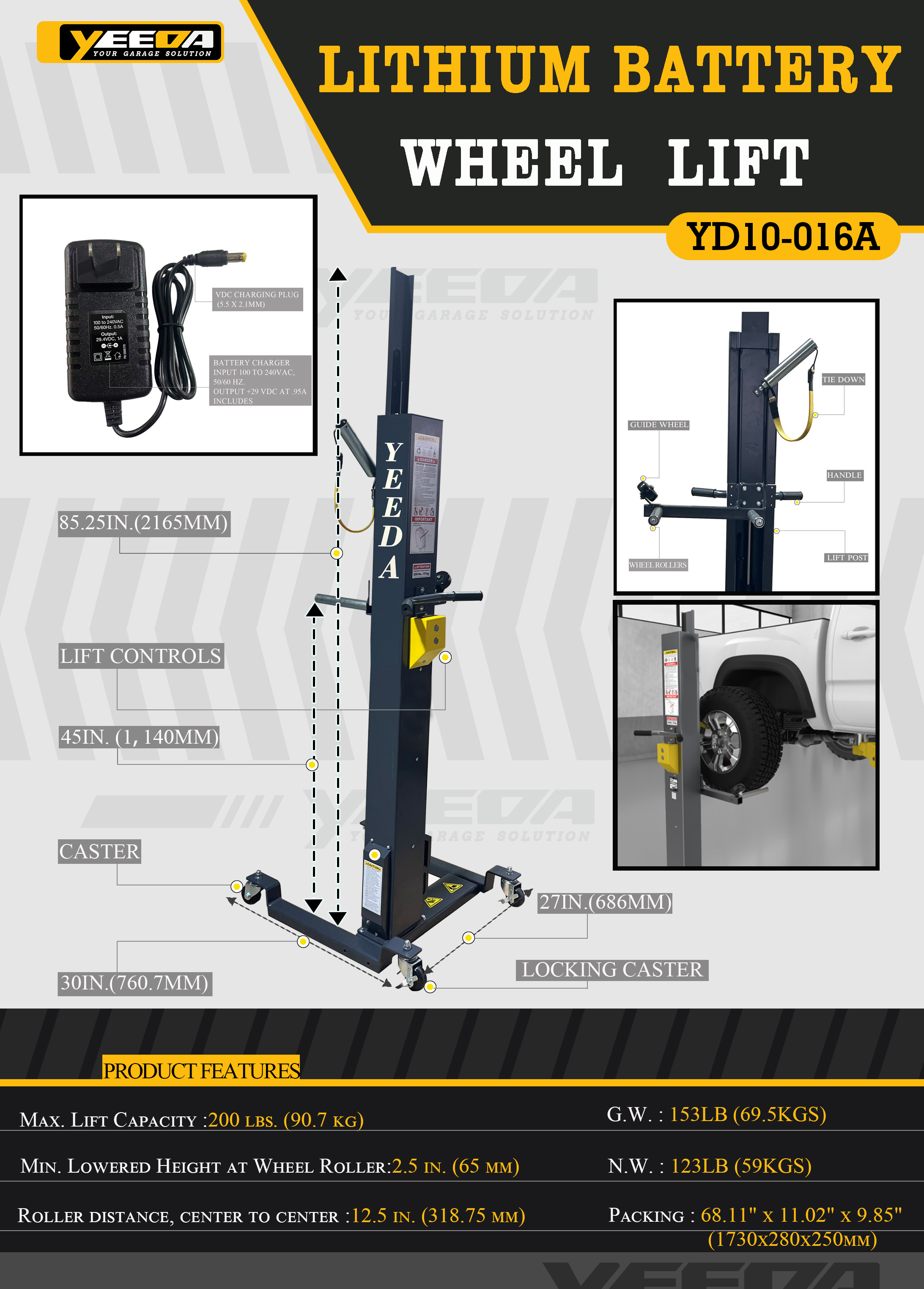

Dimensions from the image: overall height 85.25" / 2165mm, lift controls height reference 45" / 1140mm, base width 30" / 760.7mm, and length with locking caster 27" / 686mm. The base is fitted with casters and a locking caster for mobility and stability. Weight and packing: G.W. 153LB / 69.5KGS, N.W. 123LB / 59KGS, packing size 68.11" x 11.02" x 9.85" / 1730 x 280 x 250mm.
Product Specifications
Item Specification
Model YD10-016A
Product Type Lithium Battery Wheel Lift
Power Source Lithium Battery
Max Lift Capacity 200LB / 90.7KG
Min. Lowered Height at Wheel Roller 2.5" / 65mm
Roller Distance, Center to Center 12.5" / 318.75mm
Overall Height 85.25" / 2165mm
Lift Controls Height Reference 45" / 1140mm
Base Width 30" / 760.7mm
Length / Locking Caster Reference 27" / 686mm
Mobility Caster / Locking Caster
G.W. 153LB / 69.5KGS
N.W. 123LB / 59KGS
Packing Size 68.11 x 11.02 x 9.85" / 1730 x 280 x 250mm
Application Garage Wheel/Tire Handling
Key Features
  • Lithium battery powered wheel lift
  • Max lift capacity 200LB / 90.7KG
  • Lift controls on unit
  • Minimum lowered height at wheel roller 2.5" / 65mm
  • Roller distance center to center 12.5" / 318.75mm
  • Mobile base with caster and locking caster
  • Charger included as shown
  • Suitable for garage wheel and tire handling
Application
This lithium battery wheel lift is suitable for garage and workshop use when lifting, positioning, moving, or servicing wheels and tires. The battery operation, lift controls, rollers, and locking caster base help with controlled wheel handling.
Product Questions and Answers
What is the model and power source?
Model YD10-016A, lithium battery powered.
What is the max lift capacity?
Max lift capacity is 200LB / 90.7KG.
What is the minimum lowered height at the wheel roller?
2.5" / 65mm.
What is the roller distance?
Roller distance center to center is 12.5" / 318.75mm.
What are the main dimensions?
Overall height 85.25" / 2165mm, base width 30" / 760.7mm, length reference 27" / 686mm.
Does it have mobility features?
Yes, it has casters and a locking caster.
What are the weight and packing details?
G.W. 153LB / 69.5KGS, N.W. 123LB / 59KGS. Packing size 68.11 x 11.02 x 9.85" / 1730 x 280 x 250mm.
Where is this lift used?
Used in garages and workshops for wheel and tire handling.
