Custom Hose Assemblies Compatible Exceed Oe Quality ISO 45001 DAKKS SGS
Custom Hose Assemblies Compatible Exceed Oe Quality ISO 45001 DAKKS SGS
Custom Hose Assemblies Compatible Exceed Oe Quality ISO 45001 DAKKS SGS
Custom Hose Assemblies Compatible Exceed Oe Quality ISO 45001 DAKKS SGS
Specifications
Brand Name :
DME&JDE
Model Number :
Hose Assemblies
Certification :
MSHA & BV & GOST & IATF 16949 & ISO 9001 & ISO 14001 & ISO 45001 & DAKKS & SGS & MA & DEKRA
Place of Origin :
Hengshui City, Hebei Province, China
MOQ :
10 (MOQ)
Price :
US$ 29.9-39.9
Payment Terms :
T/T
Supply Ability :
10 (MOQ)US$ 29.9-39.9
Delivery Time :
30days
Packaging Details :
wooden
Product Name :
Hose Assemblies
Keyword :
Hydraulic Hose Assembly
Service Focus :
Assembly Order Coding, Length & Angle Measurement Standard
Assembly Angle Tolerance :
± 3°
Measurement Reference :
End face of the fitting / Center of the bent fitting core
Key Specifications :
Displacement Angle, Overall Length, Spring Guard (RS), Natural Bending Direction
Order Code Formats :
Left Fitting Part No / Right Fitting Part No × Hose Part No × Overall Length V[Angle] + RS/[Bending Direction]
Application Scenario :
DME&JDE Hydraulic Hose Assembly Customization
Description

Dme&jde Hose Assemblies Compatible Exceed Oe Quality

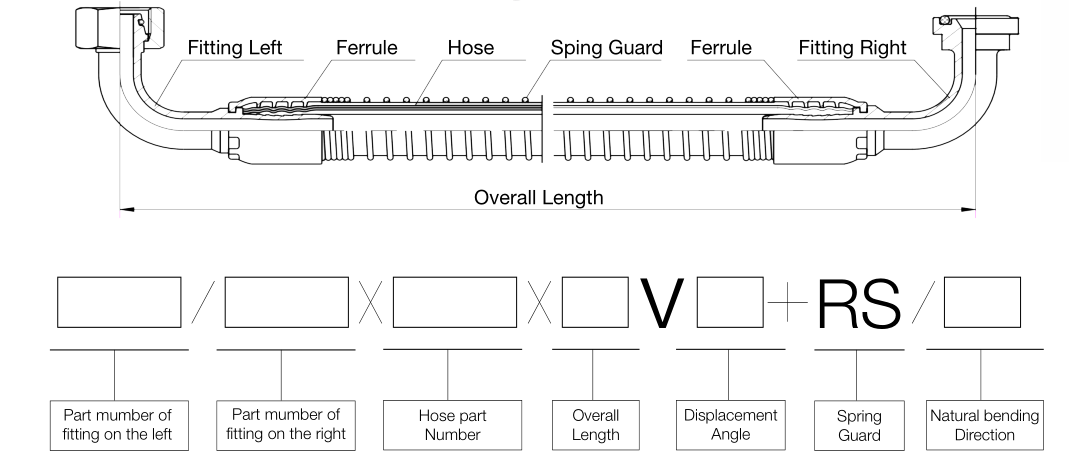

How to order Assembly

Custom Hose Assemblies Compatible Exceed Oe Quality ISO 45001 DAKKS SGS

Order example 1: S20491-30-12T/S87391-12-12x 2T12x1200V90+RS/SSX
If there is no assembly angle, natural curvature direction, or spring jacket, these contents can be omitted in the code.
Example 2: When fitting 1 and fitting 2 are the same, only one fitting code is marked.
S20491-30-12Tx 2T12x1200V90

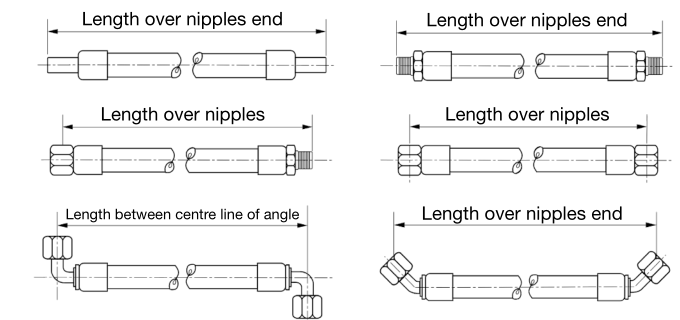

How to measure Assembly

The length of the hose assembly is measured from the end face of the fitting or the center of the bent fitting core as the reference.

Custom Hose Assemblies Compatible Exceed Oe Quality ISO 45001 DAKKS SGS

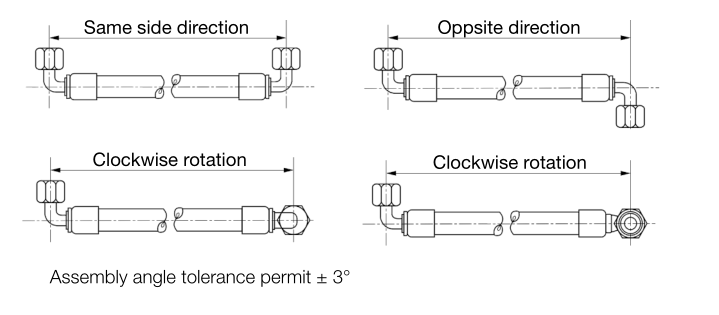

How to Measure Displacement Angle

To align the hose assembly in a straight line, one of the fittings is positioned in the vertical direction:
Measure the angle between the other fitting and the vertical fitting in a clockwise direction.
This angle is known as the assembly angle.

Custom Hose Assemblies Compatible Exceed Oe Quality ISO 45001 DAKKS SGS

Quality Control

Custom Hose Assemblies Compatible Exceed Oe Quality ISO 45001 DAKKS SGS

Certificate

Custom Hose Assemblies Compatible Exceed Oe Quality ISO 45001 DAKKS SGS

Related Product

Custom Hose Assemblies Compatible Exceed Oe Quality ISO 45001 DAKKS SGS

Material Support

Custom Hose Assemblies Compatible Exceed Oe Quality ISO 45001 DAKKS SGS
