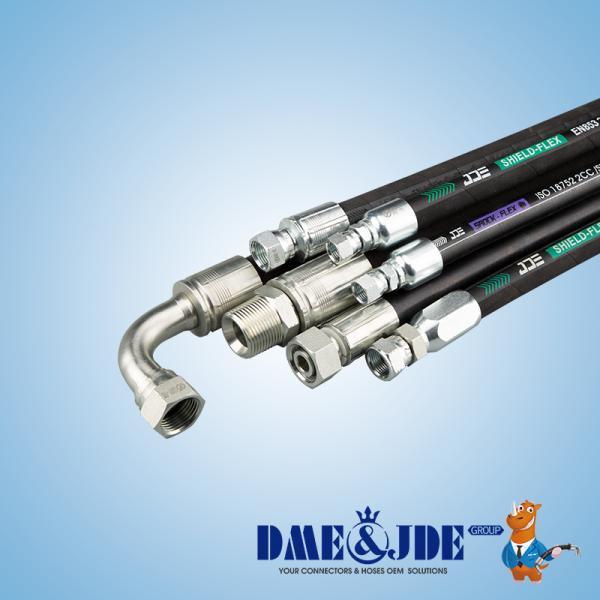

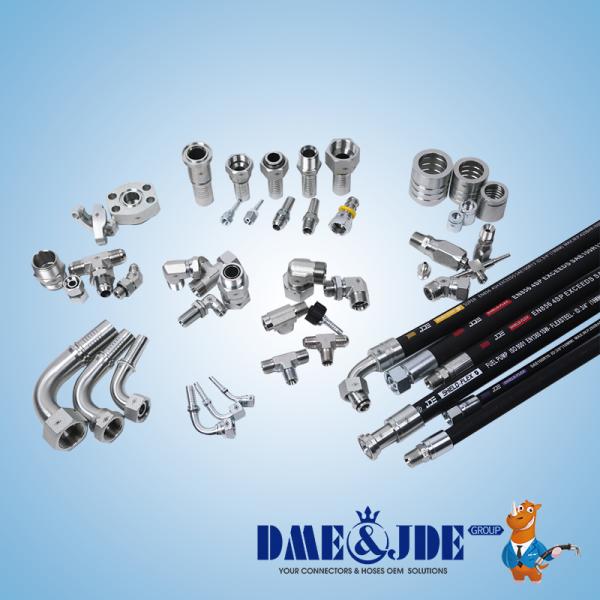

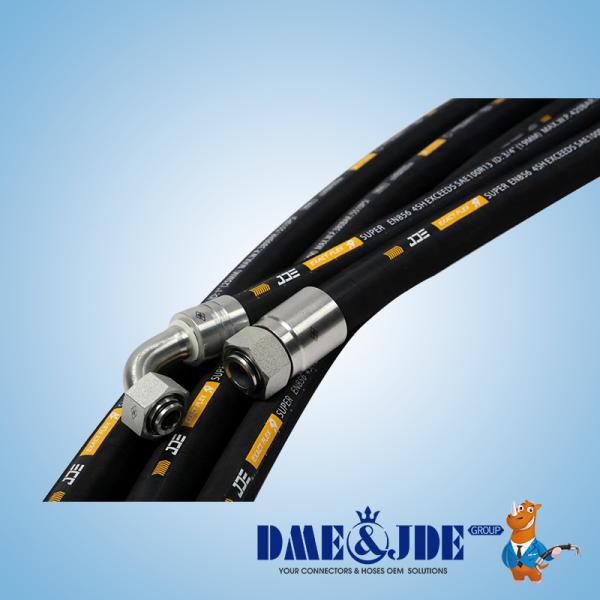

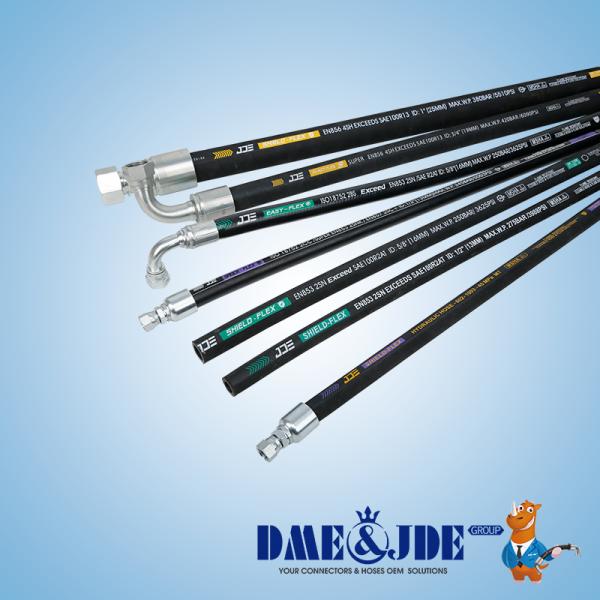

Natural Bending Direction Premade Hydraulic Hose Assemblies Standard
Natural Bending Direction Premade Hydraulic Hose Assemblies Standard
Natural Bending Direction Premade Hydraulic Hose Assemblies Standard
Natural Bending Direction Premade Hydraulic Hose Assemblies Standard
Natural Bending Direction Premade Hydraulic Hose Assemblies Standard
Natural Bending Direction Premade Hydraulic Hose Assemblies Standard
Natural Bending Direction Premade Hydraulic Hose Assemblies Standard
Natural Bending Direction Premade Hydraulic Hose Assemblies Standard
Specifications
Brand Name :
DME&JDE
Model Number :
Hose Assemblies
Certification :
MSHA & BV & GOST & IATF 16949 & ISO 9001 & ISO 14001 & ISO 45001 & DAKKS & SGS & MA & DEKRA
Place of Origin :
Hengshui City, Hebei Province, China
MOQ :
10 (MOQ)
Price :
US$ 29.9-39.9
Payment Terms :
T/T
Supply Ability :
10 (MOQ)US$ 29.9-39.9
Delivery Time :
30days
Packaging Details :
wooden
Product Name :
Hose Assemblies
Keyword :
Hydraulic Hose Assembly
Service Focus :
Assembly Order Coding, Length & Angle Measurement Standard
Assembly Angle Tolerance :
± 3°
Measurement Reference :
End face of the fitting / Center of the bent fitting core
Key Specifications :
Displacement Angle, Overall Length, Spring Guard (RS), Natural Bending Direction
Order Code Formats :
Left Fitting Part No / Right Fitting Part No × Hose Part No × Overall Length V[Angle] + RS/[Bending Direction]
Application Scenario :
DME&JDE Hydraulic Hose Assembly Customization
Description

Dme&jde Hose Assembly Natural Bending Direction Specification Guide

Natural Bending Direction

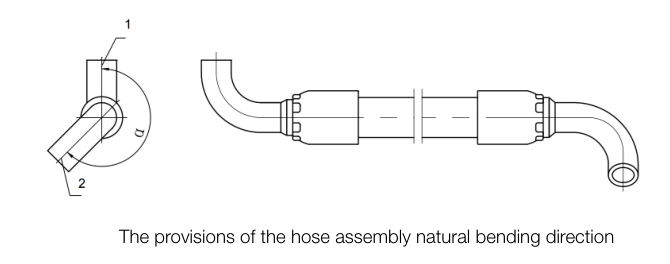

When both ends of the hose assembly are bent fittings, there is an angular relationship between the two bent fittings during assembly. To measure this, straighten the hose assembly and view it in a straight line. Position bent fitting 1 vertically upwards and measure the angle between bent fitting 2 and the vertically positioned bent fitting 1 in a clockwise direction. This angle is known as the assembly angle of the hose assembly and is represented by V. For example, if the assembly angle α is 225°, it is marked as V225.

Natural Bending Direction Premade Hydraulic Hose Assemblies Standard

When hoses are stored in coiled bundles, it becomes difficult to straighten them during assembly. When a section of the hose includes a bent fitting, there is a relationship between the bent fitting and the natural curvature of the hose.
Taking the plane in which the hose naturally lies as the horizontal plane.

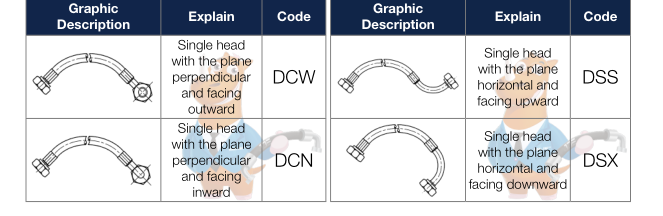

The bent fitting of the hose assembly can have the following four orientations when connected to another fitting at the other end:

Natural Bending Direction Premade Hydraulic Hose Assemblies Standard

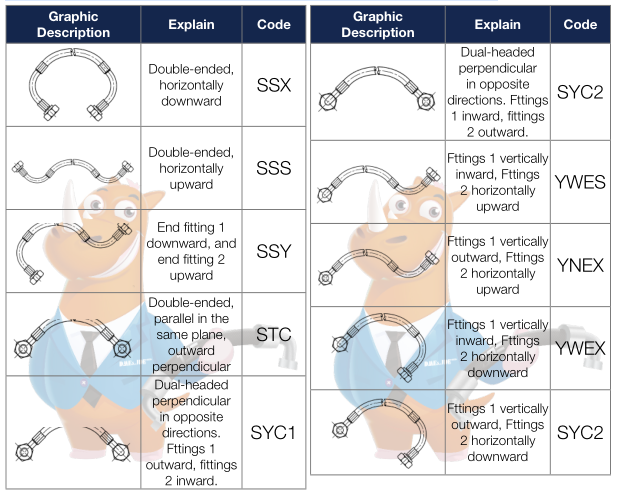

The ten possible configurations for bent end fittings in a hose assembly are as follows:
