6T Adjustable Hydraulic Static Warehouse Container Stationary Logistics Dock Leveler
6T Adjustable Hydraulic Static Warehouse Container Stationary Logistics Dock Leveler
6T Adjustable Hydraulic Static Warehouse Container Stationary Logistics Dock Leveler
6T Adjustable Hydraulic Static Warehouse Container Stationary Logistics Dock Leveler
Specifications
Brand Name :
HAOXIANG BRAND
Model Number :
HX-GTY 6×8
Certification :
CE/ISO
Place of Origin :
GUANGDONG,CHINA
MOQ :
1 unit
Price :
USD 1500-2000 /UNIT
Payment Terms :
T/T
Supply Ability :
5000 UNITS PER YEAR
Delivery Time :
7-15 working days
Packaging Details :
Naked packaging
Product Name :
Hydraulic dock leveler
Country of Origin :
Made in China
Operation Method :
Hydraulic
Lip Board Thickness :
15mm Anti-slip grooved plate
Device Size :
W1980 × L1830× H495mm
Adjustment Range :
+400mm/-300mm
Application :
Loading and unloading goods between trucks and warehouse
Power Source :
Electric
Power supply :
380V/50HZ
Description

6T Adjustable Hydraulic Static Warehouse Container Stationary Logistics Dock Leveler

Product Key Attributes

Parameter/FeatureSpecification Details
MovesStationary
CertificationCE, ISO
MaterialHigh-Duty Steel Structure
Driven TypeHydraulic
Adjustment RangeUp to 400 mm,Down to 300 mm


What is the Hydraulic Dock Leveler?
Dock Leveler uses a hydraulic power unit to lift the upper main panel of the dock leveler through main oil cylinder, and a small auxiliary oil cylinder pushes out the lip plate. It is very useful when dock height and truck height is different,and through the principle of the dock leveler's self-weight drop, the lip plate is lifted to the rear of the truck to complete the entire action.Hydraulic dock leveler is currently the most commonly used and also the most widely used loading and unloading platform, with stable performance, simple operation, stable operation, low maintenance rate and easy repair.
What are the Benefits of the Hydraulic Dock Leveler?
1.All-hydraulic drive, easy operation
2.Lip plate is connected to the ramp with long axis, high-strength and reliable
3.Imported sealing part to guarantee good sealing performance of hydraulic system
4.Modular hydraulic station with good sealing quality
5.High strength "U"-shape design to ensure big load capacity without deformation
6.Skirt board is designed to prevent damage of toes
7.Supporting bar is arranged for internal maintenance
Products model and parameter series of the Hydraulic Dock Leveler.

Technical Parameter
Specifications, sizes and colors can be customized according to customer requirements
ModelEquipment specifications (mm)Load Capacity (t)Pit size (mm)Adjustment range (mm)
HX-GTY6×61830(W)×1830(L)×495(H)6-20T1870(W)×1830(L)×500(H)+400/-300
HX-GTY6.5×61980(W)×1830(L)×495(H)6-20T2020(W)×1830(L)×500(H)+400/-300
HX-GTY7×62130(W)×1830(L)×495(H)6-20T2170(W)×1830(L)×500(H)+400/-300
HX-GTY6×81830(W)×2280(L)×495(H)6-20T1870(W)×2280(L)×500(H)+400/-300
HX-GTY6.5×81980(W)×2280(L)×495(H)6-20T2020(W)×2280(L)×500(H)+400/-300
HX-GTY7×82130(W)×2280(L)×495(H)6-20T2170(W)×2280(L)×500(H)+400/-300
HX-GTY6×101830(W)×2850(L)×495(H)6-20T1870(W)×2850(L)×500(H)+400/-300
HX-GTY6.5×101980(W)×2850(L)×495(H)6-20T2020(W)×2850(L)×500(H)+400/-300

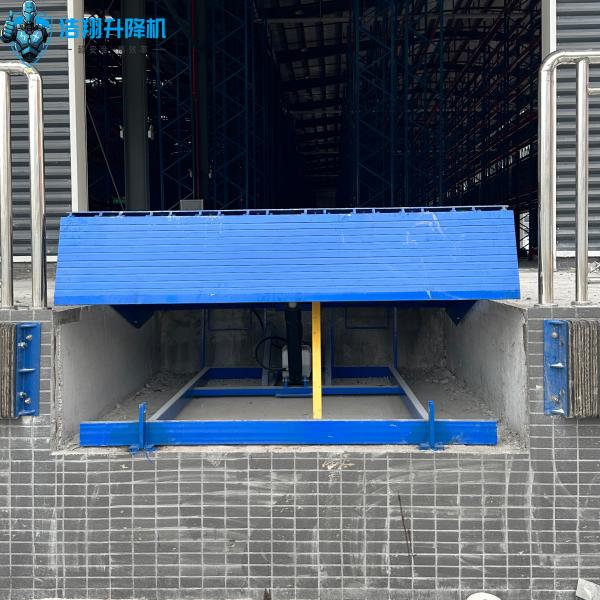

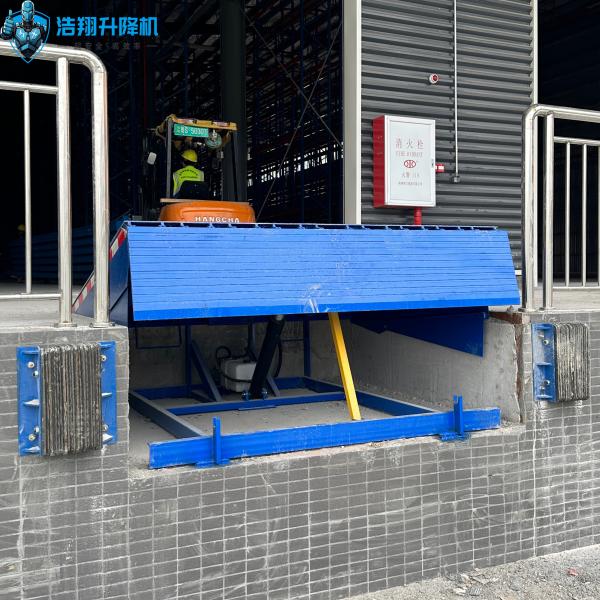

What does the Hydraulic Dock Leveler look like?
6T Adjustable Hydraulic Static Warehouse Container Stationary Logistics Dock Leveler
6T Adjustable Hydraulic Static Warehouse Container Stationary Logistics Dock Leveler
6T Adjustable Hydraulic Static Warehouse Container Stationary Logistics Dock Leveler
What is the name of our company and where we are?
Haoxiang: Pioneering Hydraulic Lifting Solutions Since 2005
Strategically located in Zhongshan's manufacturing hub, our 21,500㎡ state-of-the-art facility produces industry-leading hydraulic equipment. As a government-recognized high-tech enterprise, we combine 30 million RMB capital strength with German-engineered precision.
Differentiators:
Product Portfolio: Full range of hydraulic lifts, dock levelers, and goods lifts
Technology: AI-powered predictive maintenance systems for equipment
Safety: Compliance with EN 1570 and ASME B30.1 standards
Capacity: 15,000 units/year production capacity with 89% automation rate
Service: 24/7 national support with 45 mobile service units
6T Adjustable Hydraulic Static Warehouse Container Stationary Logistics Dock Leveler
6T Adjustable Hydraulic Static Warehouse Container Stationary Logistics Dock Leveler
