Sturdy Hydraulic Dock Leveler 6T-20T Slip-Resistant Steel Platform for Warehouse Cargo Loading
Sturdy Hydraulic Dock Leveler 6T-20T Slip-Resistant Steel Platform for Warehouse Cargo Loading
Sturdy Hydraulic Dock Leveler 6T-20T Slip-Resistant Steel Platform for Warehouse Cargo Loading
Sturdy Hydraulic Dock Leveler 6T-20T Slip-Resistant Steel Platform for Warehouse Cargo Loading
Specifications
Brand Name :
HAOXIANG BRAND
Model Number :
HX-GTY 6×5
Certification :
CE/ISO
Place of Origin :
GUANGDONG,CHINA
MOQ :
1 unit
Price :
USD 1500-2000 /UNIT
Payment Terms :
T/T
Supply Ability :
5000 UNITS PER YEAR
Delivery Time :
10-15 working days
Packaging Details :
Naked packaging
Certifications :
CE, ISO 9001
Motor Power :
3KW
Warranty :
1 year
Control System :
Push Button
Color :
Blue,Customizable
Material :
Steel
Description
Sturdy Hydraulic Dock Leveler 6T-20T Slip-Resistant Steel Platform for Warehouse Cargo Loading

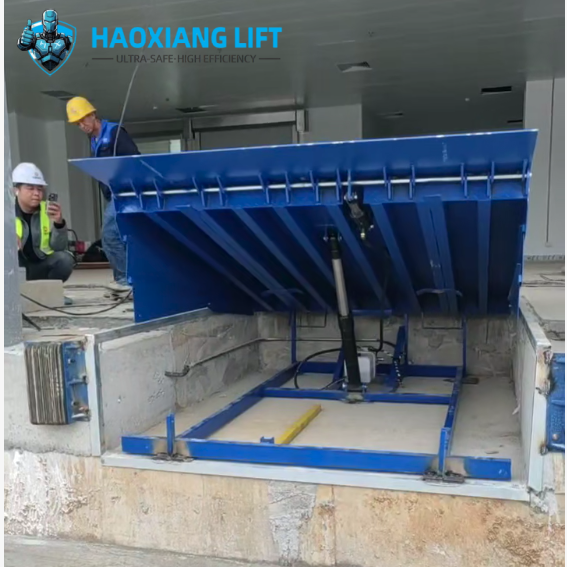

Dock levelers serve as the critical component for seamless cargo transfer, utilizing high-precision hydraulic systems: a main cylinder elevates the platform, while a secondary cylinder adjusts the lip plate to create a tight, gap-free connection with truck beds. This fixed hydraulic dock leveler flexibly adapts to varying heights and transport requirements, addressing the uneven load-handling limitations of traditional designs and integrating seamlessly with most trucks and containers.
Key Features and Benefits
  • Intuitive Electro-Hydraulic Operation System: The user-centric electro-hydraulic control streamlines operations, enhancing loading efficiency while slashing labor hours and operational costs.
  • Warp-Resistant High-Tensile Steel Frame: Constructed from manganese steel square tubes, the frame delivers superior load-bearing capacity and structural stability, resisting deformation under heavy-duty use.
  • Reliable Maintenance Safety Brace: A sturdy safety brace protects maintenance personnel during internal inspections or repairs of the dock bridge, minimizing on-site safety hazards.
  • Oil-Leak-Proof Hydraulic Assembly: The sealed, integrated hydraulic unit features tight closures to prevent oil leakage and ensure consistent long-term performance.
  • High-Power Hydraulic Cylinders: Equipped with a stable power pack, these cylinders provide strong driving force and reliable sealing, guaranteeing smooth, consistent lifting and lowering actions.
  • Anti-Slip Patterned Steel Platform: The platform’s patterned surface eliminates slip risks during elevation or descent, even in damp, dusty, or challenging working conditions.
  • Optimized 5-Degree Lip Plate Angle: This precision incline ensures a tighter, more secure fit with truck beds, reducing gaps to improve cargo transfer safety.
  • Long-Shaft Linkage Structure: The lip plate is connected via a long-shaft joint, reinforcing structural strength and overall operational reliability.
  • Rear U-Shaped Configuration: Facilitates smoother, more efficient vehicle docking, accelerating the cargo transfer process.
Technical Specifications

Specifications, sizes and colors can be customized according to customer requirements

Model Equipment specifications (mm) Load Capacity (t) Pit size (mm) Adjustment range (mm)
HX-GTY6×6 1830(W)×1830(L)×495(H) 6-20T 1870(W)×1830(L)×500(H) +400/-300
HX-GTY6.5×6 1980(W)×1830(L)×495(H) 6-20T 2020(W)×1830(L)×500(H) +400/-300
HX-GTY7×6 2130(W)×1830(L)×495(H) 6-20T 2170(W)×1830(L)×500(H) +400/-300
HX-GTY6×8 1830(W)×2280(L)×495(H) 6-20T 1870(W)×2280(L)×500(H) +400/-300
HX-GTY6.5×8 1980(W)×2280(L)×495(H) 6-20T 2020(W)×2280(L)×500(H) +400/-300
HX-GTY7×8 2130(W)×2280(L)×495(H) 6-20T 2170(W)×2280(L)×500(H) +400/-300
HX-GTY6×10 1830(W)×2850(L)×495(H) 6-20T 1870(W)×2850(L)×500(H) +400/-300
HX-GTY6.5×10 1980(W)×2850(L)×495(H) 6-20T 2020(W)×2850(L)×500(H) +400/-300
Product Images
Sturdy Hydraulic Dock Leveler 6T-20T Slip-Resistant Steel Platform for Warehouse Cargo Loading
Sturdy Hydraulic Dock Leveler 6T-20T Slip-Resistant Steel Platform for Warehouse Cargo Loading
Sturdy Hydraulic Dock Leveler 6T-20T Slip-Resistant Steel Platform for Warehouse Cargo Loading
About Our Company

Guangdong Haoxiang Machinery Manufacturing Co., Ltd. is located in Xiaolan Town, Zhongshan City. We are a high-tech enterprise focusing on hydraulic logistics equipment, a manufacturer with a special equipment license, a registered capital of 30 million, an annual output value of over 100 million, a large production workshop, and a plant area of 21,500 square meters.

We take "creating safe and convenient lifting products for users" as our original intention, and mainly engage in hydraulic lifting platforms, etc., positioning "super safe and efficient lifts". The product design is novel and the operation is stable, and they are used in many fields such as logistics. With advanced equipment and fine management, We are a benchmark in the industry such as warehousing management.

We have served more than 40,000 companies and 45 installation teams, which provide 2-hour door-to-door service in the Pearl River Delta and 24-hour door-to-door service nationwide, so that you can use our products without any worries.

Sturdy Hydraulic Dock Leveler 6T-20T Slip-Resistant Steel Platform for Warehouse Cargo Loading
Sturdy Hydraulic Dock Leveler 6T-20T Slip-Resistant Steel Platform for Warehouse Cargo Loading
