1800kg Vertical Freight Platform Lift Powder Coated Steel For Goods Lifting
1800kg Vertical Freight Platform Lift Powder Coated Steel For Goods Lifting
Specifications
Brand Name :
HAOXIANG BRAND
Model Number :
DSL1-6
Certification :
CS/ISO
Place of Origin :
GUANGDONG,CHINA
MOQ :
1 unit
Price :
USD1600- USD6800 / UNIT
Payment Terms :
T/T
Supply Ability :
2000 units per year
Delivery Time :
7-15 working days
Packaging Details :
Naked packaging
Net Weight :
1800kg
Certificate :
CE Certified
Pit Depth Requirement :
150–300mm
Platform Size :
2000×1800mm
Lifting Height :
6m
Load Capacity :
1t
Product Name :
Hydraulic Guide Rail Lift
Country of Origin :
Made in China
Control Mode :
Hydraulic
Rated Load :
Up to 30 tons,Customizable
Description

Heavy-Duty Hydraulic Guide Rail Lift, 1T Load, 6m Height, Powder-Coated Steel, Ideal for Indoor/Outdoor Goods Lifting

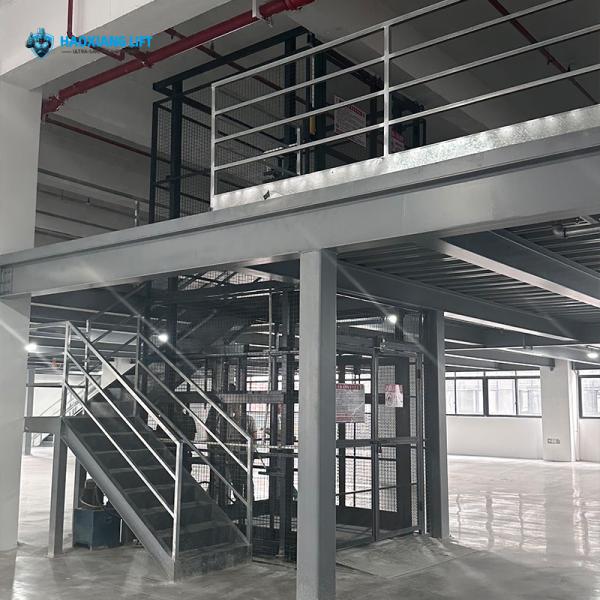

Perfectly suited for environments where forklifts or cranes are not feasible, the Hydraulic Guide Rail Lift is engineered for indoor and outdoor installations. The lift features a pit or non-pit installation method, with a platform size that can be customized according to the client's requirements. It integrates seamlessly into your existing building structure and simplifies the process of transporting pallets, equipment, or cargo between levels. Optional remote control and button control panels give users full command over vertical transport.

Technical Parameter
Specifications, sizes and colors can be customized according to customer requirements
Model Rated load (kg) Lifting stroke (mm) Lowering height (mm) Table size (mm) Lifting time Motor power (kw)
DSL1-3 1000 3000 100 2000×1800 6m/min 3
DSL1-12 1000 12000 100 2500×2000 6m/min 3
DSL2-4 2000 4000 150 2000×1800 6m/min 4
DSL2-10 2000 10000 200 3000×3500 6m/min 4
DSL3-5 3000 5000 150 3000×1800 6m/min 5.5
DSL3-8 3000 8000 150 2000×1700 6m/min 5.5
DSL4-5 4000 5000 250 3000×4000 6m/min 7.5
DSL4-10 4000 10000 150 5000×3000 6m/min 7.5
DSL5-6 5000 6000 400 5800×3000 6m/min 11
DSL10-15 10000 15000 400 7000×5000 6m/min 18.5
DSL15-9 15000 9000 800 8000×4000 6m/min 30
DSL15-10 15000 10000 800 9000×4500 6m/min 30
