Stationary Warehouse Mobile Container Truck Dock Leveler Hydraulic Goods Loading
Stationary Warehouse Mobile Container Truck Dock Leveler Hydraulic Goods Loading
Specifications
Brand Name :
HAOXIANG BRAND
Model Number :
HX-GTY 6×8
Certification :
CE/ISO
Place of Origin :
GUANGDONG,CHINA
MOQ :
1 UNIT
Price :
USD 1500-2000 /UNIT
Payment Terms :
T/T
Supply Ability :
5000 UNIT PER YEAR
Delivery Time :
7-15 working days
Packaging Details :
Naked packaging
Product Name :
Hydraulic dock leveler
Country of Origin :
Made in China
Lip Board Thickness :
15mm Anti-slip grooved plate
Load :
Up to 20 T
Application :
Warehouse, Factory, Distribution Center
Warranty :
12 Months
Power Source :
Electric
Articulated :
Open / Close
Color :
Green / Customizable
Working lift :
More Than 20000times
Description

Stationary Warehouse Mobile Container Truck Dock Leveler Hydraulic Goods Loading

What is the Hydraulic Dock Leveler?

With the rapid development of the logistics industry, modern multi-functional loading and unloading areas need advanced loading and unloading systems to support, so that the link between warehouses and vehicles is smoother, thereby greatly increasing the flow rate of goods. Unloading platforms are widely used in warehouses, logistics centers, etc. It has become the first choice for warehousing and logistics supporting equipment for many enterprises.
This product adopts imported hydraulic power unit drive device. Beautiful appearance, stylish, flexible account opening, safe and reliable, stable operation, low noise, no leakage, and easy to operate.

What are the Benefits of the Hydraulic Dock Leveler?

The Dock leveler is a loading and unloading platform designed for modern factories. It flexibly connects the cargo platform and the truck, allowing loading and unloading vehicles to directly enter and exit the truck to load and unload goods without obstruction, greatly improving the loading and unloading efficiency and enhancing the safety of workers and goods.HaoXiang dock leveler has the following 4 advantages:

Anti-skid pattern plate
Using unique anti-skid pattern plate, anti-skid and wear-resistant, it can be unloaded better even in rainy days.

Well-known brand motor
Adopting advanced motor, strong power, low noise, low failure, less maintenance

Milling groove process
Unique milling groove process, better anti-skid effect, improve the unloading efficiency of electric forklift.

Sealed oil cylinder
Adopting customized sealed oil cylinder, not easy to leak oil and good sealing.

Products model and parameter series of the Hydraulic Dock Leveler.

Technical Parameter
Specifications, sizes and colors can be customized according to customer requirements
Model Equipment specifications (mm) Load Capacity (t) Pit size (mm) Adjustment range (mm)
HX-GTY6×6 1830(W)×1830(L)×495(H) 6-20T 1870(W)×1830(L)×500(H) +400/-300
HX-GTY6.5×6 1980(W)×1830(L)×495(H) 6-20T 2020(W)×1830(L)×500(H) +400/-300
HX-GTY7×6 2130(W)×1830(L)×495(H) 6-20T 2170(W)×1830(L)×500(H) +400/-300
HX-GTY6×8 1830(W)×2280(L)×495(H) 6-20T 1870(W)×2280(L)×500(H) +400/-300
HX-GTY6.5×8 1980(W)×2280(L)×495(H) 6-20T 2020(W)×2280(L)×500(H) +400/-300
HX-GTY7×8 2130(W)×2280(L)×495(H) 6-20T 2170(W)×2280(L)×500(H) +400/-300
HX-GTY6×10 1830(W)×2850(L)×495(H) 6-20T 1870(W)×2850(L)×500(H) +400/-300
HX-GTY6.5×10 1980(W)×2850(L)×495(H) 6-20T 2020(W)×2850(L)×500(H) +400/-300

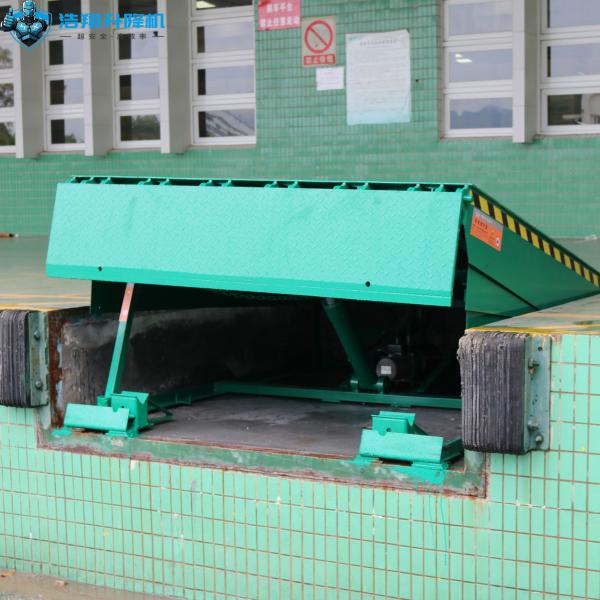

What does the Hydraulic Dock Leveler look like?

Stationary Warehouse Mobile Container Truck Dock Leveler Hydraulic Goods Loading

Stationary Warehouse Mobile Container Truck Dock Leveler Hydraulic Goods Loading

Stationary Warehouse Mobile Container Truck Dock Leveler Hydraulic Goods Loading

What is the name of our company and where we are?

Haoxiang: Pioneering Hydraulic Lifting Solutions Since 2005
Strategically located in Zhongshan's manufacturing hub, our 21,500㎡ state-of-the-art facility produces industry-leading hydraulic equipment. As a government-recognized high-tech enterprise, we combine 30 million RMB capital strength with German-engineered precision.

Differentiators:

Product Portfolio: Full range of hydraulic lifts, dock levelers, and goods lifts
Technology: AI-powered predictive maintenance systems for equipment
Safety: Compliance with EN 1570 and ASME B30.1 standards
Capacity: 15,000 units/year production capacity with 89% automation rate
Service: 24/7 national support with 45 mobile service units
