TRACK /RUBBER EXCAVATOR HX8065 ,6.5TONS RUBBER TRACK ,MINI EXCAVATOR
TRACK /RUBBER EXCAVATOR HX8065 ,6.5TONS RUBBER TRACK ,MINI EXCAVATOR
TRACK /RUBBER EXCAVATOR HX8065 ,6.5TONS RUBBER TRACK ,MINI EXCAVATOR
TRACK /RUBBER EXCAVATOR HX8065 ,6.5TONS RUBBER TRACK ,MINI EXCAVATOR
TRACK /RUBBER EXCAVATOR HX8065 ,6.5TONS RUBBER TRACK ,MINI EXCAVATOR
TRACK /RUBBER EXCAVATOR HX8065 ,6.5TONS RUBBER TRACK ,MINI EXCAVATOR
TRACK /RUBBER EXCAVATOR HX8065 ,6.5TONS RUBBER TRACK ,MINI EXCAVATOR
TRACK /RUBBER EXCAVATOR HX8065 ,6.5TONS RUBBER TRACK ,MINI EXCAVATOR
TRACK /RUBBER EXCAVATOR HX8065 ,6.5TONS RUBBER TRACK ,MINI EXCAVATOR
TRACK /RUBBER EXCAVATOR HX8065 ,6.5TONS RUBBER TRACK ,MINI EXCAVATOR
TRACK /RUBBER EXCAVATOR HX8065 ,6.5TONS RUBBER TRACK ,MINI EXCAVATOR
TRACK /RUBBER EXCAVATOR HX8065 ,6.5TONS RUBBER TRACK ,MINI EXCAVATOR
Specifications
Brand Name :
HXMG
Payment Terms :
T/T, Western Union
Delivery Time :
15 WORKING DATE
MOQ :
1 unit
Supply Ability :
100 UNITS PER MONTH
System Pressure :
28 Mpa
Packaging Details :
IN NUDE
Engine Model :
4TNV94
Model Number :
HX8065
Max Bucket Digging Force :
48 KN
Power / Revolution Speed :
35.9/2200KW/rpm
Place of Origin :
CHINA
Swing Speed :
0-11 rmp
Certification :
ISO CE
Max Arm Digging Force :
35 KN
Operation Weight :
6500 kg
Bucket Capacity :
0.21 cbm
Price :
18680USD
Gradeablity :
35 °
Description

Key attributes

Bucket capacity
0.21m3
Moving Type
Crawler Excavator
Engine Brand
KUBOTA
Hydraulic Pump Brand
Other
Hydraulic Cylinder Brand
Other
Hydraulic Valve Brand
Other
UNIQUE SELLING POINT
High operating efficiency
Warranty
1 Year
Make
HXMG
Machinery Test Report
Not Available
Video outgoing-inspection
Provided
Color
Yellow
Core Components
Motor, Pressure Vessel, Engine, PLC, Pump, Bearing, Gear
Brand Name
HXMG
Machine Weight
6500 kg
Max Digging Radius
6128mm
Maximum Digging Depth
3808mm
Maximum Digging Height
5499mm
Place of Origin
Shandong, China
Power(W)
42.4KW
Rated Speed
3.5km/h
After-sales Service Provided
Engineers available to service machinery
Color
Yellow or customized
overseas, Video technical support
Online support, Free spare parts

Packaging and delivery

Selling Units
Single item

Dimension --

Description Unit-Metric Unit-US
Overall length 5940mm 234in
Overall width 1880mm 74in
Overall height 2600mm 102.4in
Cabin height 2600mm 102.4in
Track length on ground 1990mm 78.3in
Track gauge 1480mm 58.3in
Min.ground clearance 353mm 14in
Swing radius at tail 1689mm 66.5in
Max.digging height 5499mm 216.5in
Max.dumping height 3845mm 151.4in
Max.digging depth 3808mm 150in
Max.vertical digging depth 2983mm 117.5in
Max.digging radius 6128mm 241.3in
Min.swing radius 2607mm 102.6in
Max.lifting distance of dozer blade 376mm 14.8in
Max.cutting depth of dozer blade 474mm 18.7in

Detailed Image

TRACK /RUBBER EXCAVATOR HX8065 ,6.5TONS RUBBER TRACK ,MINI EXCAVATORTRACK /RUBBER EXCAVATOR HX8065 ,6.5TONS RUBBER TRACK ,MINI EXCAVATORTRACK /RUBBER EXCAVATOR HX8065 ,6.5TONS RUBBER TRACK ,MINI EXCAVATORTRACK /RUBBER EXCAVATOR HX8065 ,6.5TONS RUBBER TRACK ,MINI EXCAVATOR

TRACK /RUBBER EXCAVATOR HX8065 ,6.5TONS RUBBER TRACK ,MINI EXCAVATOR TRACK /RUBBER EXCAVATOR HX8065 ,6.5TONS RUBBER TRACK ,MINI EXCAVATOR

Machine parts-- Machine parts--

Name: Engine Name: Swing motor

Japan KUBOTA engine, strong driving force, Imported famous brand swing motor, swing smoothly

low fuel consumption, high economic benefits.

Green, environment protection.

TRACK /RUBBER EXCAVATOR HX8065 ,6.5TONS RUBBER TRACK ,MINI EXCAVATOR TRACK /RUBBER EXCAVATOR HX8065 ,6.5TONS RUBBER TRACK ,MINI EXCAVATOR

Machine parts-- Machine parts--

Name: Dashboard Name: Display

LCD display, easy operation Easy to see the all working state

TRACK /RUBBER EXCAVATOR HX8065 ,6.5TONS RUBBER TRACK ,MINI EXCAVATOR TRACK /RUBBER EXCAVATOR HX8065 ,6.5TONS RUBBER TRACK ,MINI EXCAVATOR

Machine parts-- Machine parts--

Name: Main valve Name:Rear cover, can open three doors

Imported valve,reliable performance easy operation, convenient maintenanc

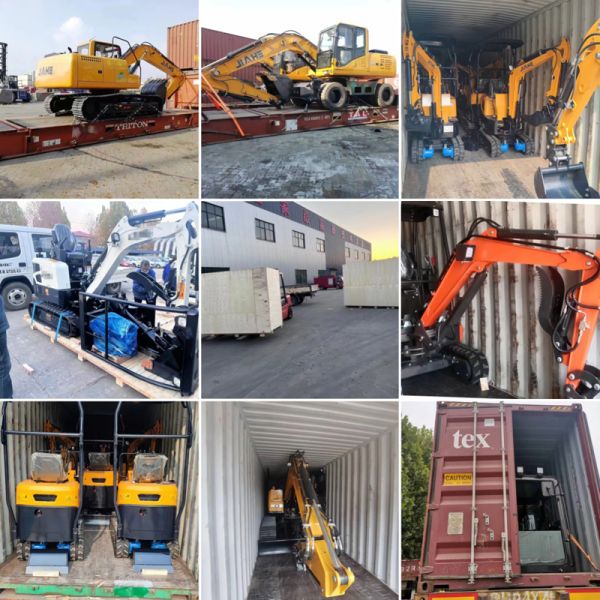

Packaging & Shipping

Packing &Delivery

Packaging--

♦2units into 40HQ

♦Bulk cargo or RO-RO

Delivery time--

♦Generally, 15days off production line.

♦Specific time shall be confirmed when order
