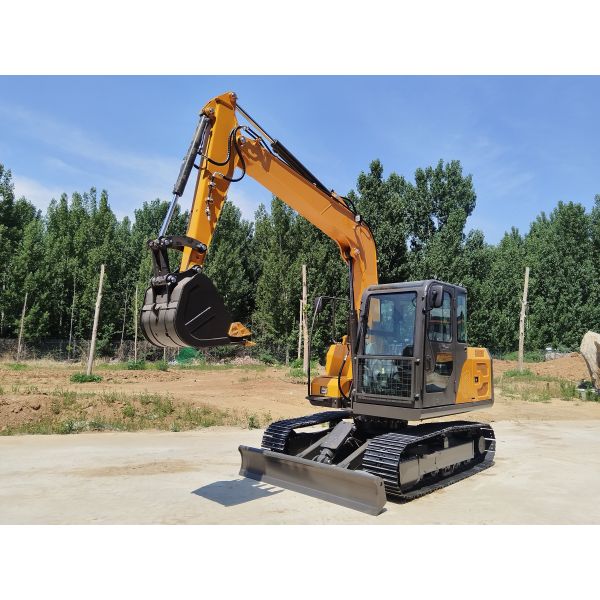

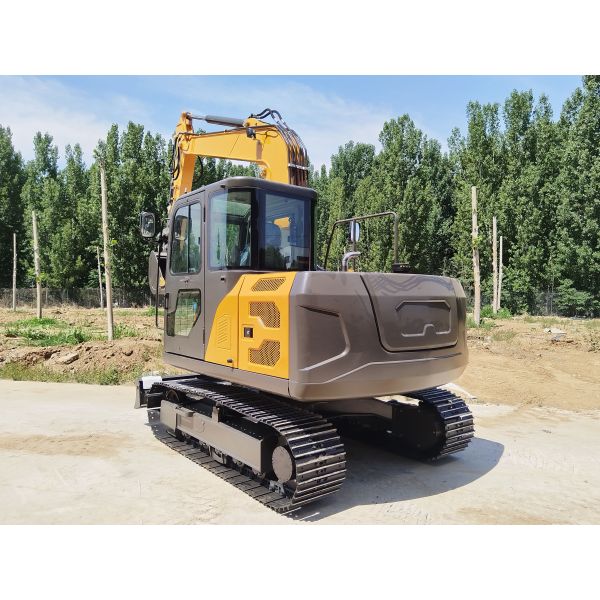

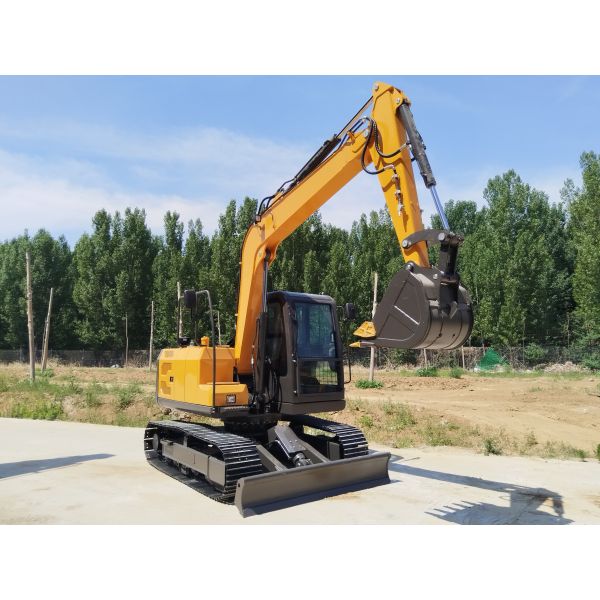

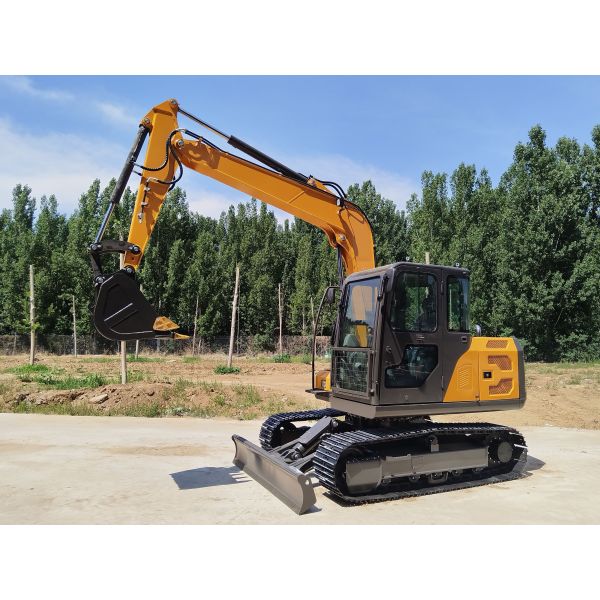

TRACK /RUBBER EXCAVATOR HX8075 ,7.5TONS RUBBER TRACK ,MINI EXCAVATOR
TRACK /RUBBER EXCAVATOR HX8075 ,7.5TONS RUBBER TRACK ,MINI EXCAVATOR
TRACK /RUBBER EXCAVATOR HX8075 ,7.5TONS RUBBER TRACK ,MINI EXCAVATOR
TRACK /RUBBER EXCAVATOR HX8075 ,7.5TONS RUBBER TRACK ,MINI EXCAVATOR
TRACK /RUBBER EXCAVATOR HX8075 ,7.5TONS RUBBER TRACK ,MINI EXCAVATOR
TRACK /RUBBER EXCAVATOR HX8075 ,7.5TONS RUBBER TRACK ,MINI EXCAVATOR
TRACK /RUBBER EXCAVATOR HX8075 ,7.5TONS RUBBER TRACK ,MINI EXCAVATOR
TRACK /RUBBER EXCAVATOR HX8075 ,7.5TONS RUBBER TRACK ,MINI EXCAVATOR
TRACK /RUBBER EXCAVATOR HX8075 ,7.5TONS RUBBER TRACK ,MINI EXCAVATOR
TRACK /RUBBER EXCAVATOR HX8075 ,7.5TONS RUBBER TRACK ,MINI EXCAVATOR
TRACK /RUBBER EXCAVATOR HX8075 ,7.5TONS RUBBER TRACK ,MINI EXCAVATOR
TRACK /RUBBER EXCAVATOR HX8075 ,7.5TONS RUBBER TRACK ,MINI EXCAVATOR
TRACK /RUBBER EXCAVATOR HX8075 ,7.5TONS RUBBER TRACK ,MINI EXCAVATOR
TRACK /RUBBER EXCAVATOR HX8075 ,7.5TONS RUBBER TRACK ,MINI EXCAVATOR
TRACK /RUBBER EXCAVATOR HX8075 ,7.5TONS RUBBER TRACK ,MINI EXCAVATOR
TRACK /RUBBER EXCAVATOR HX8075 ,7.5TONS RUBBER TRACK ,MINI EXCAVATOR
TRACK /RUBBER EXCAVATOR HX8075 ,7.5TONS RUBBER TRACK ,MINI EXCAVATOR
TRACK /RUBBER EXCAVATOR HX8075 ,7.5TONS RUBBER TRACK ,MINI EXCAVATOR
TRACK /RUBBER EXCAVATOR HX8075 ,7.5TONS RUBBER TRACK ,MINI EXCAVATOR
TRACK /RUBBER EXCAVATOR HX8075 ,7.5TONS RUBBER TRACK ,MINI EXCAVATOR
Specifications
Brand Name :
HXMG
Model Number :
HX8075
Certification :
ISO CE
Place of Origin :
CHINA
MOQ :
1 unit
Price :
28670USD
Payment Terms :
T/T, Western Union
Supply Ability :
100 UNITS PER MONTH
Delivery Time :
15 WORKING DATE
Packaging Details :
IN NUDE
Swing Speed :
0-11 rmp
Gradeablity :
35 °
Max Bucket Digging Force :
56 KN
Max Arm Digging Force :
38 KN
Engine Model :
4TNV94
Power / Revolution Speed :
35.9/2200KW/rpm
Operation Weight :
7500 kg
System Pressure :
27 Mpa
Bucket Capacity :
0.28 cbm
Description

Key attributes

Bucket capacity
0.28m3
Moving Type
Crawler Excavator
Engine Brand
Yanmar
Hydraulic Pump Brand
HXMG
Hydraulic Cylinder Brand
HXMG
Hydraulic Valve Brand
HXMG
UNIQUE SELLING POINT
High operating efficiency
Warranty
1 Year
Make
HXMG
Machinery Test Report
Not Available
Video outgoing-inspection
Provided
Color
Yellow, White
Core Components
Motor, Pressure Vessel, Engine, PLC, Pump, Bearing, Gear
Brand Name
HXMG
Machine Weight
7500 kg
Max Digging Radius
6182mm
Maximum Digging Depth
3898mm
Maximum Digging Height
7023mm
Place of Origin
Shandong, China
Power(W)
43KW
Rated Speed
4.5km/h
Product name
7.5 Ton Crawler Excavator
Color
Yellow or customized
overseas
Free spare parts
Keywords
Chinese Mini Excavator Digger
Video technical support
Online support
Feature
Earth-moving Machinery Mini Excavator
Customization
LOGO
Track width
400mm
Application
BuildingAgricultureConstruction
MOQ
1 Piece
ENGINE
Emission Standard
Euro V
Make /Model
KUBOTA(V2607)
Power /Rotation speed
43/2000
Number of cylinder
4
TRACK SYSTEM
Maximum Travel speed
2.5/4.5km/h
Width of track shoe
450mm
Number of track shoe per side
39pcs
Number of upper roller per side
1
Number of bottom roller per side
5
PERFORMANCE PARAMETERS
Standard Bucket capacity
0.28m³
Swing speed
11rpm
Maximum Grade ability
35°
Maximum Bucket digging force
56KN
Maximum Arm digging force
38KN
Hydraulic system pressure
27Mpa
Machine weight
7500kg
Fuel tank
120L
Hydraulic oil tank
100L
MACHINE SIZE
Overall dimension (L*W*H)
6054mm*2216mm*2672mm
Height of cabin
2672mm
Track length on ground(Axle base)
2209mm
Track gauge
1745mm
Minimum Ground clearance
375mm
Swing radius at tail
1730mm
WORKING RANGE
Maximum Digging height
7023mm
Maximum Dumping height
5195mm
Maximum Digging depth
3898mm
Maximum Vertical digging depth
2968mm
Maximum Digging radius
6182mm
Minimum swing radius
1740mm
Maximum Lifting height of blade
382mm
Maximum Cutting depth of blade
332mm
PRODUCT CONFIGURATION
- KUBOTA engine, 43kw/2000rpm, Euro V EPA
- Chinese pump, valves and motor
- Fully sealed cabin with A/C, LCD display, and LED lights
- Hydraulic joystick control system
- 450mm steel tracks & 0.28m³ bucket
- Hammer pipeline system
- Dozer blade included
TRACK /RUBBER EXCAVATOR HX8075 ,7.5TONS RUBBER TRACK ,MINI EXCAVATOR
TRACK /RUBBER EXCAVATOR HX8075 ,7.5TONS RUBBER TRACK ,MINI EXCAVATOR
Left-side
TRACK /RUBBER EXCAVATOR HX8075 ,7.5TONS RUBBER TRACK ,MINI EXCAVATOR
Middle
TRACK /RUBBER EXCAVATOR HX8075 ,7.5TONS RUBBER TRACK ,MINI EXCAVATOR
Right-side
FEATURES AT A GLANCE
TRACK /RUBBER EXCAVATOR HX8075 ,7.5TONS RUBBER TRACK ,MINI EXCAVATOR
