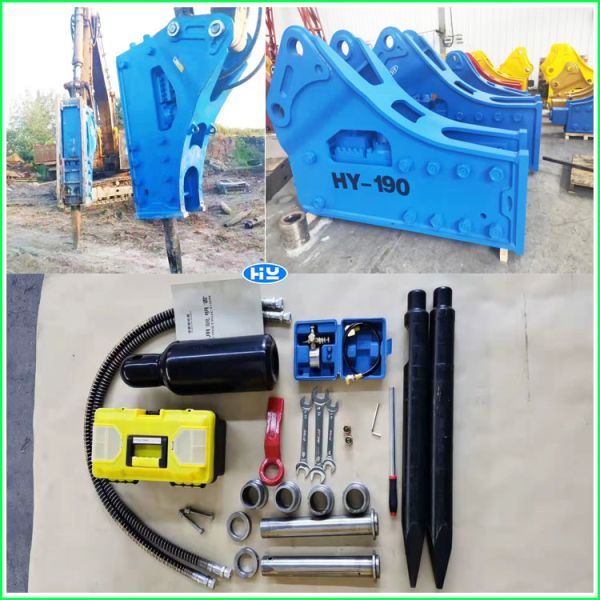

180 L/MIN Hydraulic Excavator Breaker Hammer 5.51 Inch Chisel Back Head
180 L/MIN Hydraulic Excavator Breaker Hammer 5.51 Inch Chisel Back Head
Specifications
Brand Name :
HANYUN
Model Number :
140mm chisels
Certification :
CE/ISO
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, , T/T, D/A, D/P
Supply Ability :
5000 sets per year
Delivery Time :
5-15 working days
Packaging Details :
Exported packages/fumigation-free plywood box
Item :
Hydraulic Excavator Breaker
Breaker chisel diameter :
140mm
Breaker chisel size :
5.51 inch
Soft hose diameter :
1 inch/25.4mm
Driving oil pressure :
190-230kg/cm2
Hydraulic oil flow :
120-180 L/MIN
Applicable carrier :
Hydraulic excavator, loader, backhoe and skid steer
Technical support :
Online support, video support
Description

Quality Hydraulic Excavator Breaker With Front Head Middle Cylinder And Back Head

(1) Main technical parameters on hydraulic excavator breaker with 140mm breaker chisels

Model HY140
Breaker shell (KGS) 800
Total weight (KG) 1700
Size (MM) 1660*530*1280
Driving oil pressure (KG/CM2) 190-230
Driving oil flow (L/MIN) 120-180
Striking(BPM) 350-500
Soft hose diameter (INCH) 1
Breaker chisel diameter (MM) 140
Breaker chisel weight (KG) 130
Applicable carrier weight (T) 19-25

(Different size and types could also be customized to suit different demands)

(2) Standard details on 140mm hydraulic breaker chisels

Model: HYQG140

Breaker chisel diameter: 140mm

Breaker chisel length: 1300mm

Weight: 130KGS

Applicable vehicle weight: 19-25t

(3) Main details on front head and back head of breaker main body

Front head SB81 688*257*306MM
Back head SB81 353*257*350MM
Hydraulic breaker piston 140(-0.06)*150.5(-0.05)*138(0.05)MM /Total length 790MM

180 L/MIN Hydraulic Excavator Breaker Hammer 5.51 Inch Chisel Back Head
