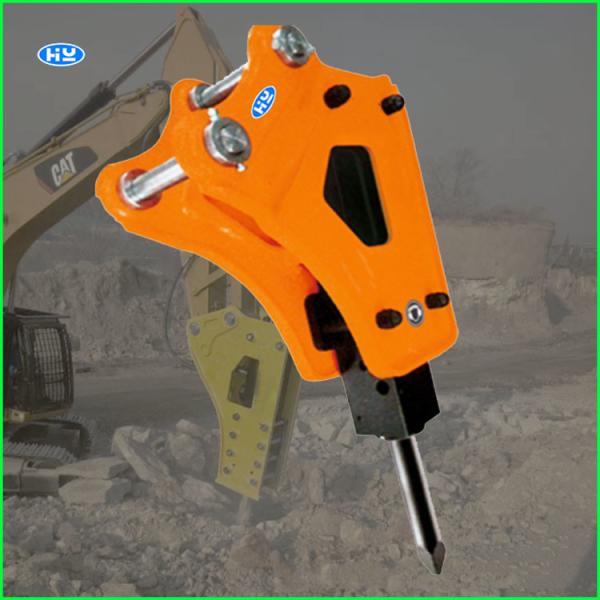

100mm Chisels 40Cr Hydraulic Excavator Breaker 0.75 Inch Hose Impact Rock Breaker
100mm Chisels 40Cr Hydraulic Excavator Breaker 0.75 Inch Hose Impact Rock Breaker
Specifications
Brand Name :
HANYUN
Model Number :
100mm chisels
Certification :
CE/ISO
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, , T/T, D/A, D/P
Supply Ability :
5000 sets per year
Delivery Time :
5-15 working days
Packaging Details :
Exported packages/fumigation-free plywood box
Item :
Hydraulic Impact Rock Breaker
Breaker chisel diameter :
100mm
Breaker chisel materials :
40Cr
Soft hose diameter :
0.75 inch
Driving oil pressure :
150-170kg/cm2
Hydraulic oil flow :
80-110 L/MIN
Quality warranty :
1 year
Technical support :
Online support, video support
Description

100mm Chisels Excavator Impact Hammer Hydraulic Impact Rock Breaker

(1) Please select one suitable hydraulic impact rock breaker according to below details

Hydraulic breaker

model

 Overall size (L*W*H)(MM)

Total weight/

Shell weight

(KGS)

Breaker chisel diameter (MM)/

Weight (KGS)

Applicable carrier weight

(T)
HY45 750*270*480 102/40 45/ 8 1.2-3.0
HY53 830*290*570 140/60 53/12 2.0-4.0
HY68 950*330*700 264/100 68/16 4.0-7.0
HY75 1140*370*740 345/200 75/22 6.0-9.0
HY85 1270*370*800 493/400 85/48 7-14
HY100 1340*430*970 736/450 100/50 11-16
HY120 1475*530*1000 1374/500 120/120 12-18
HY135 1610*530*1280 1663/600 135/125 18-23
HY140 1660*530*1280 1700/800 140/130 19-25
HY155 1900*635*1350 2635/1450 155/190 25-30
HY165 2010*650*1420 3350/1500 165/220 30-36
HY175 2310*715*1630 4102/1700 175/660 36-42
HY185 2240*750*1620 4950/2100 185/300 42-48
HY195 2460*750*1670 5260/2300 195/340 48-55
HY210 3660*864*1945 6814/3550 210/390 60-80

(2) Applicable excavator brand

Excavator

brand

HY100

hydraulic impact rock breaker
HYUNDAI RB130-7/RB175
DOOSAN DAEWOO DH130/150/170
KOMATSU PC120/150/PW150
HITACHI

ZX100/130W/150/100WD/

160WD
KOBELCO SK100/120
VOLVO EC120/140
CAT 212/213/214/E110
SANY

SY135C-8/

SY155H
STRONG JCM916D/GC138/JCM913D/MC136-9
LINGONG LG6150E
XGMA 140-8
XCMG 150
SUNWARD SWE90/125/130/150
ZOOMLION ZE150E
