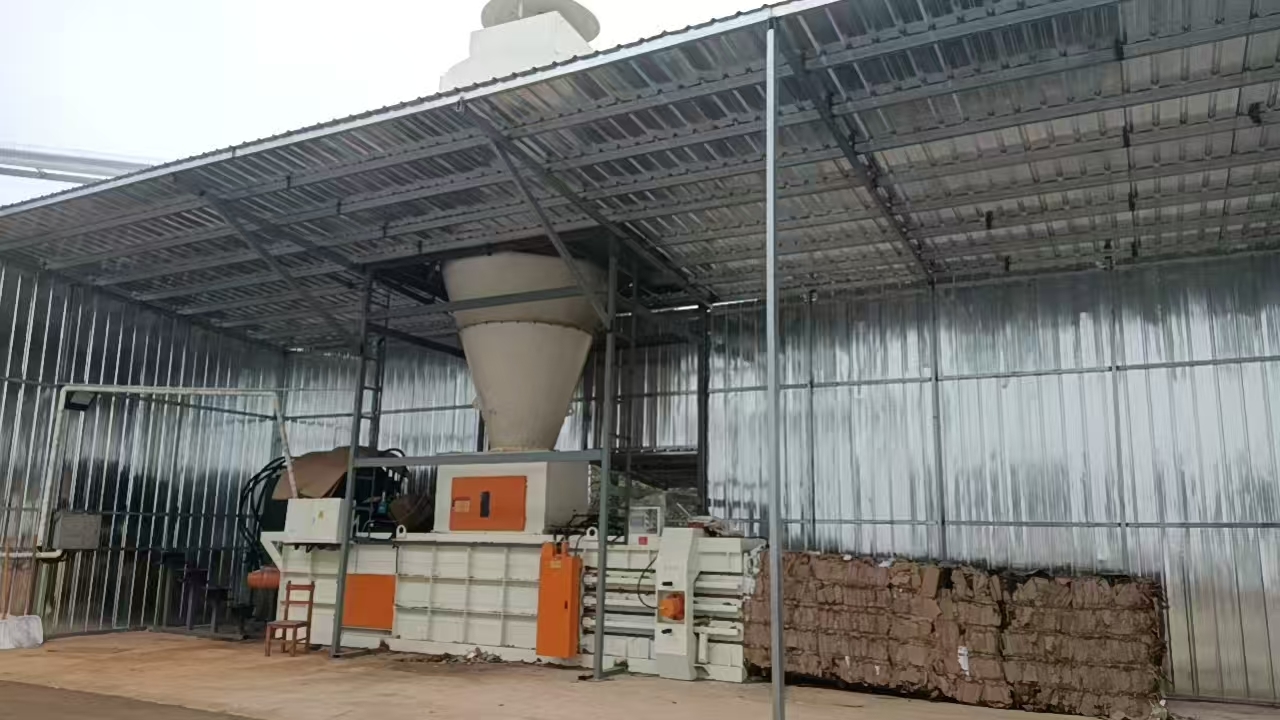

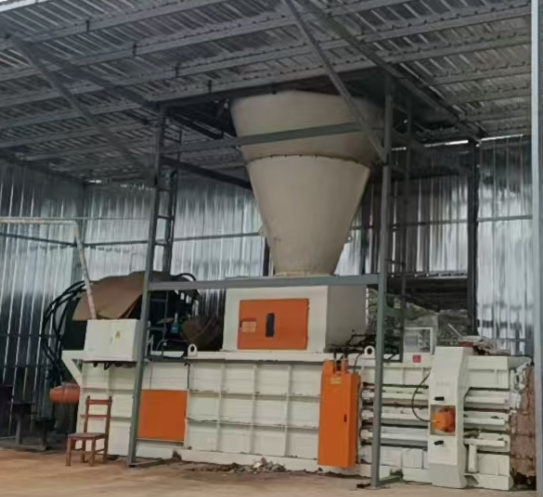

Hydraulic Baler Machine With Horizontal Feeding Mechanism And Anti Roll Limiting
Hydraulic Baler Machine With Horizontal Feeding Mechanism And Anti Roll Limiting
Specifications
Model Number :
HUAWEI 60T
PLC :
Delta
Delivery Time :
20 workingdays
Supply Ability :
30set monthly
Price :
negotiation
Packaging Details :
wooden
Design system pressure :
20Mpa
Payment Terms :
T/T
power source specification :
3PH380V
Place of Origin :
CHINA
Bearing :
Haerbin
MOQ :
1
Oil Pump model :
VQ35/25
Brand Name :
HUAWEI
Machine Weight :
15T
Description

Book Scrap Baler with Horizontal Feeding Mechanism and Anti-Roll Limiting for Heavy-Duty Waste Paper Baling

Book Scrap Baler
Core Product Advantages
  • Specifically designed to optimize the structure of paper rolls with a horizontal feeding mechanism, compatible with round paper rolls and waste paper rolls
  • Equipped with an anti-roll limiting mechanism that prevents the paper roll from rolling or shifting during the packaging process, thereby avoiding collapse of the paper roll or damage to the core cylinder
  • Results in finished packages that are neatly and square-shaped
Heavy-Duty Construction

The entire unit is fabricated using thick steel plates welded together. The inner walls of the material chamber undergo wear-resistant reinforcement treatment to withstand repeated impacts and compression from paper rolls without deformation.

Ideal for continuous 7×24-hour factory production, thereby reducing downtime for maintenance.

High-Efficiency Hydraulic System

Utilizes brand-name oil pumps, cylinders, and sealing components. Features adjustable pressure settings designed to provide gentle, cushioned compression for paper materials, ensuring optimal package density while preventing excessive fragmentation of paper rolls.

Equipped with an overload relief safety mechanism, resulting in a low failure rate.

Multiple Tying Modes

Semi-automatic models require manual threading and tying, offering low initial investment costs. Fully automatic models are equipped with an automatic PP tape tying system, eliminating the need for manual labor, enabling continuous bag output, and reducing labor costs—making them ideal for high-volume production lines.

main oil cylinder pressure

300

Pressure

200T

Hydraulic system operating pressure

22MPA

Feed Opening size

1100*2200

Bale Size

W1100*H1250*( L can be adjustable )

Bale Density

≥500KG-650KG/mз
