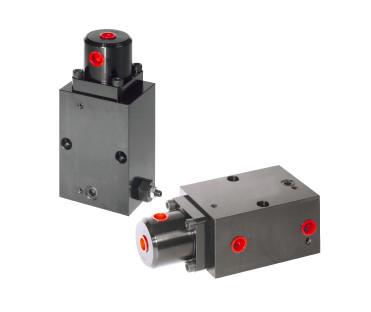

High Strength Steel Hydraulic Pressure Intensifier / High Pressure Intensifier
High Strength Steel Hydraulic Pressure Intensifier / High Pressure Intensifier
Specifications
Brand Name :
Jiayan
Model Number :
RB-5x35
Certification :
ISO9001:2008
Place of Origin :
Dongguan China
MOQ :
1 pc
Price :
Negotiable
Payment Terms :
L/C, Western Union, T/T,PalPal
Supply Ability :
500 pcs per week
Delivery Time :
6 days
Packaging Details :
poly bag and carton box
Material :
Carbon Steel
Surface :
Oxidizing Blackening
Max. Operation Pressure :
50kg/cm2
Pressure Increase Times :
5 times
High Pressure Output Flow :
35cc
Item Code :
RB-5x35
Description

High Strength Steel Hydraulic Pressure Multiplier Pressure Increasing 5 Times

Product Instruction

1.Pressure set at 30 kgf/cm2 before shipment.

2.The intensifier is essentially a hydraulic amplifier. In a hydraulic system, if the entire system requires low pressure ,but a branch system requires high pressure, an intensifier can be used to make the system's branch oil circuit or an actuator obtain high oil pressure which is several times (2-7 times) higher than the working pressure of the hydraulic pump to meet the needs of the branch working mechanism, without having to separately set the expensive high-pressure oil pump. The system still works at a lower pressure, so It can reduce energy consumption and reduce equipment costs.

3. The increasing pressure times is 5 times

High Strength Steel Hydraulic Pressure Intensifier / High Pressure Intensifier

High Strength Steel Hydraulic Pressure Intensifier / High Pressure Intensifier

A B C D E1 E2 F1 F2 F3 H K M N
210 139 71 58 82 95 62 80 70 9 9 14 96

Item Code: RB-5x35

Pressure Increasing Times: 5 times

High Pressure Output Flow : 35cc
