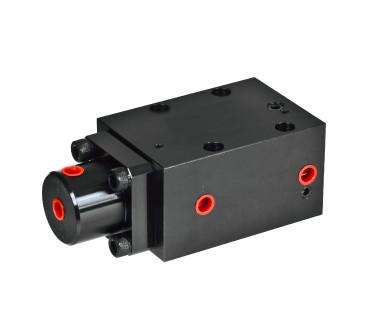

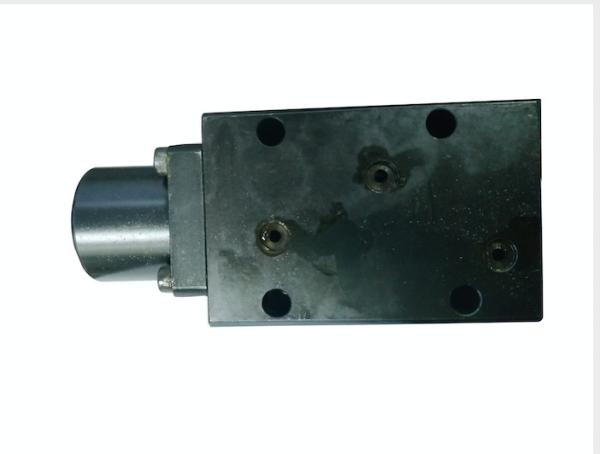

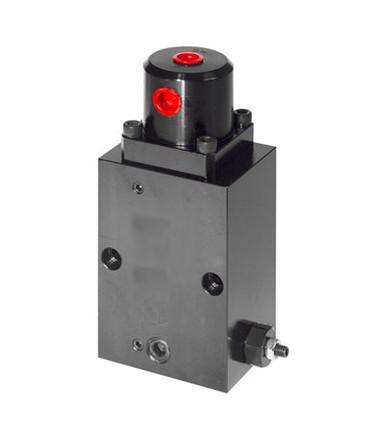

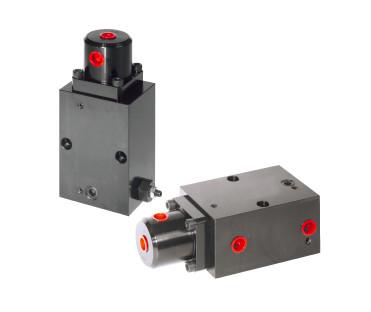

Booster Hydraulic Pressure Multiplier 3.2 Times Pressure Increasing
Booster Hydraulic Pressure Multiplier 3.2 Times Pressure Increasing
Booster Hydraulic Pressure Multiplier 3.2 Times Pressure Increasing
Booster Hydraulic Pressure Multiplier 3.2 Times Pressure Increasing
Booster Hydraulic Pressure Multiplier 3.2 Times Pressure Increasing
Booster Hydraulic Pressure Multiplier 3.2 Times Pressure Increasing
Booster Hydraulic Pressure Multiplier 3.2 Times Pressure Increasing
Booster Hydraulic Pressure Multiplier 3.2 Times Pressure Increasing
Specifications
Brand Name :
Jiayan
Model Number :
HB-M3.2x25
Certification :
ISO9001:2008
Place of Origin :
Dongguan China
MOQ :
1 pc
Price :
Negotiable
Payment Terms :
L/C, Western Union, T/T,PayPal
Supply Ability :
500 pcs per week
Delivery Time :
7 days
Packaging Details :
poly bag and carton box
Material :
Carbon steel
Surface Treatment :
Oxidizing Blackening
Max. Operation Pressure :
50kg/cm2
Pressure Increase Times :
3.2 times
High Pressure Output Flow :
25 cc
Item Code: :
HB-M3.2x25
Description

Hydraulic Booster Machining Center Cylinder Pressure intensifier Pressure Increasing 3.2 Times

Product Specification and features

This hydraulic booster has a sequential valve inside. When it oils the cylinder actutor , the sequential valve will be activated if the presetted pressure is reached , and then multiple times pressure is generated.

The increasing pressure times of this item is 3.2 times

Application

This booster is used in such situation , that some hydraulic cylinders need high operation pressure

in the low pressure circuit of hydraulic equipments and machining center fixtures. The hydraulic booster can be activated by solenoid valve in the hydraulic circuit , and then the low oil pressure is changed into high oil pressure automatically.

Booster Hydraulic Pressure Multiplier 3.2 Times Pressure Increasing

Booster Hydraulic Pressure Multiplier 3.2 Times Pressure Increasing

Booster Hydraulic Pressure Multiplier 3.2 Times Pressure Increasing

Item Code: HB-M3.2x25

Operation Pressure Range :30-200kg/cm2

Pressure Increasing Times:3.2

High pressure output flow : 25cc
