Hydraulic Work Support Cylinder Flanged Base Threaded Cylinder 12mm Rod Stroke
Hydraulic Work Support Cylinder Flanged Base Threaded Cylinder 12mm Rod Stroke
Specifications
Brand Name :
Jiayan
Model Number :
HSP-25A/B
Certification :
ISO9001:2008
Place of Origin :
Dongguan China
MOQ :
1 pc
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union,PayPal
Supply Ability :
1000 set per week
Delivery Time :
7 days
Packaging Details :
plastic bag and carton box
Material :
Carbon Steel
Rod :
25mm
Rod Stroke :
12mm
Min.Pressure :
100kg/cm2
Rod force of Touching Work-piece :
3kg-5kg
Supporting Force :
2000kgs
Description

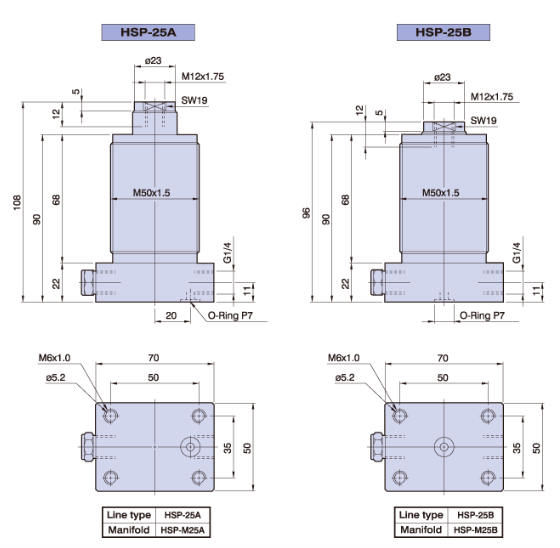

Hydraulic Work Support Cylinder Flanged Base Threaded Cylinder

Product Specification and features:

Mode: HSP-25A/HSP-25B

Rod Diameter: 25mm

Rod Stroke:12mm

Min. Pressure:100kg/cm2

Rod force of touching work-piece:Min=3kg Max=5kg

Supporting Force: 200kg

Type A:Spring ejecting type

Type B:Hydraulic ejecting type

Hydraulic Work Support Cylinder Flanged Base Threaded Cylinder 12mm Rod Stroke
