High Pressure Hydraulic Work Support , Threaded Portable Work Support
High Pressure Hydraulic Work Support , Threaded Portable Work Support
High Pressure Hydraulic Work Support , Threaded Portable Work Support
High Pressure Hydraulic Work Support , Threaded Portable Work Support
Specifications
Brand Name :
Jiayan
Model Number :
RSP
Certification :
ISO9001:2008
Place of Origin :
Dongguan China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, Paypal
Supply Ability :
400 sets per week
Delivery Time :
7 days
Packaging Details :
poly bag and carton box
Material :
Carbon Steel
Max. Operation Pressure :
250kg/cm2
Clamping Stroke :
8mm
Bore of cylinder :
16
acting type :
single acting
clamping force :
320kgf
warranty :
1 year (change new one for free)
Description

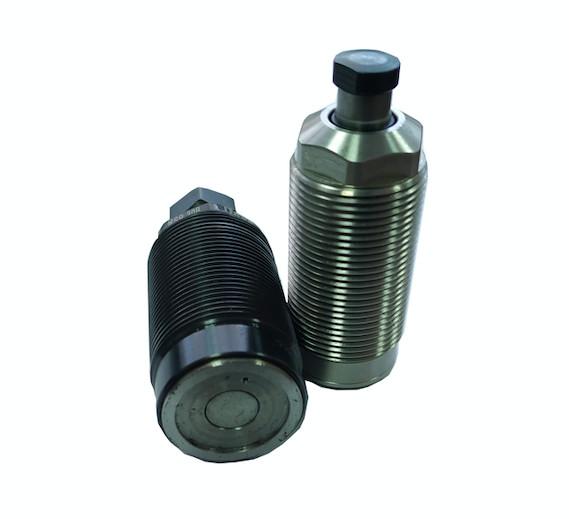

High Pressure Hydraulic Work Support Anticorrosive Cylinder Surface Threaded Cylinder for Simple Mounting

Features:

1.Type A: Underward Clamping Support. At the initial position, the support head is at the uppermost end under the action of the internal spring. When working, the workpiece is pressed down by gravity of workpiece to make support head synchronously downward. When the workpiece is placed securely, the support head stop going down. After the air pressure is applied, the support cylinder is locked to provide support for the workpiece and stop running.


2. Type B: Upward Clamping Support. At the initial position, the support head is at the lowermost end. After the workpiece is placed, the support cylinder is pressurized to extend the support head. When the workpiece is touched by the support head, the support head stops immediately and the support cylidner is pressurized to be locked. Then the support head provides support and stops at the current position.

Attention:

1.Supporting force should match the support of the swing clamp if work support works with swing clamp togeher .Supporting force is at least 150% of the clamping force of a single swing clamp.

2.Do not exceed the maximum flow rate to avoid premature locking.
3.Place the support cylinder in the middle position
4.Install as perpendicular to the work surface as possible, and do not tilt more than 10°.

Ordering Code:

RSP-16-A

1 2 3

Specifications Table

Type RSP-16A RSP-16B
Operation Pressue Range(KGF/CM2) 100-250
Clamping Stroke(MM) 8
Bore of cylinder (MM) 16
supporting force(kgf)/operation force(kgf/cm2) 320/200
Acting Type Single Acting

High Pressure Hydraulic Work Support , Threaded Portable Work Support

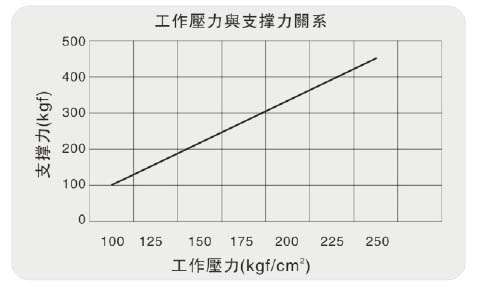

Chart of Operation force and supporting force

High Pressure Hydraulic Work Support , Threaded Portable Work Support

Operation Force

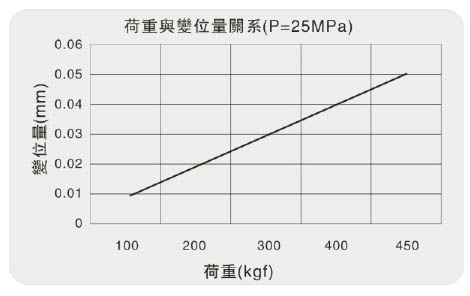

The chart of loading weight and addendum modification

High Pressure Hydraulic Work Support , Threaded Portable Work Support
