Three Mounting Hydraulic Workholding Clamping Fixture Max Clamping Force 2880kg
Three Mounting Hydraulic Workholding Clamping Fixture Max Clamping Force 2880kg
Specifications
Brand Name :
Jiayan
Model Number :
HPS
Certification :
ISO9001:2008
Place of Origin :
Dongguan China
MOQ :
1 set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
300 sets per week
Delivery Time :
7 days
Packaging Details :
inner ploy bag and outer carton box
Material :
high strength Steel
Max. operating pressure :
250 kgf/cm2
Min. operating pressure :
70 kgf/cm2
Acting Type :
Single acting and double acting
Rotating direction :
Turn right R or turn left L
Rotating angle :
Standard angle 90°(±2°)
Warranty :
1 year ( change for free)
Description

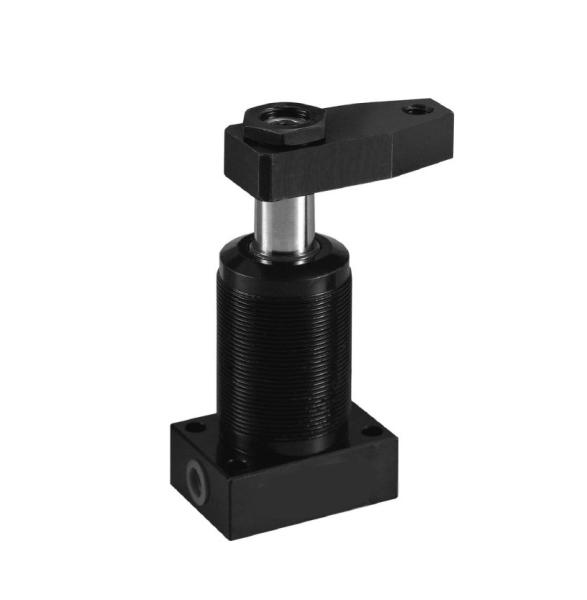

High Pressure Hydraulic Swing Clamp HPS Max Clamping Force 2880kg Max Stroke 27 World Class Oil Seal Three Mounting type

FEATURES


1. This series of swing clamp cylinder is ideal for workpiece clamping which requires a sufficient space for convenient workpiece loading and unloading and high pressure clamping.
2. It provides swing motion and vertical holds down motion.
3. Please don’t clamp workpiece during the swing motion
4. The swing clamp cylinder employs Germany oil seal and imported parts.

5. The inside surface of cylinder barrel is specially treated,featuring maximum smoothness, high performance and long service life.
6. Do not exceed oil feeding speed to avoid too high swing speed.
7. ln case improper swing speed occurs,it is suggested to equip with an additional oil flow control valve to reduce oil feeding speed.
Max. operating pressure: 250 kgf/cm2
Min. operating pressure: 70 kgf/cm2
Single acting and double acting

NOTE
For customized clamp arm, please don't exceed 1.5 times of the original length and weight.

ORDERING INDICATION HPS – 25 S A R×90 – P

HPS

Series

HPS

25

Bore of cylinder

Φ25,Φ32,Φ40,Φ50,Φ63

S

Acting type

S: Single acting

D: Double acting

A

Mounting type

A Threaded type

B Line type
C Manifold type

R

Rotating direction

Turn right R or turn left L

90

Rotating angle

Standard angle 90°(±2°)

Optional angle 30°(±2°),45°(±2°),60°(±2°)

P

Precision position

Add locating pin design to improve the repeat precision of rotation angle
