Rigid Hydraulic Swing Clamp , Rotary Clamp Cylinder ISO9001 Certification
Rigid Hydraulic Swing Clamp , Rotary Clamp Cylinder ISO9001 Certification
Specifications
Brand Name :
Jiayan
Model Number :
HSC
Certification :
ISO9001:2008
Place of Origin :
Dongguan China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, Paypal
Supply Ability :
500 sets per week
Delivery Time :
7 days
Packaging Details :
poly bag and carton box
Material :
carbon steel
Type :
Piping or Manifold
Operation pressure range :
15-70kgs
Max Clamping force :
647kgs
Max.Stroke :
50mm
Warranty :
1 year (change new one for free)
Description

Hydraulic Swing Clamp Casting Engineer Cover Processing Rotary Clamp Cylinder

Product advantages

1. High rigidity, double-guided design

2. Suitable for program control occasions

3. Can hold pressure for a long time

4. Good interchangeability and versatility

5. High precision of movement and repeat positioning, up to 500,000 times, and can be re-installed

6. Using the professional oil seal and 3-slot swing rod, the piston and theswing rod are all integrated forming technology, and the stability is better.

Precautions

1. When the the length of clamping arm needs to be increased , please do not exceed 1.5 times the original length.

2. Note that the operating pressure is less than the maximum rating.

3. Before use, ensure that the intake hydraulic source is cleaned to avoid the damage on the seal

4. The product must be installed on a flat surface, otherwise it will lead to poor precision, leakage and other conditions.

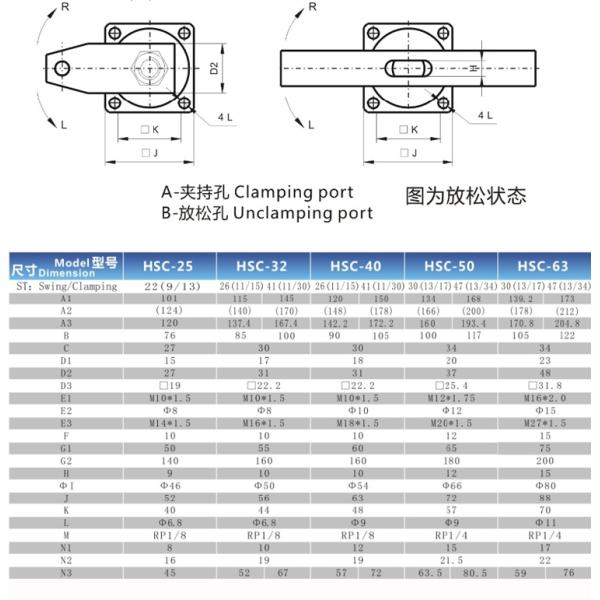

Product Information

Product Name HSC Swing Clamp
Content Parameter
Bore of cylinder (mm) Φ25 Φ32 Φ40 Φ50 Φ63
Diameter of piston rod (mm) Φ18 Φ20 Φ22.4 Φ28 Φ35
Swing Stroke (mm) 9 11 11 13 13
Clamp stroke Std/Ext (mm) 13 15/30 15/30 17/34 17/34
Pressure area pull/Push (CM2) 2.37/4.91 4.9/8.04 8.63/12.57 13.47/19.63 21.55/31.17
Theoretical clamping force (3kg/CM2) 71 147 259 404 647

Max operation pressure

(kg/ CM2)

 100 100 100 100 100

Operation pressure range

(kg/CM2)

 15-70 15-70 15-70 15-70 15-70
