High Strength Pneumatic Link Clamp RBLU Max Force 18.2 Kn Multiple Arms
High Strength Pneumatic Link Clamp RBLU Max Force 18.2 Kn Multiple Arms
Specifications
Brand Name :
Jiayan
Model Number :
RBLU
Certification :
ISO9001:2008
Place of Origin :
Dongguan
MOQ :
1 set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
360 sets per week
Delivery Time :
7 days
Packaging Details :
inner poly bag and outer carton box
Material :
Carbon Steel
Max Clamping Force :
18.2 kN
Min Clamping Force :
2.6 kN
Max Operation Pressure :
7Mpa
Min Operation Pressure :
1Mpa
Max Withstanding Force :
10.5Mpa
Work Temperature :
-10~+70°C
Warranty :
1 year ( change new for free)
Description

High Strength Pneumatic Link Cylinder RBLU Max Force 18.2 Kn Multiple Clamping Arms Machining Tool Jig

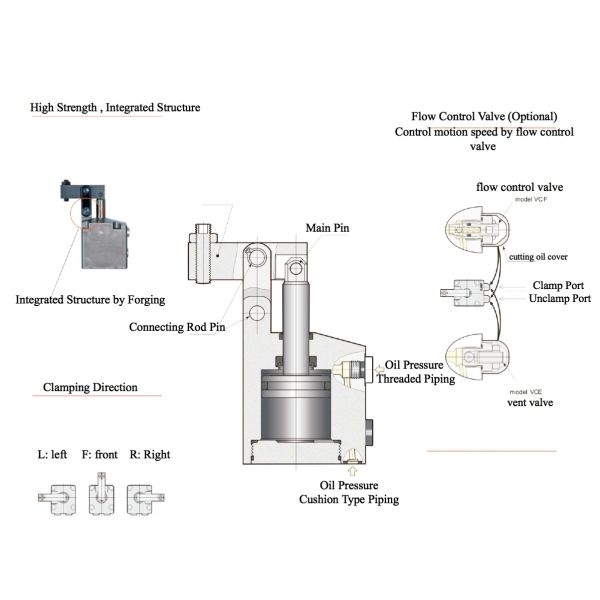

Features:

1. High Strength and integrated structure

2. Forged connecting rod supporting part

3.3 clamping arm directions

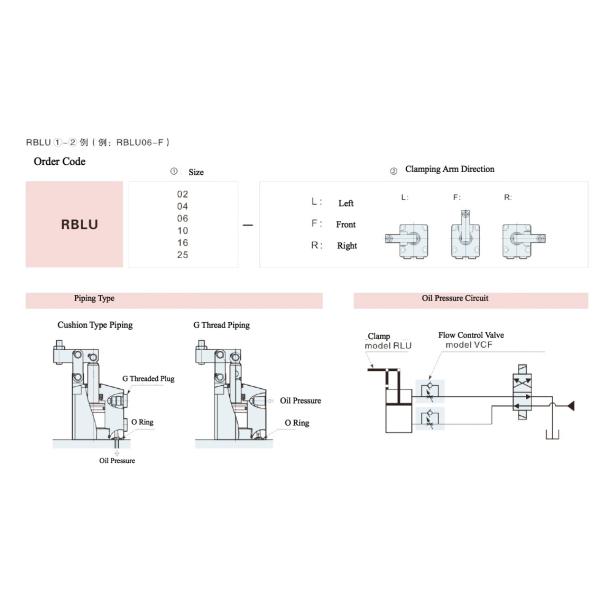

4.2 type piping methods

5.customized products are available by customer's requirements

High Strength Pneumatic Link Clamp RBLU Max Force 18.2 Kn Multiple Arms

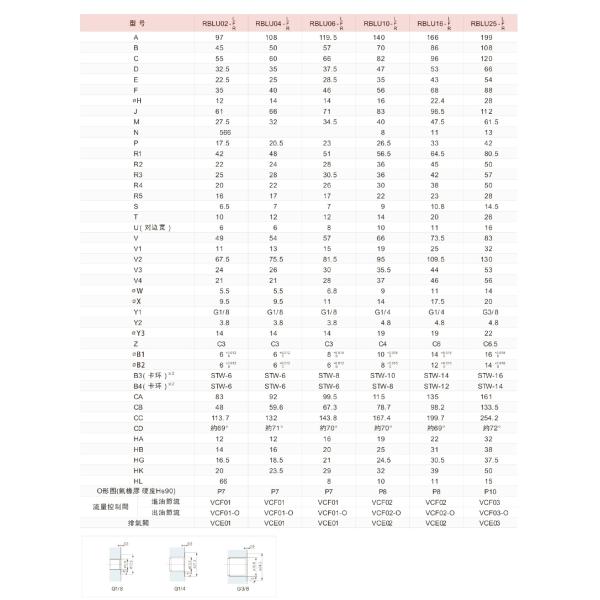

Model RBTLU02 RBTLU04 RBTLU06 RBTLU10 RBTLU16 RBTLU25
Cylinder Force (Under oil pressure 7Mpa) (kN) 3.4 5.0 6.7 10.6 17.2 26.9
Clamping Force (kN) 2.6 3.5 4.4 7.3 12.1 18.2
Clamping arm Length (mm) 36.5 42 50 56.5 69.5 87.5
Bore of cylinder (mm) 25 30 35 44 56 70
Dia. of Piston Rod (mm) 12 14 14 16 22.4 28
Piston Area Clamping (cm2) 4.9 7.1 9.6 15.2 24.6 38.5
Total stroke (mm) 20.5 23.5 26 29.5 36 45
Clamping stroke (mm) 17.5 20.5 23 26.5 33 42
Stroke Clear 3 3 3 3 3 3
Max Flow Rate (L/M) 1.0 1.6 2.6 4.7 9.5 18.9
Cylinder Capacity Clamp (cm3) 10.0 16.7 25.0 44.8 88.6 173.3
Unclamp (cm3) 7.7 13.0 21.0 38.9 74.5 145.5
Weight (kg) 1.0 1.4 1.9 3.2 5.3 9.7

High Strength Pneumatic Link Clamp RBLU Max Force 18.2 Kn Multiple Arms

High Strength Pneumatic Link Clamp RBLU Max Force 18.2 Kn Multiple Arms

High Strength Pneumatic Link Clamp RBLU Max Force 18.2 Kn Multiple Arms

High Strength Pneumatic Link Clamp RBLU Max Force 18.2 Kn Multiple Arms
