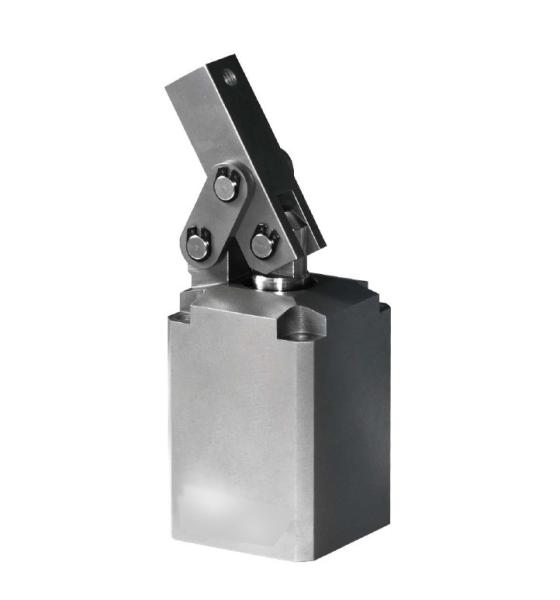

Hydraulic Link Clamp Cylinder High Tightness Max Clamping Force 1553kgs Pascal Type
Hydraulic Link Clamp Cylinder High Tightness Max Clamping Force 1553kgs Pascal Type
Specifications
Brand Name :
Jiayan
Model Number :
CBLU
Certification :
ISO9001:2008
Place of Origin :
Dongguan China
MOQ :
1 set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
300 sets per week
Delivery Time :
7 days
Packaging Details :
inner poly bag and outer carton box
Material :
Carbon Steel
Max.operating pressure :
70 kgf/cm2
Min.operating pressure :
10 kgf/cm2
Max Clamping Force :
1553 kgs
Temperature Range :
-10~+70°C
Warranty :
1 year (change new for free)
Description

Hydraulic Lever Clamp Cylinder Simple Mounting Type High Tightness Max Clamping Force 1553kgs

FEATURES:

This series product with the optimal design, so the clamping capacity is better than the traditional product.
The integrated structure product was made more compact and strengthful
Product with special dust proof design, dust proof and sealing have been improved,
so it has high sealing performance.
Product with the box-type design for convenient mounting
Max.operating pressure :70 kgf/cm2
Min.operating pressure :10 kgf/cm2

NOTE
The flow control valve is recommended

ORDER Code:

CBLU – 30 C L

CBLU

Series

CBLU

30

Bore of Cylinder Φ 25 , Φ 30 , Φ 35 , Φ 45 Φ 55 , Φ 70

C

Piping Type

Blank: line type

C: manifold with flow type

L

Clamping arm direction

Blank: standard

L:Left R:Right
